Toyota Corolla Cross: Right Side Restraints Sensor 5 Signal Below Allowable Range (B009E84)
DESCRIPTION
|
DTC No. | Detection Item |
DTC Detection Condition | Trouble Area |
Warning Indicate | Test Mode / Check Mode |
|---|---|---|---|---|---|
|
B009E84 | Right Side Restraints Sensor 5 Signal Below Allowable Range |
Either condition is met:
|
| Comes on |
Not applicable |
|
Vehicle Condition | |||
|---|---|---|---|
|
Pattern 1 | Pattern 2 | ||
|
Diagnosis Condition | Ignition switch ON |
○ | ○ |
|
Malfunction Status | Side airbag pressure sensor RH malfunction |
○ | - |
|
Airbag ECU assembly malfunction |
- | ○ | |
|
Detection Time | - |
- | |
|
Number of Trips | 1 trip |
1 trip | |
HINT:
DTC will be output when conditions for either of the patterns in the table above are met.

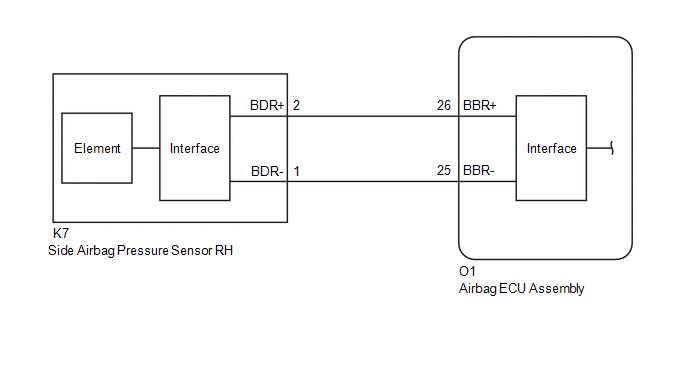

WIRING DIAGRAM
.png)
CAUTION / NOTICE / HINT
NOTICE:
- After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.
Click here
.gif)
HINT:
When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.
Click here
- After replacing the airbag ECU assembly, refer to initialization.
Click here
PROCEDURE
|
1. | CHECK SIDE AIRBAG PRESSURE SENSOR RH |
| (a) Turn the ignition switch off. |
|

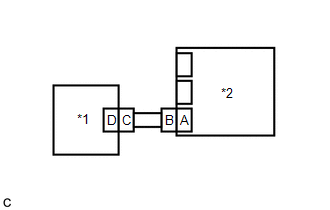

.png)
(b) Disconnect the cable from the negative (-) battery terminal.
CAUTION:
Wait at least 60 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
(c) Interchange the side airbag pressure sensor RH with LH and connect the connectors.
(d) Connect the cable to the negative (-) battery terminal.
(e) Turn the ignition switch to ON, and wait for at least 60 seconds.
(f) Clear the DTCs stored in memory.
Body Electrical > SRS Airbag > Clear DTCs
|
.gif)
| 2. |
CHECK SIDE AIRBAG PRESSURE SENSOR RH |
(a) Turn the ignition switch off.
(b) Turn the ignition switch to ON, and wait for at least 60 seconds.
(c) Check for DTCs.
Body Electrical > SRS Airbag > Trouble Codes| Result |
Proceed to |
|---|---|
| B009E84 is output |
A |
| B009B84 is output |
B |
| B009B84 and B009E84 are not output |
C |
HINT:
Codes other than DTCs B009E84 and B009B84 may be output at this time, but they are not related to this check.
(d) Turn the ignition switch off.
(e) Disconnect the cable from the negative (-) battery terminal.
CAUTION:
Wait at least 60 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
(f) Return the side airbag pressure sensor RH and LH to their original positions and connect the connectors.
| A |
.gif) | REPLACE AIRBAG ECU ASSEMBLY |
| B |
| REPLACE SIDE AIRBAG PRESSURE SENSOR RH |
| C |
| USE SIMULATION METHOD TO CHECK |
