Toyota Corolla Cross: Removal
REMOVAL
CAUTION / NOTICE / HINT

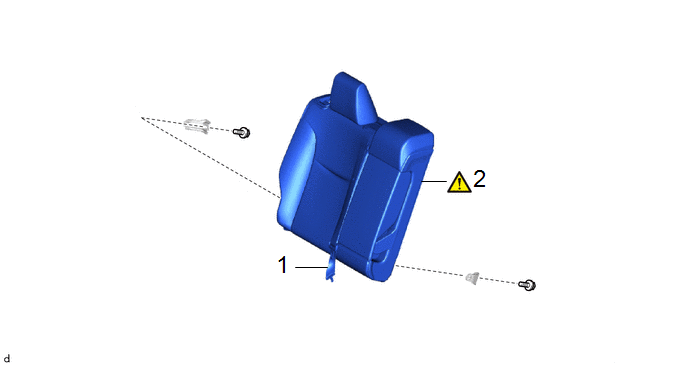

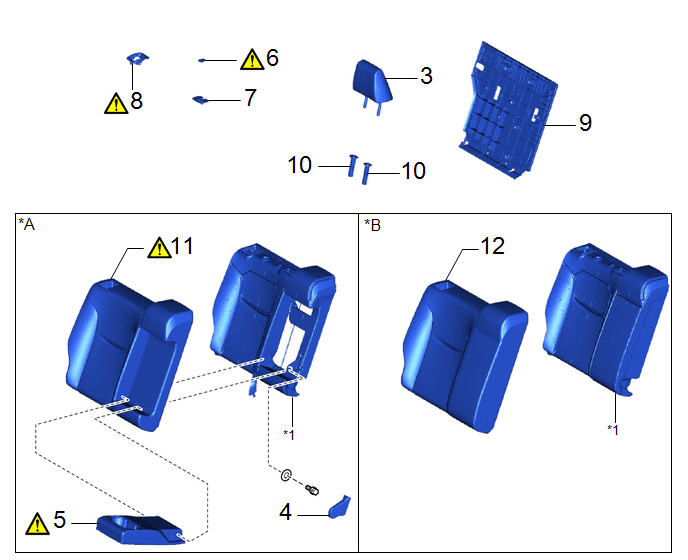

COMPONENTS (REMOVAL)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | REAR CENTER SEAT OUTER BELT ASSEMBLY |
73350C | - |
- | - |
|
2 | REAR SEATBACK ASSEMBLY RH |
- |
|
- | - |
|
Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
|
3 | REAR SEAT HEADREST ASSEMBLY |
71940A | - |
- | - |
|
4 | CENTER ARMREST HINGE COVER |
72868B | - |
- | - |
|
5 | REAR SEAT CENTER ARMREST ASSEMBLY |
72830 |
|
- | - |
|
6 | SEAT BELT ANCHOR COVER CAP |
73178A |
|
- | - |
|
7 | REAR SEAT SHOULDER BELT COVER |
73373 | - |
- | - |
|
8 | REAR SEATBACK UPPER LOCK BEZEL |
72667A |
|
- | - |
|
9 | REAR SEATBACK BOARD SUB-ASSEMBLY |
71701C | - |
- | - |
|
10 | REAR SEAT HEADREST SUPPORT |
71931 | - |
- | - |
|
11 | REMOVE SEPARATE TYPE REAR SEATBACK COVER |
71077S |
|
- | - |
|
12 | REMOVE SEPARATE TYPE REAR SEATBACK COVER |
71077S |
|
- | - |
|
*A | w/ Armrest |
*B | w/o Armrest |
|
*1 | SEPARATE TYPE REAR SEATBACK PAD |
- | - |
|
Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
|
13 | REAR SEATBACK FRAME SUB-ASSEMBLY |
71017 | - |
- | - |
|
14 | REAR CENTER SEAT OUTER BELT ASSEMBLY |
73350C | - |
- | - |
CAUTION / NOTICE / HINT
CAUTION:
Wear protective gloves. Sharp areas on the parts may injure your hands.
PROCEDURE

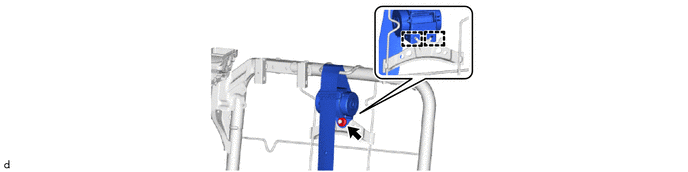

1. DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY
Click here .gif)
2. REMOVE REAR SEATBACK ASSEMBLY RH
|
|
Click here |
3. REMOVE REAR SEAT HEADREST ASSEMBLY
Click here
4. REMOVE CENTER ARMREST HINGE COVER (w/ Armrest)
Click here
5. REMOVE REAR SEAT CENTER ARMREST ASSEMBLY (w/ Armrest)
|
|
Click here |
6. REMOVE SEAT BELT ANCHOR COVER CAP
|
|
Click here |
7. REMOVE REAR SEAT SHOULDER BELT COVER
Click here
8. REMOVE REAR SEATBACK UPPER LOCK BEZEL
|
|
Click here |
9. REMOVE REAR SEATBACK BOARD SUB-ASSEMBLY
Click here
10. REMOVE REAR SEAT HEADREST SUPPORT
Click here
11. REMOVE SEPARATE TYPE REAR SEATBACK COVER (w/ Armrest)
|
|
Click here |
12. REMOVE SEPARATE TYPE REAR SEATBACK COVER (w/o Armrest)
|
|
Click here |

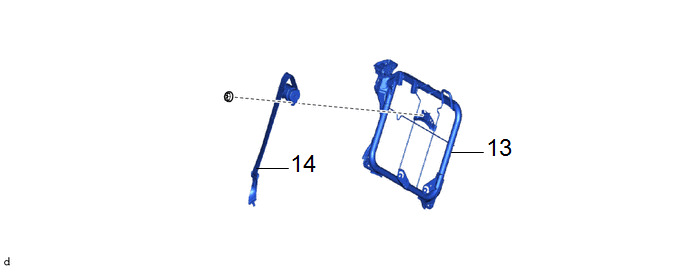

13. REMOVE REAR SEATBACK FRAME SUB-ASSEMBLY
Click here
14. REMOVE REAR CENTER SEAT OUTER BELT ASSEMBLY
