Toyota Corolla Cross: Installation
INSTALLATION
CAUTION / NOTICE / HINT

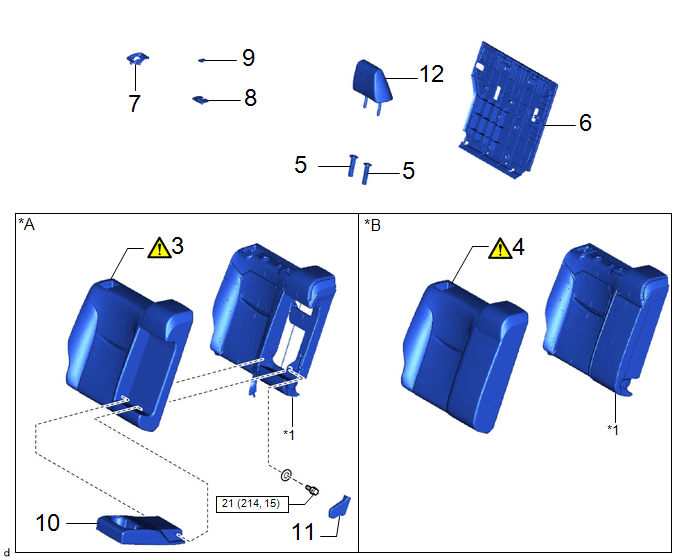

COMPONENTS (INSTALLATION)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|

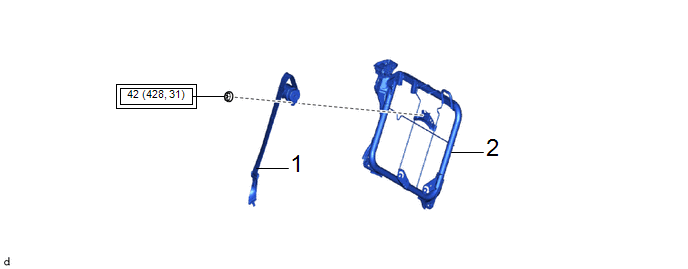

1 | REAR CENTER SEAT OUTER BELT ASSEMBLY |
73350C | - |
- | - |
|
2 | REAR SEATBACK FRAME SUB-ASSEMBLY |
71017 | - |
- | - |
.png) |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
- | - |
|
Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
|
3 | INSTALL SEPARATE TYPE REAR SEATBACK COVER |
71077S |
|
- | - |
|
4 | INSTALL SEPARATE TYPE REAR SEATBACK COVER |
71077S |
|
- | - |
|
5 | REAR SEAT HEADREST SUPPORT |
71931 | - |
- | - |
|
6 | REAR SEATBACK BOARD SUB-ASSEMBLY |
71701C | - |
- | - |
|
7 | REAR SEATBACK LOCK UPPER BEZEL |
72667A | - |
- | - |
|
8 | REAR SEAT SHOULDER BELT COVER |
73373 | - |
- | - |
|
9 | SEAT BELT ANCHOR COVER CAP |
73178A | - |
- | - |
|
10 | REAR SEAT CENTER ARMREST ASSEMBLY |
72830 | - |
- | - |
|
11 | CENTER ARMREST HINGE COVER |
72868B | - |
- | - |
|
12 | REAR SEAT CENTER HEADREST ASSEMBLY |
71940A | - |
- | - |
.gif)
|
*A | w/ Armrest |
*B | w/o Armrest |
|
*1 | SEPARATE TYPE REAR SEATBACK PAD |
- | - |
.png) |
N*m (kgf*cm, ft.*lbf): Specified torque |
- | - |
|
Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
|

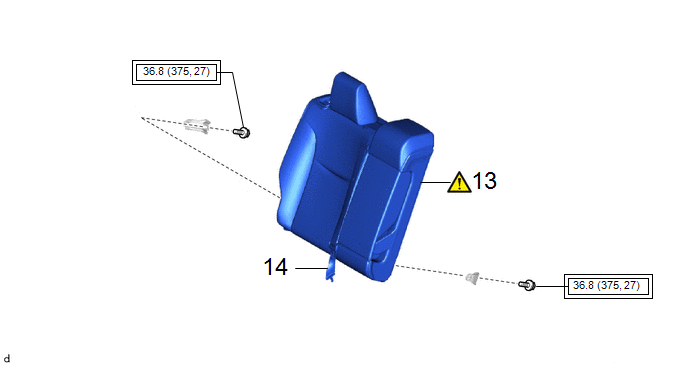

13 | REAR SEATBACK ASSEMBLY RH |
- |
|
- | - |
|
14 | REAR CENTER SEAT OUTER BELT ASSEMBLY |
73350C | - |
- | - |
|
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
- | - |
CAUTION / NOTICE / HINT
CAUTION:

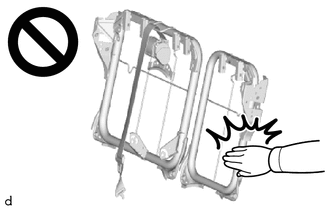

Wear protective gloves. Sharp areas on the parts may injure your hands.
.png)
PROCEDURE
1. INSTALL REAR CENTER SEAT OUTER BELT ASSEMBLY
Torque:
42 N·m {428 kgf·cm, 31 ft·lbf}
2. INSTALL REAR SEATBACK FRAME SUB-ASSEMBLY
3. INSTALL SEPARATE TYPE REAR SEATBACK COVER (w/ Armrest)
|
|
Click here |
4. INSTALL SEPARATE TYPE REAR SEAT BACK COVER (w/o Armrest)
|
|
Click here |
5. INSTALL REAR SEAT HEADREST SUPPORT
6. INSTALL REAR SEATBACK BOARD SUB-ASSEMBLY
7. INSTALL REAR SEATBACK UPPER LOCK BEZEL
8. INSTALL REAR SEAT SHOULDER BELT COVER
9. INSTALL SEAT BELT ANCHOR COVER CAP
10. INSTALL REAR SEAT CENTER ARMREST ASSEMBLY (w/ Armrest)
11. INSTALL CENTER ARMREST HINGE COVER (w/ Armrest)
12. INSTALL REAR SEAT HEADREST ASSEMBLY
13. INSTALL REAR SEATBACK ASSEMBLY RH
|
|
Click here |
14. CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY
