Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

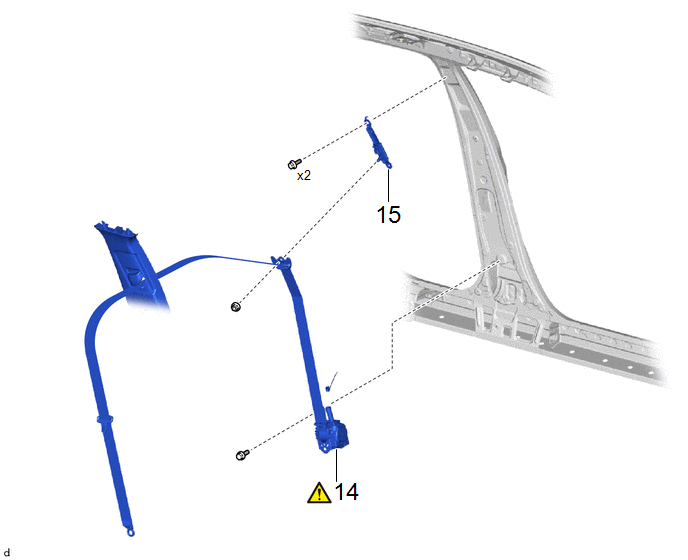

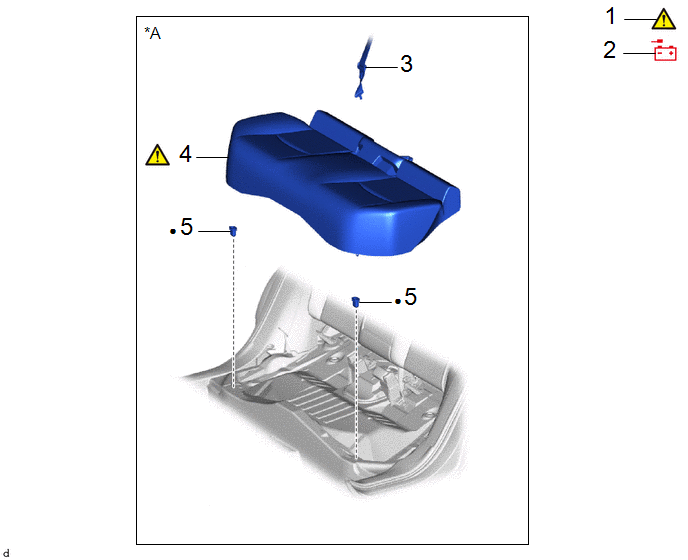

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

PRECAUTION

-

-

-

2

CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

-

-

-

-

3

REAR CENTER SEAT OUTER BELT ASSEMBLY

73350C

-

-

-

4

BENCH TYPE REAR SEAT CUSHION ASSEMBLY

-

-

-

5

REAR SEAT CUSHION LOCK HOOK

72693

-

-

-

*A

for Gasoline Model

-

-

Non-reusable part

-

-

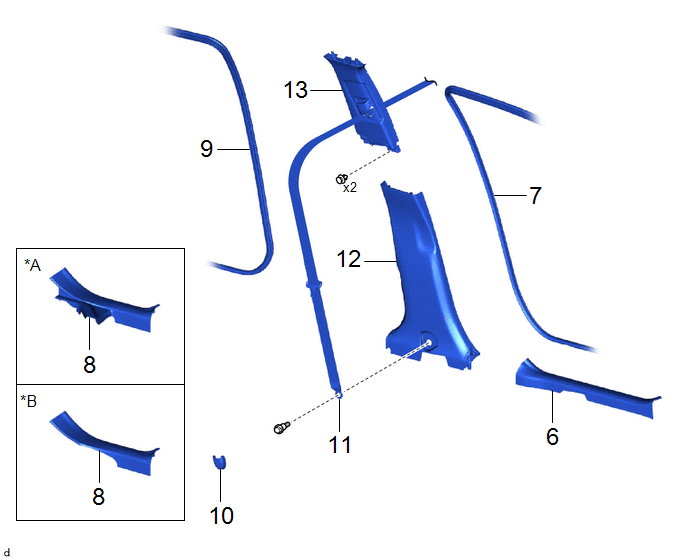

Procedure

Part Name Code

6

FRONT DOOR SCUFF PLATE

67914B

-

-

-

7

FRONT DOOR OPENING TRIM WEATHERSTRIP

62312B

-

-

-

8

REAR DOOR SCUFF PLATE

67918A

-

-

-

9

REAR DOOR OPENING TRIM WEATHERSTRIP

62332A

-

-

-

10

LAP BELT OUTER ANCHOR COVER

73233

-

-

-

11

FRONT SEAT OUTER BELT ASSEMBLY

73220

-

-

-

12

CENTER PILLAR LOWER GARNISH

62414A

-

-

-

13

CENTER PILLER GARNISH ASSEMBLY

62420A

-

-

-

*A

for Gasoline Model

*B

for HEV Model

Procedure

Part Name Code

14

FRONT SEAT OUTER BELT ASSEMBLY

73220

-

-

15

FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY

73200A

-

-

-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the front seat outer belt assembly removal/installation are shown below.

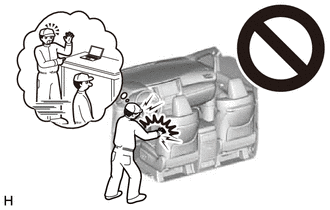

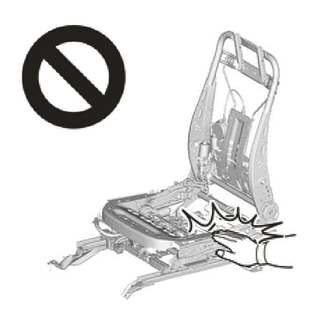

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click here

HINT:

  • When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
    • Learning completes when vehicle is driven

      Effect / Inoperative Function When Necessary Procedures are not Performed

      Necessary Procedures

      Link

      *A: for Gasoline Model

      Front Camera System

      Drivre the vehicle straight ahead at 15 km/h (10mph) or more for 1 second or more.

      Stop and start system *A

      Drive the vehicle until stop and start control is permitted (appoximately 5 to 60 minutes)

    • Learning completes when vehicle is operated normally

      Effect / Inoperative Function When Necessary Procedures are not Performed

      Necessary Procedures

      Link

      Power door lock control system

      • Back door opener

      Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

      Power back door system

      Fully close the back door by hand.

      HINT:

      Initialization is not necessary if the above procedures are performed while the back door is closed.

      Air conditioning system

      After the ignition switch is turned to ON, the servo motor standard position is recognized.

      -

  • Use the same procedure for RHD and LHD vehicles.
  • The procedure listed below is for LHD vehicles.

PROCEDURE

1. PRECAUTION

CAUTION:

Be sure to read Precaution thoroughly before servicing.

Click here

NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click here

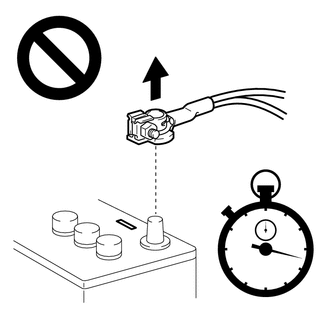

2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

  • Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
  • If the airbag deploys for any reason, it may cause a serious accident.
  • for Gasoline Model:

    Click here

  • for HEV Model:

    Click here

3. DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for Gasoline Model)

Click here

4. REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY (for Gasoline Model)

Click here

5. REMOVE REAR SEAT CUSHION LOCK HOOK (for Gasoline Model)

Click here

6. REMOVE FRONT DOOR SCUFF PLATE

Click here

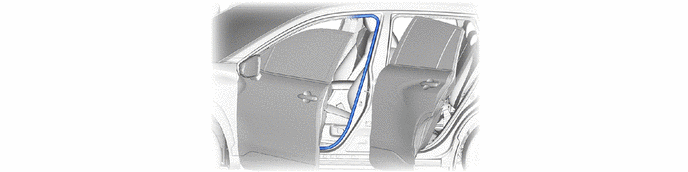

7. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP

8. REMOVE REAR DOOR SCUFF PLATE

Click here

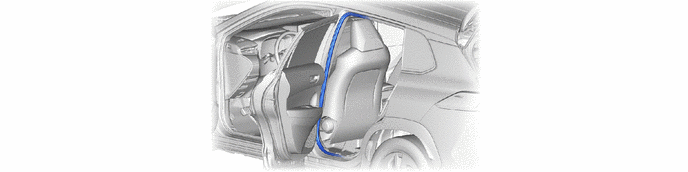

9. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP

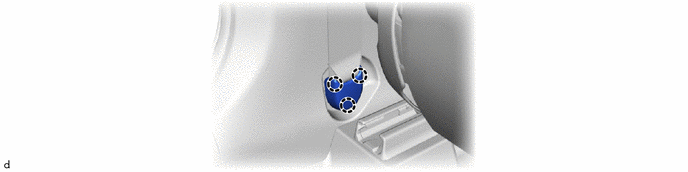

10. REMOVE LAP BELT OUTER ANCHOR COVER

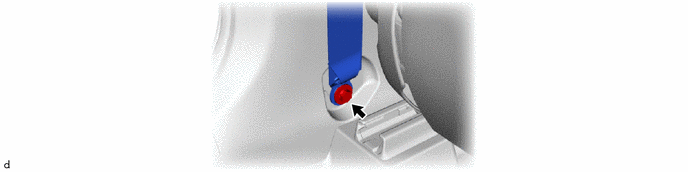

11. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY

12. REMOVE CENTER PILLAR LOWER GARNISH

Click here

13. REMOVE CENTER PILLER GARNISH ASSEMBLY

Click here

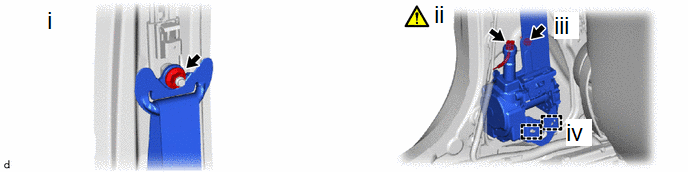

14. REMOVE FRONT SEAT OUTER BELT ASSEMBLY

(1) Remove the nut and disconnect the shoulder anchor of the front seat outer belt assembly.

(2) Disconnect the pretensioner connector.

HINT:

Refer to How to Connector or Disconnect Airbag Connector:

Click here

(3) Remove the bolt.

(4) Disengage the 2 guides to remove the front seat outer belt assembly.

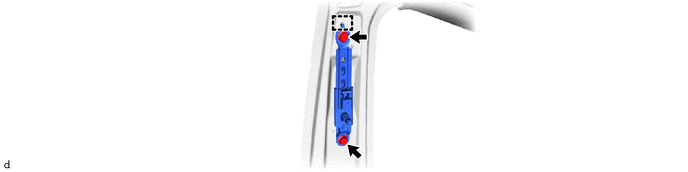

15. REMOVE FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY
