Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

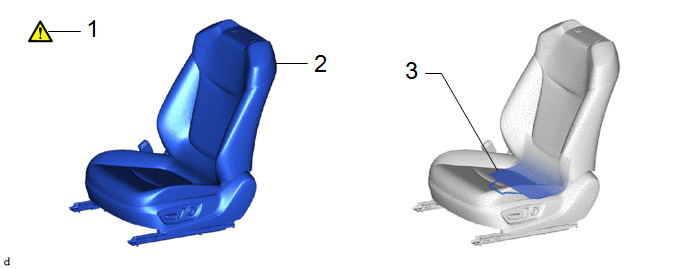

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

PRECAUTION

-

-

-

2

FRONT SEAT ASSEMBLY

-

-

-

-

3

SEPARATE TYPE FRONT SEATBACK COVER

71073S

-

-

-

Procedure

Part Name Code

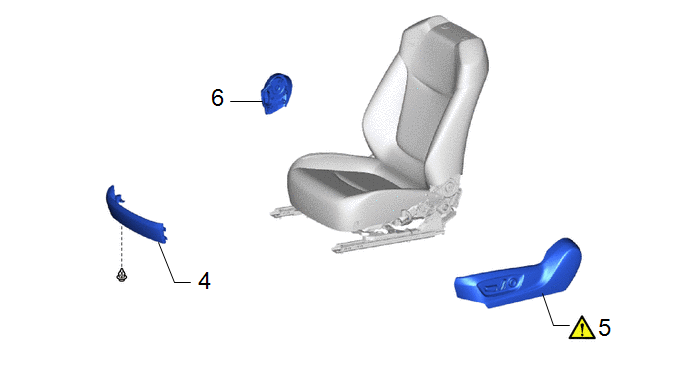

4

FRONT SEAT FRONT CUSHION SHIELD

71868N

-

-

-

5

FRONT SEAT CUSHION SHIELD

71812D

-

-

6

FRONT SEAT INNER CUSHION SHIELD

71862

-

-

-

Procedure

Part Name Code

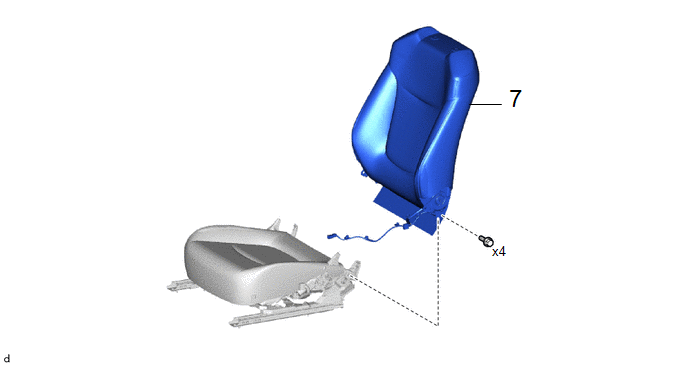

7

SEPARATE TYPE FRONT SEATBACK ASSEMBLY

-

-

-

-

Procedure

Part Name Code

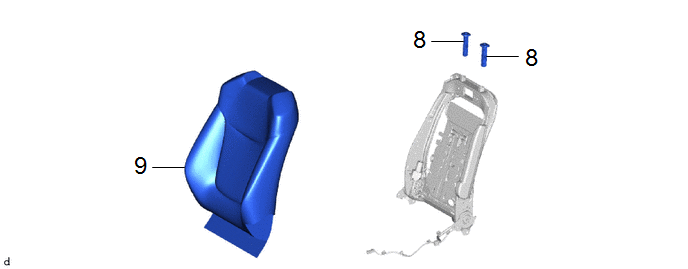

8

FRONT SEAT HEADREST SUPPORT

71931

-

-

-

9

SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

-

-

-

-

Procedure

Part Name Code

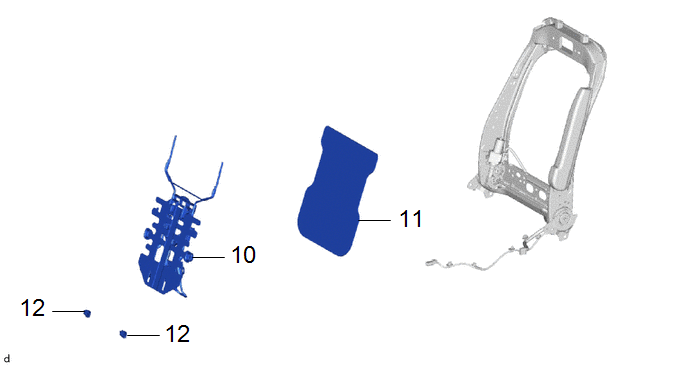

10

LUMBAR SUPPORT ADJUSTER ASSEMBLY

72760D

-

-

-

11

FRONT SEATBACK FELT

79977A

-

-

-

12

FRONT SEATBACK EDGE PROTECTOR

71587

-

-

-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during lumbar support adjuster assembly removal/installation are shown below.

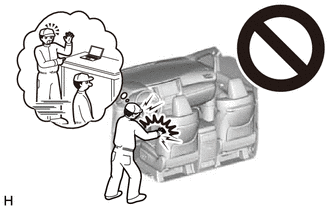

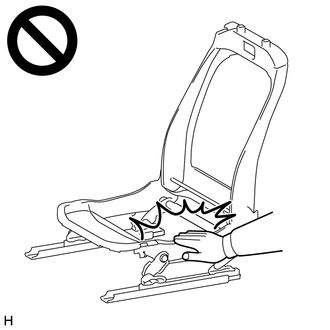

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

  • Learning completes when vehicle is driven

    Effect / Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    *A: for Gasoline Model

    Front Camera System

    Drivre the vehicle straight ahead at 15 km/h (10mph) or more for 1 second or more.

    Stop and start system *A

    Drive the vehicle until stop and start control is permitted (appoximately 5 to 60 minutes)

  • Learning completes when vehicle is operated normally

    Effect / Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Power door lock control system

    • Back door opener

    Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

    Power back door system

    Fully close the back door by hand.

    HINT:

    Initialization is not necessary if the above procedures are performed while the back door is closed.

    Air conditioning system

    After the ignition switch is turned to ON, the servo motor standard position is recognized.

    -

PROCEDURE

1. PRECAUTION

CAUTION:

Be sure to read Precaution thoroughly before servicing.

Click here

NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click here

2. REMOVE FRONT SEAT ASSEMBLY

Click here

3. DISCONNECT SEPARATE TYPE FRONT SEATBACK COVER

Click here

4. REMOVE FRONT SEAT FRONT CUSHION SHIELD

Click here

5. REMOVE FRONT SEAT CUSHION SHIELD

Click here

6. REMOVE FRONT SEAT INNER CUSHION SHIELD

Click here

7. REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY

Click here

8. REMOVE FRONT SEAT HEADREST SUPPORT

Click here

9. REMOVE SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

Click here

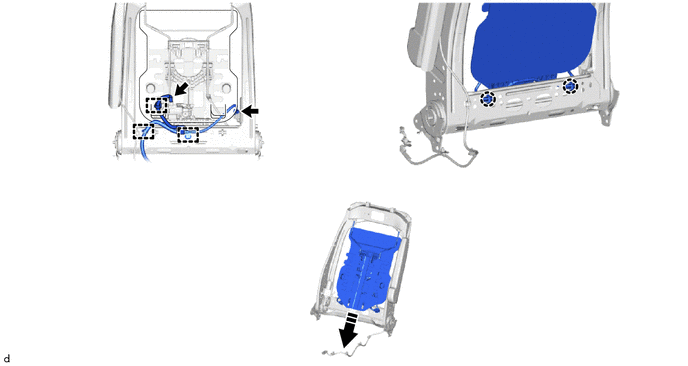

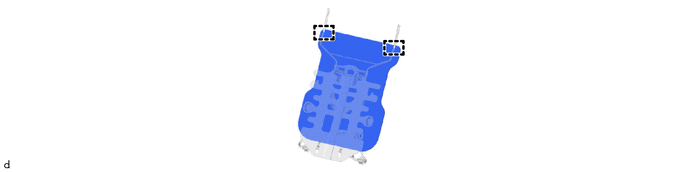

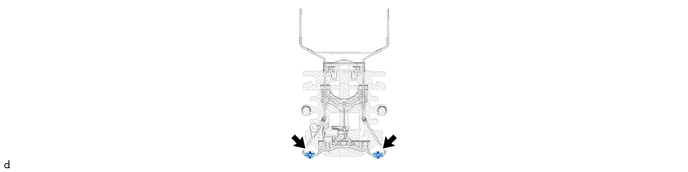

10. REMOVE LUMBAR SUPPORT ADJUSTER ASSEMBLY

11. REMOVE FRONT SEATBACK FELT

12. REMOVE FRONT SEAT BACK EDGE PROTECTOR
