Toyota Corolla Cross: Installation
INSTALLATION
CAUTION / NOTICE / HINT
COMPONENTS (INSTALLATION).png)
|

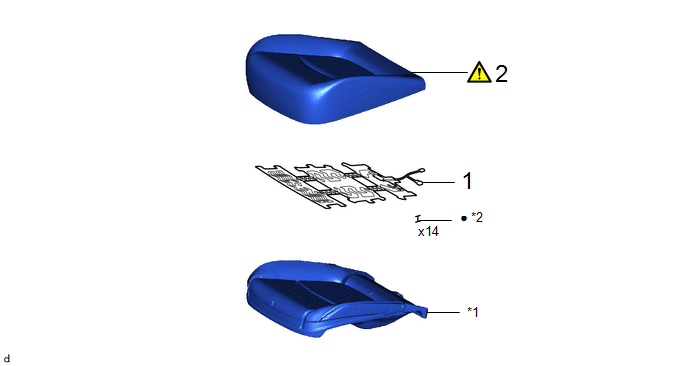

Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | FRONT SEAT CUSHION HEATER ASSEMBLY |
87510N | - |
- | - |
|
2 | SEPARATE TYPE FRONT SEAT CUSHION COVER |
71071S |
|
- | - |
|
*1 | SEPARATE TYPE FRONT SEAT CUSHION PAD |
*2 | TAG PIN |
|
● | Non-reusable part |
- | - |
|

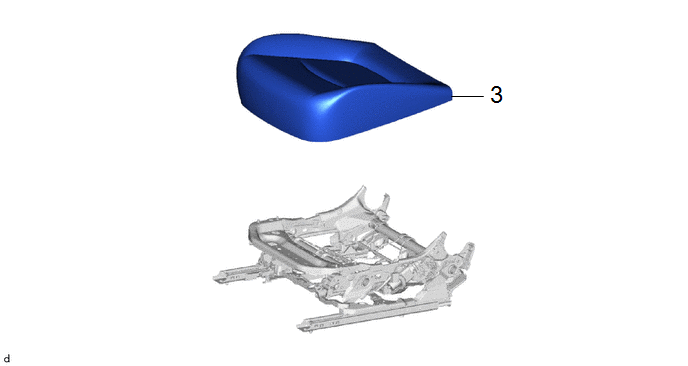

Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
|
3 | SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD |
- | - |
- | - |
|

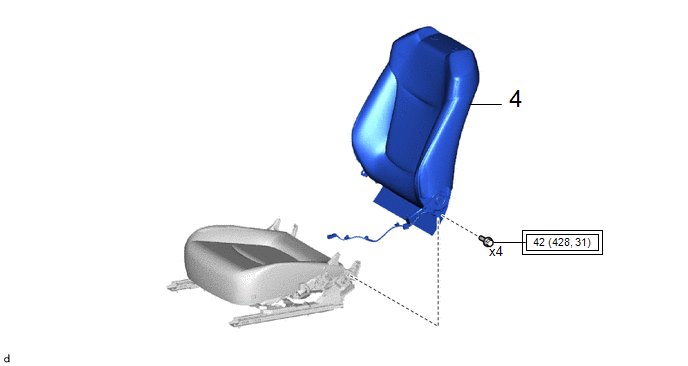

Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
|
4 | SEPARATE TYPE FRONT SEATBACK ASSEMBLY |
- | - |
- | - |
.png) |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |
- | - |
|

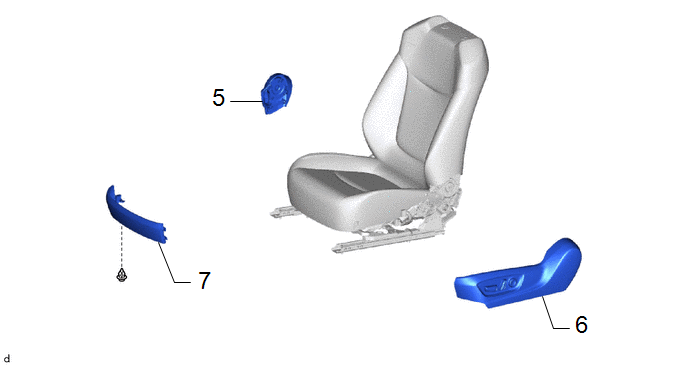

Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
|
5 | FRONT SEAT INNER CUSHION SHIELD |
71862 | - |
- | - |
|
6 | FRONT SEAT CUSHION SHIELD |
71812D | - |
- | - |
|
7 | FRONT SEAT FRONT CUSHION SHIELD |
71868N | - |
- | - |
|

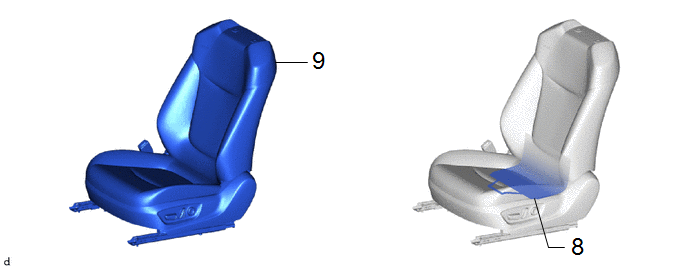

Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
|
8 | SEPARATE TYPE FRONT SEATBACK COVER |
71073S | - |
- | - |
|
9 | FRONT SEAT ASSEMBLY |
- | - |
- | - |
CAUTION / NOTICE / HINT

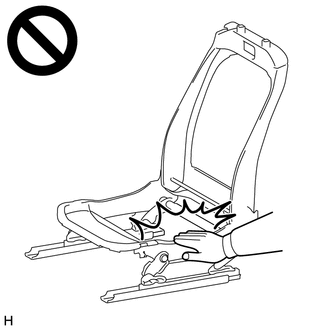

CAUTION:
Wear protective gloves. Sharp areas on the parts may injure your hands.
.png)
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. INSTALL FRONT SEAT CUSHION HEATER ASSEMBLY
2. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER
|
|
Click here |
3. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD
4. INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY
5. INSTALL FRONT SEAT INNER CUSHION SHIELD
6. INSTALL FRONT SEAT CUSHION SHIELD
7. INSTALL FRONT SEAT FRONT CUSHION SHIELD
8. CONNECT SEPARATE TYPE FRONT SEATBACK COVER
9. INSTALL FRONT SEAT ASSEMBLY
Click here
.gif)
