Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

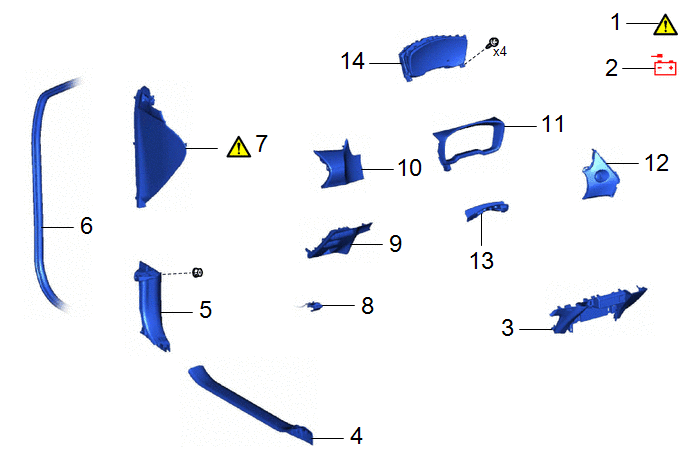

Procedure		Part Name Code
1	PRECAUTION	-		-	-
2	DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
3	LOWER CENTER INSTRUMENT PANEL FINISH PANEL	55434F	-	-	-
4	FRONT DOOR SCUFF PLATE LH	67914B	-	-	-
5	COWL SIDE TRIM SUB-ASSEMBLY LH	62112A	-	-	-
6	FRONT DOOR OPENING TRIM WEATHERSTRIP LH	62312B	-	-	-
7	NO. 1 INSTRUMENT SIDE PANEL	55317E		-	-
8	HOOD LOCK CONTROL LEVER SUB-ASSEMBLY	53601	-	-	-
9	LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL	55432D	-	-	-
10	INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY	55403F	-	-	-
11	INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY	55410C	-	-	-
12	CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL	55413D	-	-	-
13	INSTRUMENT CLUSTER FINISH PANEL RETAINER	55416C	-	-	-
14	COMBINATION METER ASSEMBLY	83100	-	-	-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during combination meter assembly removal/installation are shown below.

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

• Learning completes when vehicle is driven

  Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
  *1: for Gasoline Model
  Front Camera System	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.
  Stop and start system*1	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)

• Learning completes when vehicle is operated normally

  Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
  Power door lock control system Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.
  Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.
  Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

PROCEDURE

1. PRECAUTION

NOTICE: After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-)auxiliary battery terminal. Click here

2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

• for M20A-FKS:

  Click here

• for M20A-FXS:

  Click here

3. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

Click here

4. REMOVE FRONT DOOR SCUFF PLATE LH

Click here

5. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH

Click here

6. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH

Click here

7. REMOVE NO. 1 INSTRUMENT SIDE PANEL

Click here

8. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

Click here

9. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

Click here

10. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

Click here

11. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

Click here

12. REMOVE CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL

Click here

13. REMOVE INSTRUMENT CLUSTER FINISH PANEL RETAINER

Click here

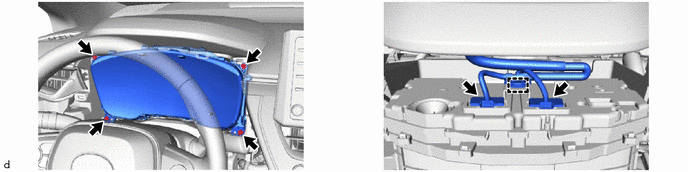

14. REMOVE COMBINATION METER ASSEMBLY
