Toyota Corolla Cross: Installation
INSTALLATION
CAUTION / NOTICE / HINT
NOTICE:
- After replacing the combination meter assembly, make sure to perform update ECU security key.
- After performing the update ECU security key procedure, make sure to perform the initialization procedure for when the cable has been disconnected and reconnected to the negative (-) auxiliary battery terminal.
CAUTION / NOTICE / HINT

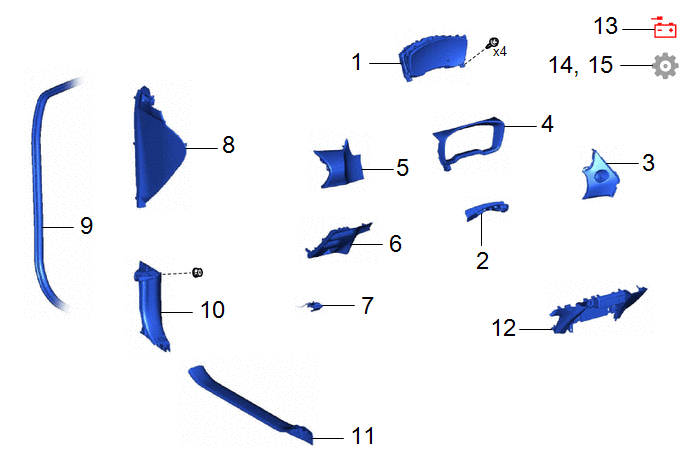

COMPONENTS (INSTALLATION)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | COMBINATION METER ASSEMBLY |
83100 | - |
- | - |
|
2 | INSTRUMENT CLUSTER FINISH PANEL RETAINER |
55416C | - |
- | - |
|
3 | CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL |
55413D | - |
- | - |
|
4 | INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY |
55410C | - |
- | - |
|
5 | INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY |
55403F | - |
- | - |
|
6 | LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL |
55432D | - |
- | - |
|
7 | HOOD LOCK CONTROL LEVER SUB-ASSEMBLY |
53601 | - |
- | - |
|
8 | NO. 1 INSTRUMENT SIDE PANEL |
55317E | - |
- | - |
|
9 | FRONT DOOR OPENING TRIM WEATHERSTRIP LH |
62312B | - |
- | - |
|
10 | COWL SIDE TRIM SUB-ASSEMBLY LH |
62112A | - |
- | - |
|
11 | FRONT DOOR SCUFF PLATE LH |
67914B | - |
- | - |
|
12 | LOWER CENTER INSTRUMENT PANEL FINISH PANEL |
55434F | - |
- | - |
|
13 | CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL |
- | - |
- | - |
|
14 | UPDATE ECU SECURITY KEY |
- | - |
- |
|
|
15 | INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL |
- | - |
- |
|
PROCEDURE
1. INSTALL COMBINATION METER ASSEMBLY
2. INSTALL INSTRUMENT CLUSTER FINISH PANEL RETAINER
3. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL
4. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
5. INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
6. INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL
7. CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
8. INSTALL NO. 1 INSTRUMENT SIDE PANEL
9. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
10. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH
11. INSTALL FRONT DOOR SCUFF PLATE LH
12. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL
Click here .gif)
13. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
- for M20A-FKS:
Click here
- for M20A-FXS:
Click here
14. UPDATE ECU SECURITY KEY
Click here
15. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
HINT:
When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.
Click here
