Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Interior / Meter / Gauge / Display / Combination Meter / Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

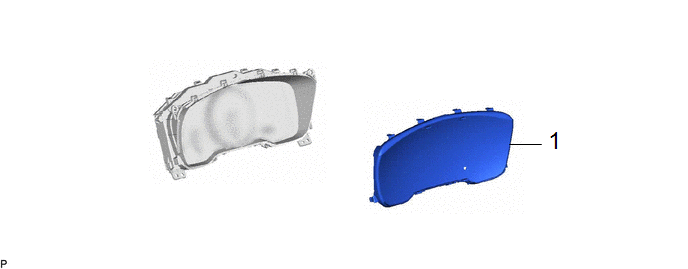

COMPONENTS (REASSEMBLY)

Procedure

Part Name Code

1

COMBINATION METER GLASS

83138G

-

-

-

CAUTION / NOTICE / HINT

NOTICE:

  • When removing and installing the combination meter glass, make sure not to touch the display panel.
  • Do not allow any dirt, fingerprints, grease, etc., to adhere to the combination meter glass. If the glass is dirty, wipe it clean with a soft cloth.

PROCEDURE

1. INSTALL COMBINATION METER GLASS
