Toyota Corolla Cross: Removal
REMOVAL
CAUTION / NOTICE / HINT

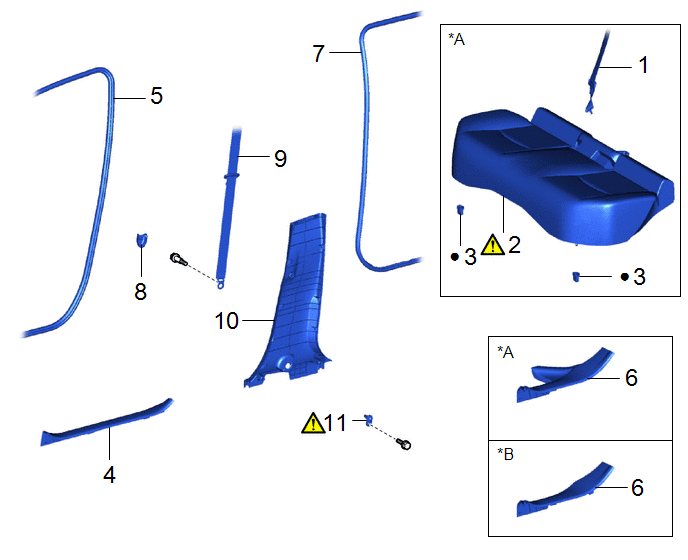

COMPONENTS (REMOVAL)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | REAR CENTER SEAT OUTER BELT ASSEMBLY |
73350C | - |
- | - |
|
2 | BENCH TYPE REAR SEAT CUSHION ASSEMBLY |
- |
|
- | - |
|
3 | REAR SEAT CUSHION LOCK HOOK |
72693 | - |
- | - |
|
4 | FRONT DOOR SCUFF PLATE |
67914B | - |
- | - |
|
5 | FRONT DOOR OPENING TRIM WEATHERSTRIP |
62312B | - |
- | - |
|
6 | REAR DOOR SCUFF PLATE |
67918A | - |
- | - |
|
7 | REAR DOOR OPENING TRIM WEATHERSTRIP |
62332A | - |
- | - |
|
8 | LAP BELT OUTER ANCHOR COVER |
73233 | - |
- | - |
|
9 | FRONT SEAT OUTER BELT ASSEMBLY |
73220 | - |
- | - |
|
10 | CENTER PILLAR LOWER GARNISH |
62414A | - |
- | - |
|
11 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY |
84233 |
|
- | - |
|
*A | for Gasoline Model |
*B | for HEV Model |
|
● | Non-reusable part |
- | - |
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for Gasoline Model)
Click here .gif)
2. REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY (for Gasoline Model)
|
|
Click here |
3. REMOVE REAR SEAT CUSHION LOCK HOOK (for Gasoline Model)
Click here
4. REMOVE FRONT DOOR SCUFF PLATE
Click here
5. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP
Click here
6. REMOVE REAR DOOR SCUFF PLATE
Click here
7. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP
Click here
8. REMOVE LAP BELT OUTER ANCHOR COVER
Click here
9. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY
Click here
10. REMOVE CENTER PILLAR LOWER GARNISH
Click here
11. REMOVE FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY

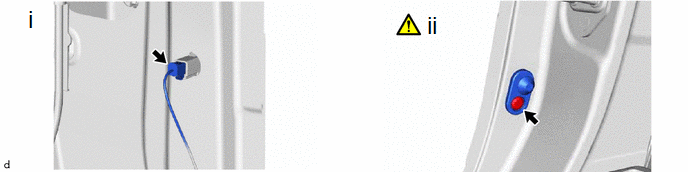

(1) Disconnect the connector.
(2) Using a T30 "TORX" socket wrench, remove the bolt to remove the front door courtesy light switch assembly.
