Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

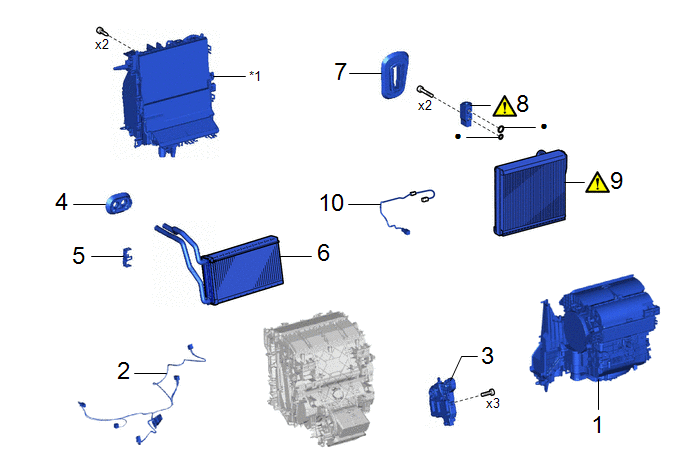

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

BLOWER ASSEMBLY

87130D

-

-

-

2

AIR CONDITIONING HARNESS ASSEMBLY

82210K

-

-

-

3

NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY

87050C

-

-

-

4

HEATER PIPE GROMMET

88897M

-

-

-

5

HEATER CLAMP

87124B

-

-

-

6

HEATER RADIATOR UNIT SUB-ASSEMBLY

87107A

-

-

-

7

COOLER PIPE GROMMET

88897K

-

-

-

8

COOLER EXPANSION VALVE

88515

-

-

9

NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY

88501

-

-

10

NO. 1 COOLER THERMISTOR

88625

-

-

-

*1

UPPER HEATER CASE

-

-

Non-reusable part

-

-

CAUTION / NOTICE / HINT

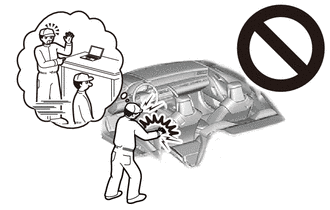

CAUTION:

Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

Click here

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

  • Learning completes when vehicle is driven

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    *1: for Gasoline Model

    Front Camera System

    Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.

    Stop and start system*1

    Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)

  • Learning completes when vehicle is operated normally

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Power door lock control system

    • Back door opener

    Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

    Power back door system

    Fully close the back door by hand.

    HINT:

    Initialization is not necessary if the above procedures are performed while the back door is closed.

    Air conditioning system

    After the ignition switch is turned to ON, the servo motor standard position is recognized.

    -

PROCEDURE

1. REMOVE BLOWER ASSEMBLY

Click here

2. REMOVE AIR CONDITIONING HARNESS ASSEMBLY

Click here

3. REMOVE NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY

Click here

4. REMOVE HEATER PIPE GROMMET

Click here

5. REMOVE HEATER CLAMP

Click here

6. REMOVE HEATER RADIATOR UNIT SUB-ASSEMBLY

Click here

7. REMOVE COOLER PIPE GROMMET

Click here

8. REMOVE COOLER EXPANSION VALVE

Click here

9. REMOVE NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY

Click here

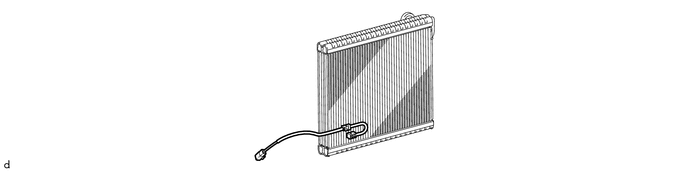

10. REMOVE NO. 1 COOLER THERMISTOR
