Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

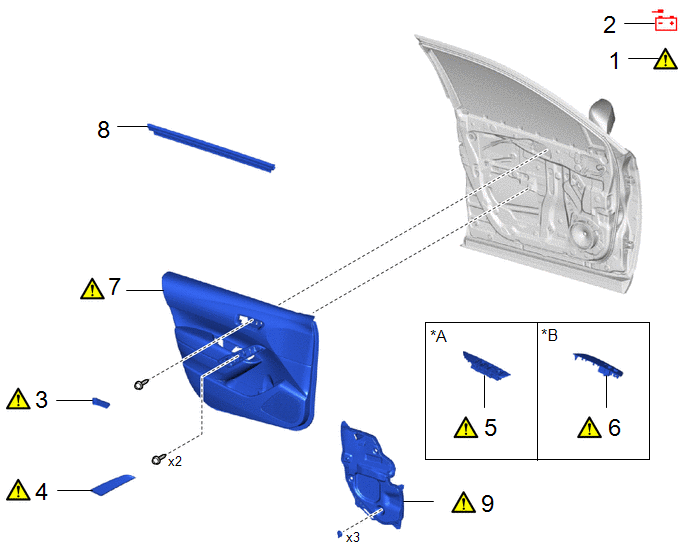

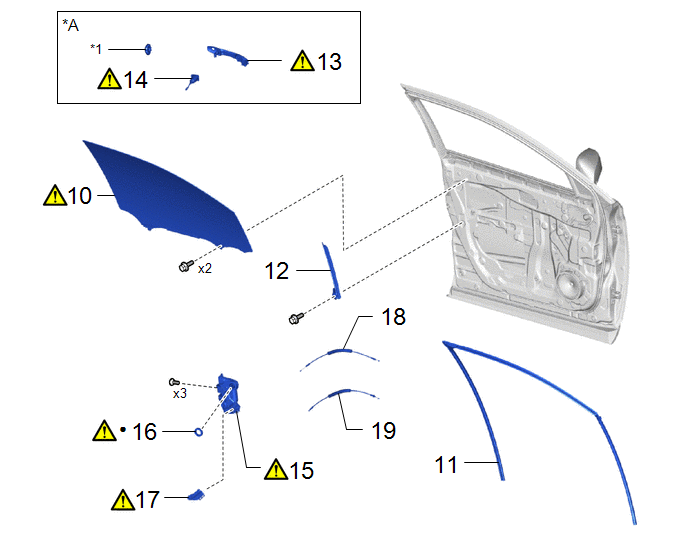

Procedure		Part Name Code
1	PRECAUTION	-		-	-
2	CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
3	FRONT DOOR INSIDE HANDLE BEZEL PLUG	69284F		-	-
4	DOOR ASSIST GRIP COVER	74646		-	-
5	MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT ARMREST BASE UPPER PANEL	-		-	-
6	POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT ARMREST BASE UPPER PANEL	-		-	-
7	FRONT DOOR TRIM BOARD SUB-ASSEMBLY	67602		-	-
8	FRONT DOOR GLASS INNER WEATHERSTRIP	68172A	-	-	-
9	FRONT DOOR SERVICE HOLE COVER	67832		-	-

Procedure		Part Name Code
10	FRONT DOOR GLASS SUB-ASSEMBLY	67832		-	-
11	FRONT DOOR GLASS RUN	68151D	-	-	-
12	FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY	68102	-	-	-
13	FRONT DOOR OUTSIDE HANDLE ASSEMBLY	67404F		-	-
14	FRONT DOOR LOCK CYLINDER ASSEMBLY	69220		-	-
15	FRONT DOOR LOCK WITH MOTOR ASSEMBLY	69510		-	-
16	DOOR LOCK WIRING HARNESS SEAL	69040A		-	-
17	FRONT DOOR LOCK COVER SUB-ASSEMBLY	69318C		-	-
18	OPEN LEVER FRONT DOOR LOCK REMOTE CONTROL CABLE	69720D	-	-	-
19	FRONT DOOR INSIDE LOCK AND UNLOCK KNOB LOCKING CABLE	69760B	-	-	-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during front door lock with motor assembly removal/installation are shown below.

NOTICE:

After the ignition switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the ignition switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal.

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

• Learning completes when vehicle is driven

  Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
  *A: for Gasoline Model
  Front Camera System	Drive the vehicle straight ahead at 15km/h (10 mph) or more for 1 second or more.
  Stop and start system *A	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)

• Learning completes when vehicle is operated normally

  Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
  Power door lock control system Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.
  Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.
  Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

• Use the same procedure for the RH side and LH side.
• The following procedure is for the LH side.

PROCEDURE

1. PRECAUTION

CAUTION: Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing. NOTICE: After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system. If the airbag deploys for any reason, it may cause a serious accident.

• for Gasoline Model

  Click here

• for HEV Model

  Click here

3. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG

Click here

4. REMOVE DOOR ASSIST GRIP COVER

Click here

5. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)

Click here

6. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)

Click here

7. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

Click here

8. REMOVE FRONT DOOR GLASS INNER WEATHERSTRIP

Click here

9. REMOVE FRONT DOOR SERVICE HOLE COVER

Click here

10. REMOVE FRONT DOOR GLASS SUB-ASSEMBLY

Click here

11. REMOVE FRONT DOOR GLASS RUN

Click here

12. REMOVE FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY

Click here

13. REMOVE FRONT DOOR OUTSIDE HANDLE ASSEMBLY (for Driver Side)

Click here

14. REMOVE FRONT DOOR LOCK CYLINDER ASSEMBLY (for Driver Side)

Click here

15. REMOVE FRONT DOOR LOCK WITH MOTOR ASSEMBLY

*1	Front Door Lock Open Rod	-	-
	Remove in this Direction	-	-

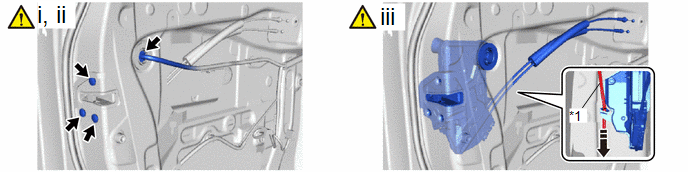

(1) Disconnect the connector from the front door lock with motor assembly.

(2) Using a T30 "TORX" socket wrench, remove the 3 screws.

(3) Disconnect the front door lock open rod and remove the front door lock with motor assembly as shown in the illustration.

16. REMOVE DOOR LOCK WIRING HARNESS SEAL

NOTICE: When reusing the front door lock with motor assembly.

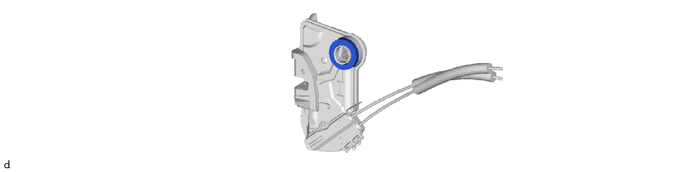

17. REMOVE FRONT DOOR LOCK COVER SUB-ASSEMBLY

Remove in this Direction

-

-

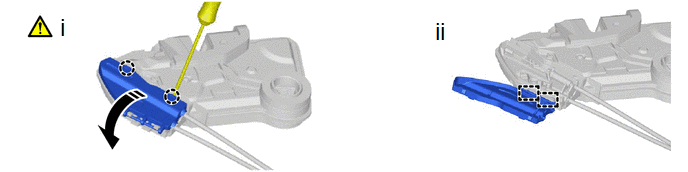

(1) Using a screwdriver with its tip wrapped in protective tape, disengage the claws as shown in the illustration.

(2) Disengage the guides to remove the front door lock cover sub-assembly.

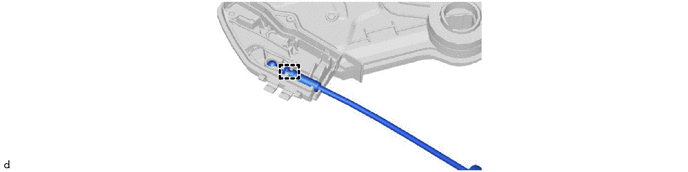

18. REMOVE OPEN LEVER FRONT DOOR LOCK REMOTE CONTROL CABLE

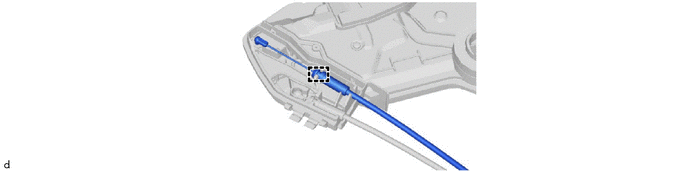

19. REMOVE FRONT DOOR INSIDE LOCK AND UNLOCK KNOB LOCKING CABLE
