Toyota Corolla Cross: Installation

Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Interior / Door Lock / Front Door Lock / Installation

INSTALLATION

CAUTION / NOTICE / HINT

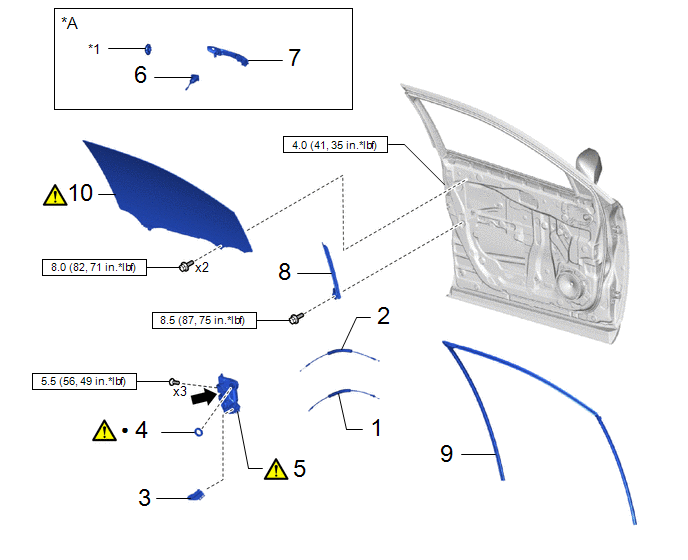

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

FRONT DOOR INSIDE LOCK AND UNLOCK KNOB LOCKING CABLE

69760B

-

-

-

2

OPEN LEVER FRONT DOOR LOCK REMOTE CONTROL CABLE

69720D

-

-

-

3

FRONT DOOR LOCK COVER SUB-ASSEMBLY

69036A

-

-

-

4

DOOR LOCK WIRING HARNESS SEAL

69318C

-

-

5

FRONT DOOR LOCK WITH MOTOR ASSEMBLY

69040A

-

-

6

FRONT DOOR LOCK CYLINDER ASSEMBLY

-

-

-

-

7

FRONT DOOR OUTSIDE HANDLE ASSEMBLY

69220

-

-

-

8

FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY

67404F

-

-

-

9

FRONT DOOR GLASS RUN

68151D

-

-

-

10

FRONT DOOR GLASS SUB-ASSEMBLY

68102

-

-

-

*A

for Driver Side

-

-

*1

HOLE PLUG

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

MP grease

-

-

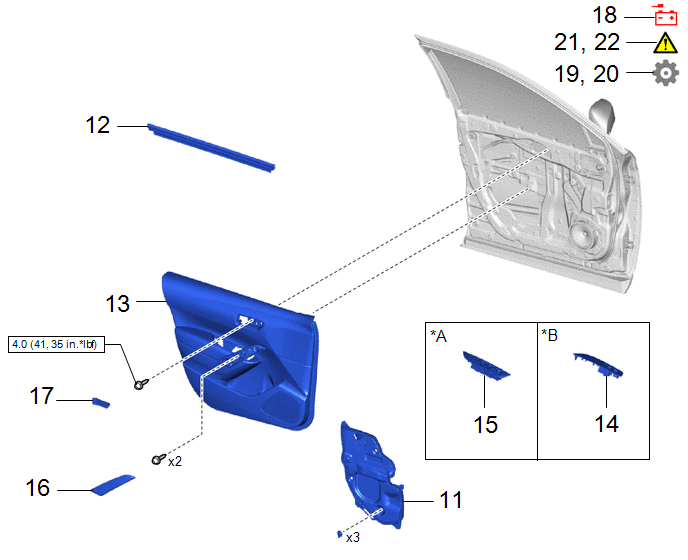

Procedure

Part Name Code

11

FRONT DOOR SERVICE HOLE COVER

68102

-

-

-

12

FRONT DOOR GLASS INNER WEATHERSTRIP

67832

-

-

-

13

FRONT DOOR TRIM BOARD SUB-ASSEMBLY

68172A

-

-

-

14

POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT ARMREST BASE UPPER PANEL

67602

-

-

-

15

MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT ARMREST BASE UPPER PANEL

-

-

-

-

16

DOOR ASSIST GRIP COVER

-

-

-

-

17

FRONT DOOR INSIDE HANDLE BEZEL PLUG

74646

-

-

-

18

CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

69284F

-

-

-

19

INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

-

-

-

20

INITIALIZE POWER WINDOW CONTROL SYSTEM

-

-

-

21

INSPECT POWER WINDOW OPERATION

-

-

-

22

INSPECT POWER DOOR LOCK CONTROL SYSTEM

-

-

-

*A

for Driver Side

*B

for Front Passenger Side

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL FRONT DOOR INSIDE LOCK AND UNLOCK KNOB LOCKING CABLE

2. INSTALL OPEN LEVER FRONT DOOR LOCK REMOTE CONTROL CABLE

3. INSTALL FRONT DOOR LOCK COVER SUB-ASSEMBLY

4. INSTALL DOOR LOCK WIRING HARNESS SEAL

NOTICE:

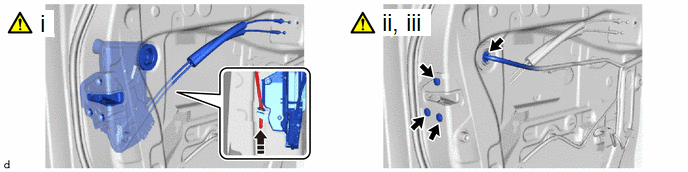

When reusing the front door lock with motor assembly.

5. INSTALL FRONT DOOR LOCK WITH MOTOR ASSEMBLY

NOTICE:

  • When reusing a removed front door lock with motor assembly, replace the door lock wiring harness seal with a new one.
  • Do not allow grease or dust to adhere to the door lock wiring harness seal installation surface.
  • Reusing a door lock wiring harness seal or using a damaged door lock wiring harness seal may cause water ingress. This may result in a malfunction of the front door lock with motor assembly.

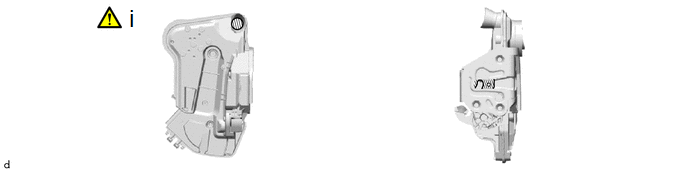

MP Grease

-

-

(1) Apply MP grease to the sliding parts of the front door lock with motor assembly.

Install in this Direction

-

-

(1) Connect the front door lock open rod as shown in the illustration.

HINT:

Make sure that the front door lock open rod is securely connected to the front door lock with motor assembly.

(2) Using a T30 "TORX" socket wrench, install the front door lock with motor assembly with the 3 screws.

Torque:

5.5 N·m {56 kgf·cm, 49 in·lbf}

(3) Connect the connector.

6. INSTALL FRONT DOOR LOCK CYLINDER ASSEMBLY (for Driver Side)

Click here

7. INSTALL FRONT DOOR OUTSIDE HANDLE ASSEMBLY (for Driver Side)

8. INSTALL FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY

Click here

9. INSTALL FRONT DOOR GLASS RUN

10. INSTALL FRONT DOOR GLASS SUB-ASSEMBLY

Click here

11. INSTALL FRONT DOOR SERVICE HOLE COVER

12. INSTALL FRONT DOOR GLASS INNER WEATHERSTRIP

13. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY

Click here

14. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)

15. INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)

16. INSTALL DOOR ASSIST GRIP COVER

17. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG

18. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

  • for Gasoline Model

    Click here

  • for HEV Model

    Click here

19. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click here

20. INITIALIZE POWER WINDOW CONTROL SYSTEM

Click here

21. INSPECT POWER WINDOW OPERATION

Click here

22. INSPECT POWER DOOR LOCK CONTROL SYSTEM

Click here
