Toyota Corolla Cross: Removal
REMOVAL
CAUTION / NOTICE / HINT

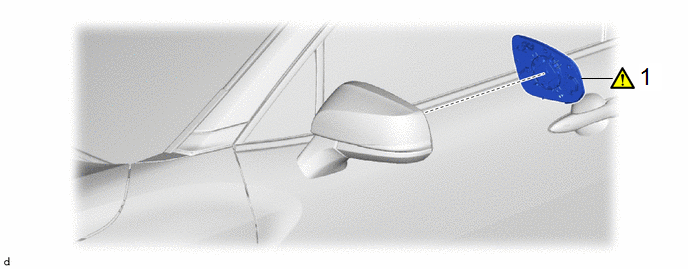

COMPONENTS (REMOVAL)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | OUTER MIRROR |
87961 |
|
- | - |
.gif)
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. REMOVE OUTER MIRROR
|
*A | w/ Blind Spot Monitor System |
- | - |

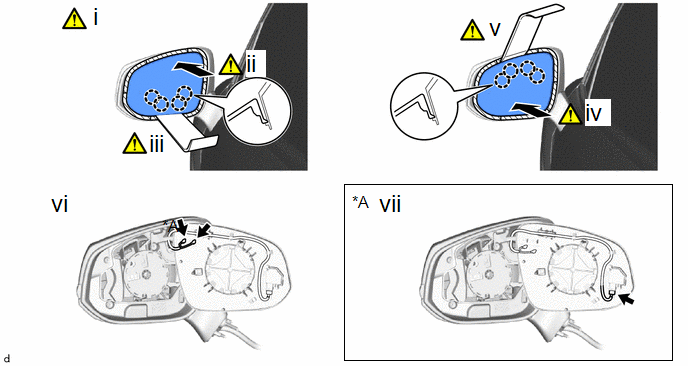

(1) Apply protective tape to the area as shown in the illustration.
(2) Push the upper part of the mirror surface and tilt it.
NOTICE:
Do not push the outer mirror with excessive force. Doing so may cause the actuator to come off or break the mirror surface.
(3) Using a moulding remover D, disengage the claws on the lower part of the outer mirror.
(4) Push the lower part of the mirror surface and tilt it.
NOTICE:
Do not push the outer mirror with excessive force. Doing so may cause the actuator to come off or break the mirror surface.
(5) Using a moulding remover D, disengage the claws on the upper part of the outer mirror to remove the outer mirror.
(6) Disconnect the 2 connectors.
(7) w/ Blind Spot Monitor System:
1. Disconnect the connector.
