Toyota Corolla Cross: Removal

Toyota Corolla Cross (2022-2025) Service Manual / Vehicle Exterior / Lighting (ext) / Rear Combination Light Assembly / Removal

REMOVAL

CAUTION / NOTICE / HINT

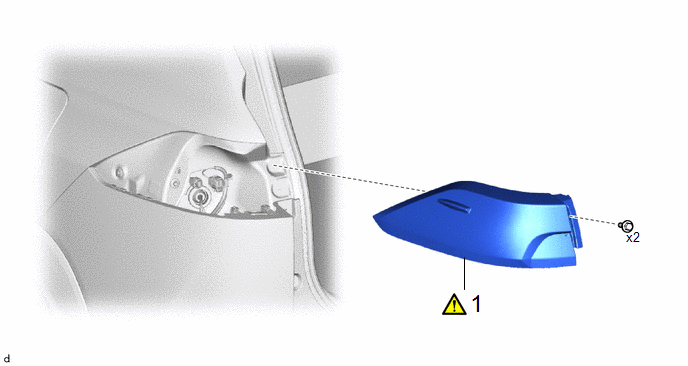

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

REAR COMBINATION LIGHT ASSEMBLY

81560

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

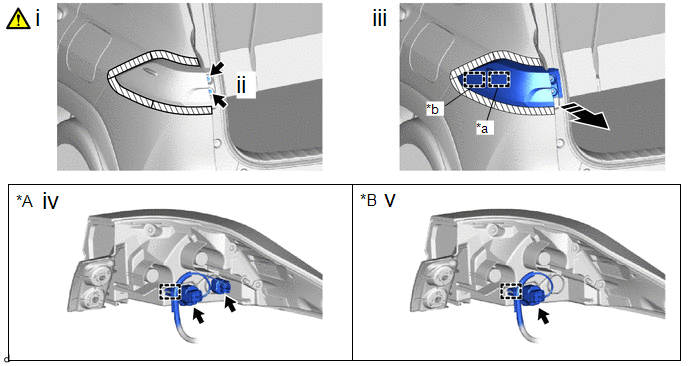

1. REMOVE REAR COMBINATION LIGHT ASSEMBLY

*A

for Bulb Type Clearance Light

*B

for LED Type Clearance Light

*a

Pin

*b

Guide

Remove in this Direction

-

-

(1) Apply protective tape around the rear combination light assembly as shown in the illustration.

(2) Remove the 2 screws.

(3) Disengage the pin and guide to remove the rear combination light assembly as shown in the illustration.

(4) for Bulb Type Clearance Light:

1. Disconnect the 2 connectors.

2. Disengage the clamp.

(5) for LED Type Clearance Light:

1. Disconnect the connector.

2. Disengage the clamp.
