Toyota Corolla Cross (2022-2025) Service Manual / Vehicle Exterior / Exterior Panels / Trim / Rear Door Outside Moulding / Removal

REMOVAL

CAUTION / NOTICE / HINT

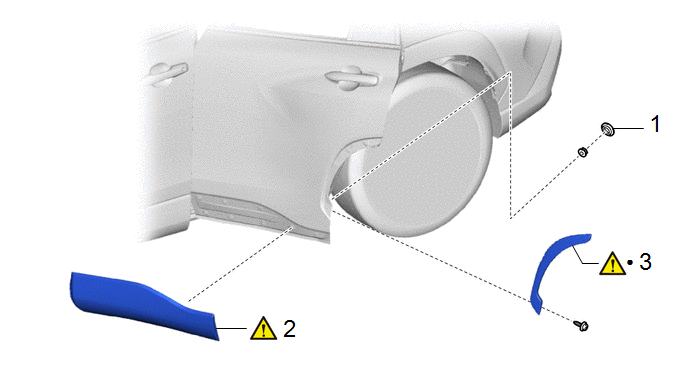

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

HOLE PLUG

-

-

-

-

2

REAR DOOR OUTSIDE LOWER MOULDING SUB-ASSEMBLY

75078

-

-

3

REAR DOOR OUTSIDE MOULDING SUB-ASSEMBLY

75076

-

-

●

Non-reusable part

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

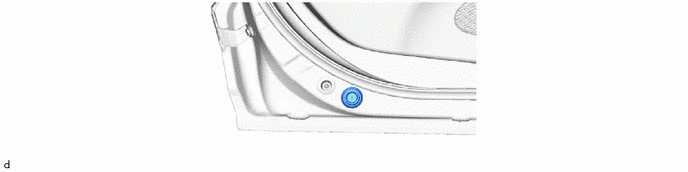

1. REMOVE HOLE PLUG

2. REMOVE REAR DOOR OUTSIDE LOWER MOULDING SUB-ASSEMBLY

Remove in this Direction

-

-

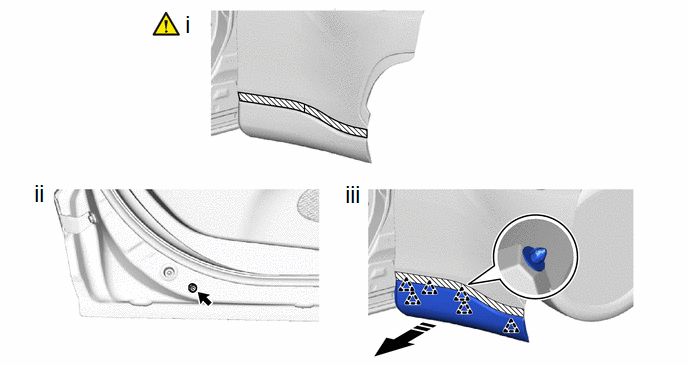

(1) Apply protective tape around the rear door outside lower moulding sub-assembly as shown in the illustration.

(2) Remove the nut.

(3) Disengage the clips to remove the rear door outside lower moulding sub-assembly as shown in the illustration.

3. REMOVE REAR DOOR OUTSIDE MOULDING SUB-ASSEMBLY

*a

Double-sided Tape

-

-

Remove in this Direction

-

-

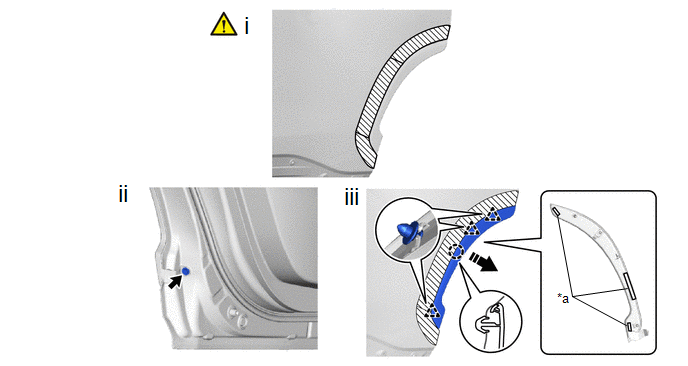

(1) Apply protective tape around the rear door outside moulding sub-assembly as shown in the illustration.

(2) Remove the screw.

(3) Disengage the clips and claw, separate the double-sided tape to remove the rear door outside moulding sub-assembly as shown in the illustration.
