Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

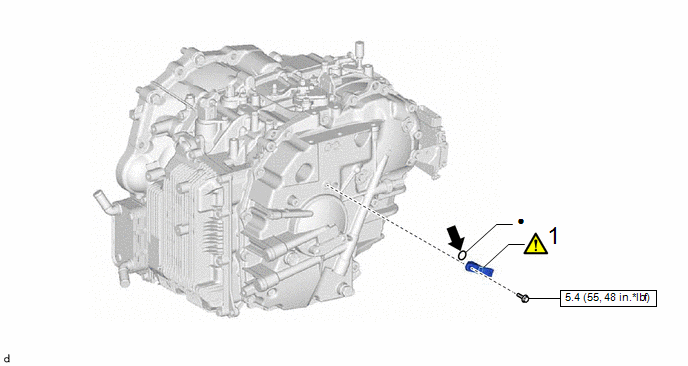

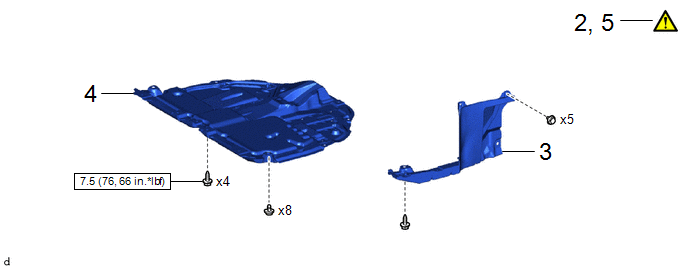

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

TRANSMISSION REVOLUTION SENSOR (NT)

89413N

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

Toyota Genuine CVT Fluid FE

-

-

Procedure

Part Name Code

2

INSPECT FOR CONTINUOUSLY VARIABLE TRANSAXLE FLUID LEAK

-

-

-

3

REAR ENGINE UNDER COVER LH

51444A

-

-

-

4

NO. 1 ENGINE UNDER COVER ASSEMBLY

51410

-

-

-

5

CHECK DATA LIST

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

PROCEDURE

1. INSTALL TRANSMISSION REVOLUTION SENSOR (NT)

Toyota Genuine CVT fluid FE

-

-

(1) Coat a new O-ring with Toyota Genuine CVT fluid FE and install it to the transmission revolution sensor (NT).

NOTICE:

Ensure that the O-ring is not twisted.

(2) Install the transmission revolution sensor (NT) to the rear transaxle case sub-assembly with the bolt.

Torque:

5.4 N·m {55 kgf·cm, 48 in·lbf}

NOTICE:

Be careful not to damage the O-ring.

(3) Connect the transmission revolution sensor (NT) connector.

2. INSPECT FOR CONTINUOUSLY VARIABLE TRANSAXLE FLUID LEAK

Click here

3. INSTALL REAR ENGINE UNDER COVER LH

4. INSTALL NO. 1 ENGINE UNDER COVER ASSEMBLY

Click here

5. CHECK DATA LIST

Click here
