Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

REAR DOOR GLASS SUB-ASSEMBLY

68104

-

-

-

2

REAR DOOR BELT MOULDING ASSEMBLY

75740

-

-

Non-reusable part

-

-

CAUTION / NOTICE / HINT

HINT:

  • When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
    • Learning completes when vehicle is driven

      Effect/Inoperative Function When Necessary Procedures are not Performed

      Necessary Procedures

      Link

      *1: for Gasoline Model

      Front Camera System

      Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.

      Stop and start system*1

      Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)

    • Learning completes when vehicle is operated normally

      Effect/Inoperative Function When Necessary Procedures are not Performed

      Necessary Procedures

      Link

      Power door lock control system

      • Back door opener

      Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

      Power back door system

      Fully close the back door by hand.

      HINT:

      Initialization is not necessary if the above procedures are performed while the back door is closed.

      Air conditioning system

      After the ignition switch is turned to ON, the servo motor standard position is recognized.

      -

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE REAR DOOR GLASS SUB-ASSEMBLY

Click here

2. REMOVE REAR DOOR BELT MOULDING ASSEMBLY

Remove in this Direction

-

-

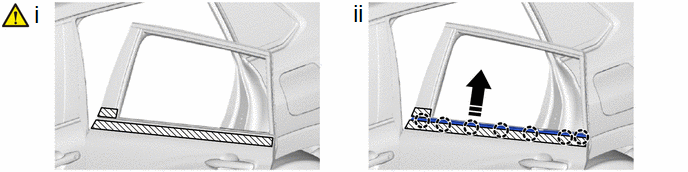

(1) Apply protective tape around the rear door belt moulding assembly as shown in the illustration.

(2) Disengage the claws to remove the rear door belt moulding assembly as shown in the illustration.
