Toyota Corolla Cross (2022-2025) Service Manual / Vehicle Exterior / Exterior Panels / Trim / Rear Door Belt Moulding / Installation

INSTALLATION

CAUTION / NOTICE / HINT

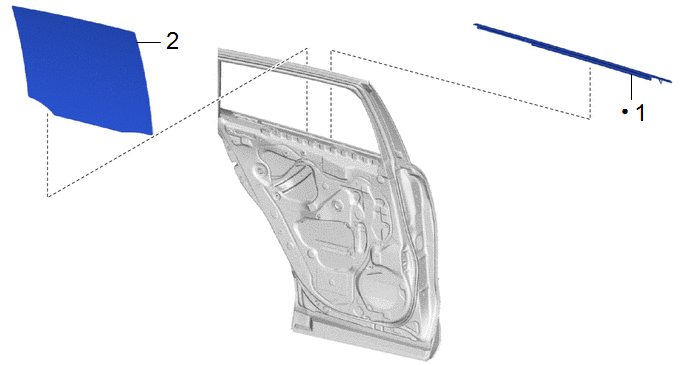

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

REAR DOOR BELT MOULDING ASSEMBLY

75740

-

-

-

2

REAR DOOR GLASS SUB-ASSEMBLY

68104

-

-

-

●

Non-reusable part

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL REAR DOOR BELT MOULDING ASSEMBLY

2. INSTALL REAR DOOR GLASS SUB-ASSEMBLY

Click here
