Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

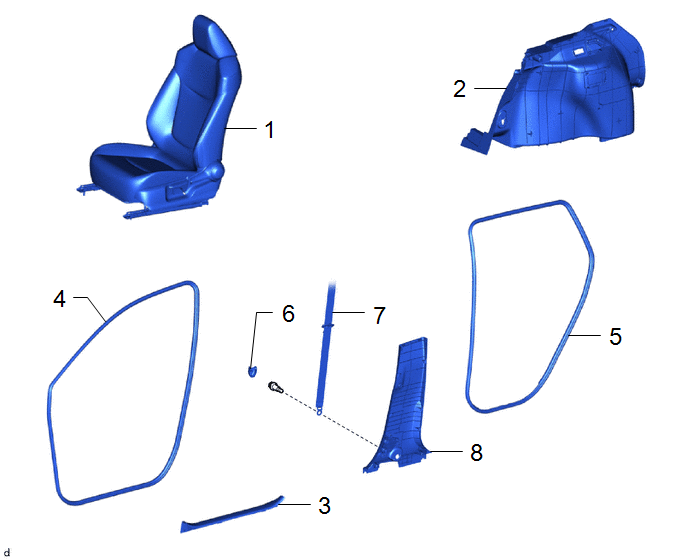

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

FRONT SEAT ASSEMBLY LH

-

-

-

-

2

DECK TRIM SIDE PANEL ASSEMBLY LH

64740C

-

-

-

3

FRONT DOOR SCUFF PLATE LH

67914B

-

-

-

4

FRONT DOOR OPENING TRIM WEATHERSTRIP LH

62312B

-

-

-

5

REAR DOOR OPENING TRIM WEATHERSTRIP LH

62332A

-

-

-

6

LAP BELT OUTER ANCHOR COVER

73233

-

-

-

7

FRONT SEAT OUTER BELT ASSEMBLY LH

73220

-

-

-

8

CENTER PILLAR LOWER GARNISH LH

62414A

-

-

-

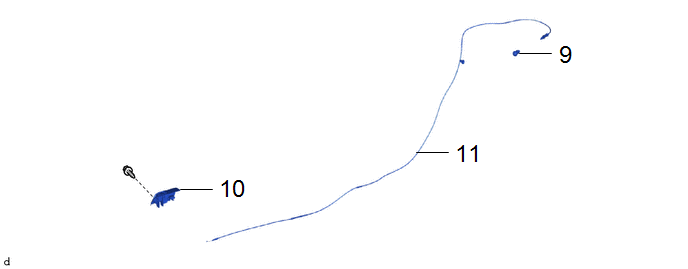

Procedure

Part Name Code

9

FUEL FILLER OPENING LID LOCK RETAINER

77377

-

-

-

10

FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY

77306

-

-

-

11

FUEL LID LOCK CONTROL CABLE SUB-ASSEMBLY

77035

-

-

-

PROCEDURE

1. REMOVE FRONT SEAT ASSEMBLY LH

  • for Manual Seat:

    Click here

  • for Power Seat:

    Click here

2. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

Click here

3. REMOVE FRONT DOOR SCUFF PLATE LH

Click here

4. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH

Click here

5. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH

Click here

6. REMOVE LAP BELT OUTER ANCHOR COVER

Click here

7. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY LH

Click here

8. REMOVE CENTER PILLAR LOWER GARNISH LH

Click here

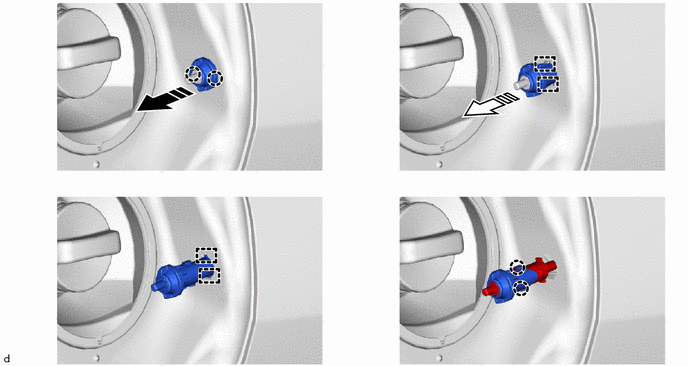

9. REMOVE FUEL FILLER OPENING LID LOCK RETAINER

Remove in this Direction (1)

Remove in this Direction (2)

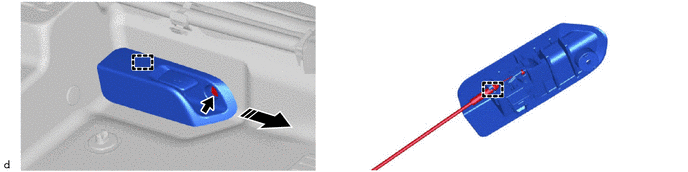

10. REMOVE FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY

Remove in this Direction

-

-

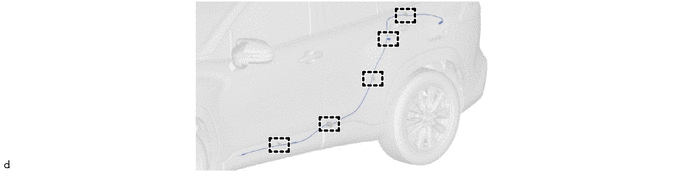

11. REMOVE FUEL LID LOCK CONTROL CABLE SUB-ASSEMBLY
