Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Exterior / Door / Hatch / Back Door Opener Switch / Installation

INSTALLATION

CAUTION / NOTICE / HINT

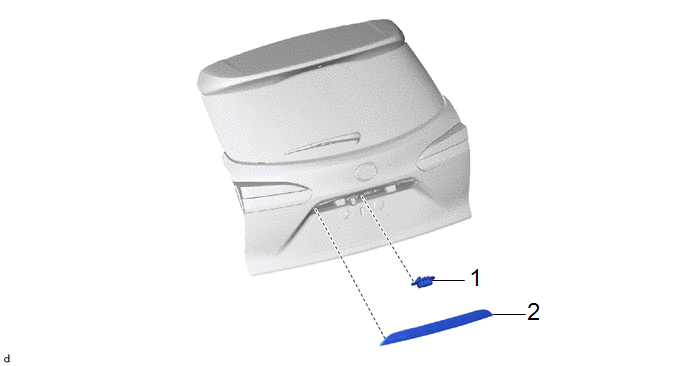

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

BACK DOOR OPENER SWITCH ASSEMBLY

84840G

-

-

-

2

BACK DOOR OUTSIDE GARNISH

76811

-

-

-

PROCEDURE

1. INSTALL BACK DOOR OPENER SWITCH ASSEMBLY

2. INSTALL BACK DOOR OUTSIDE GARNISH

Click here
