Toyota Corolla Cross (2022-2024) Service Manual / Suspension / Tire Pressure Monitoring / Tire Pressure Warning Valve (for Aluminum Wheel Type) / Disposal

DISPOSAL

CAUTION / NOTICE / HINT

HINT:

The tire pressure warning valve and transmitter is powered by a lithium battery. When disposing of the tire pressure warning valve and transmitter, remove the battery and dispose of it properly.

PROCEDURE

1. DISPOSE OF TIRE PRESSURE WARNING VALVE AND TRANSMITTER

Urethane

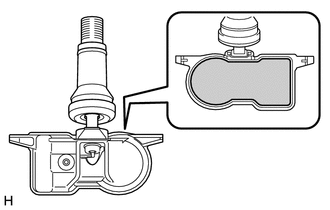

(a) Remove the urethane that protects the lithium battery and the circuit board.

(b) Cut the 2 terminals to remove the lithium battery from the tire pressure warning valve and transmitter.

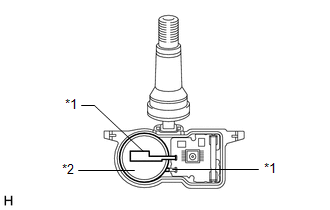

*1

Terminal

*2

Lithium Battery
