Toyota Corolla Cross (2022-2024) Service Manual / Suspension / Rear Suspension / Rear Shock Absorber (for Awd) / Removal

REMOVAL

CAUTION / NOTICE / HINT

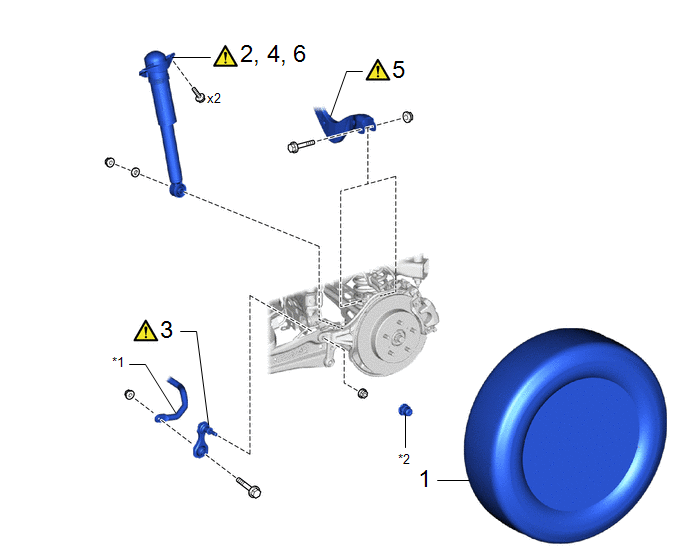

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

REAR WHEEL

-

-

-

-

2

LOOSEN REAR SHOCK ABSORBER ASSEMBLY

48540E

-

-

3

REAR STABILIZER LINK ASSEMBLY

48840A

-

-

4

SEPARATE REAR SHOCK ABSORBER ASSEMBLY

48540E

-

-

5

REAR UPPER CONTROL ARM ASSEMBLY

48790

-

-

6

REMOVE REAR SHOCK ABSORBER ASSEMBLY

48540E

-

-

*1

REAR STABILIZER BAR

*2

CAP

Procedure

Part Name Code

7

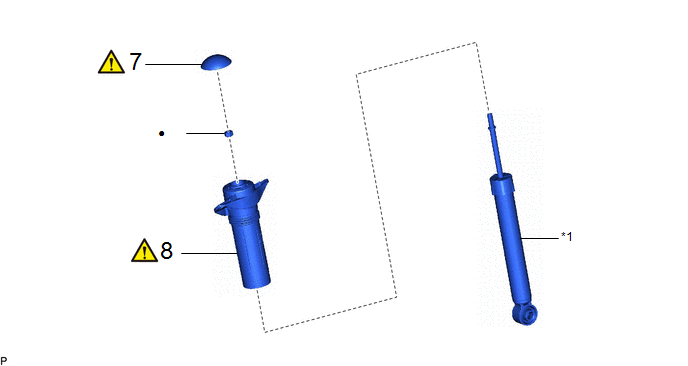

REAR SHOCK ABSORBER CAP

48554A

-

-

8

REAR SUSPENSION SUPPORT ASSEMBLY

48760B

-

-

*1

REAR SHOCK ABSORBER ASSEMBLY

-

-

●

Non-reusable part

★

Precoated part

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear shock absorber assembly removal/installation are shown below.

Necessary Procedures After Procedure Performed

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

Rear wheel alignment adjustment

 for HEV Model:
  1. Perform "Reset Memory"
  2. Perform "Calibration"
  • DTCs are stored
  • ABS warning light illuminates
  • Brake system warning light (yellow indicator) illuminates
  • Slip indicator light illuminates
  • Electronically controlled brake system does not operate correctly

for Gasoline Model:
  1. Perform "Reset Memory"
  2. Perform "Calibration"
  • DTCs are stored
  • ABS warning light illuminates
  • Slip indicator light illuminates
  • Electronically controlled brake system does not operate correctly

for Gasoline Model AWD:
  • Perform "Reset Memory"

Dynamic torque control AWD system

Suspension, tires, etc.

Rear television camera assembly optical axis (Back camera position setting)

Parking Assist Monitor System

Initialize headlight ECU subassembly LH

Automatic headlight beam level control system

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE REAR WHEEL

Click here

2. LOOSEN REAR SHOCK ABSORBER ASSEMBLY

*1

Rear Axle Carrier Pin

-

-

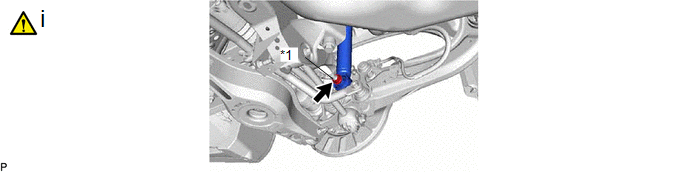

(1) Loosen the nut of the rear shock absorber assembly.

NOTICE:

Hold the rear axle carrier pin while rotating the nut.

3. REMOVE REAR STABILIZER LINK ASSEMBLY

Click here

4. SEPARATE REAR SHOCK ABSORBER ASSEMBLY

*a

Wooden Block

*b

Jack

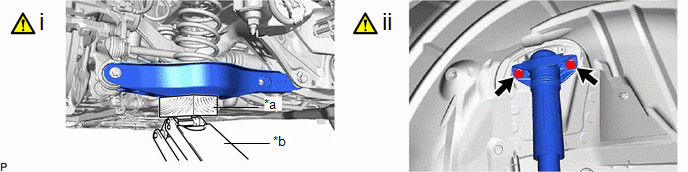

(1) Using a jack and a wooden block, support the rear No. 2 suspension arm assembly.

NOTICE:

  • When jacking up the rear No. 2 suspension arm assembly , be sure to jack it up slowly.
  • Make sure to perform this operation with the vehicle kept as low as possible.

(2) Remove the 2 bolts and separate the rear shock absorber assembly from the vehicle.

5. SEPARATE REAR UPPER CONTROL ARM ASSEMBLY

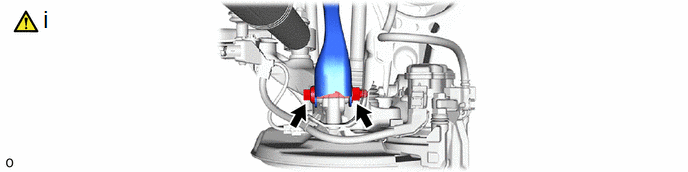

(1) Remove the bolt and nut, and separate the rear upper control arm assembly from the rear axle carrier sub-assembly.

NOTICE:

Loosen the bolt with the nut secured.

6. REMOVE REAR SHOCK ABSORBER ASSEMBLY

*1

Rear Axle Carrier Pin

-

-

(1) Remove the nut, plate washer and rear shock absorber assembly from the rear axle carrier subassembly.

NOTICE:

Hold the rear axle carrier pin while rotating the nut.

7. REMOVE REAR SHOCK ABSORBER CAP

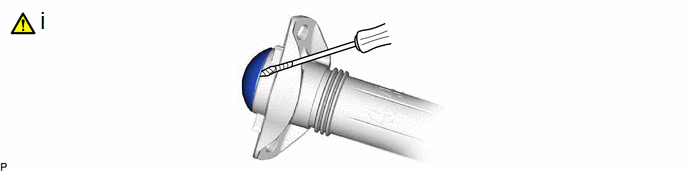

(1) Using a screwdriver with its tip wrapped with protective tape, remove the rear shock absorber cap from the rear shock absorber assembly.

8. REMOVE REAR SUSPENSION SUPPORT ASSEMBLY

*a

Turn

*b

Hold

(1) Secure the rear shock absorber assembly in a vise using aluminum plates.

NOTICE:

Do not overtighten the vise.

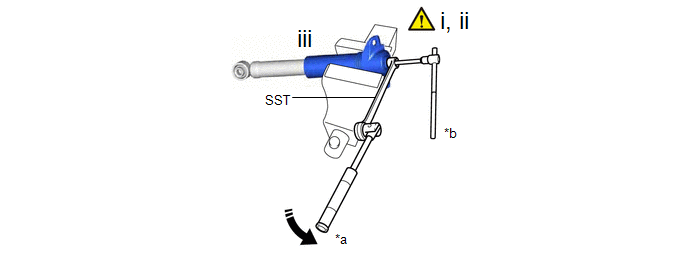

(2) Using SST and a 6 mm hexagon socket wrench, hold the rear shock absorber rod and remove the rear support to rear shock absorber nut.

SST: 09729-00170

(3) Remove the rear suspension support assembly from the rear shock absorber assembly.
