INSTALLATION
CAUTION / NOTICE / HINT

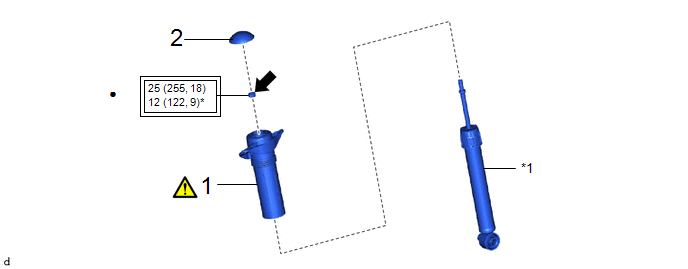

COMPONENTS (INSTALLATION)
Procedure |
Part Name Code |
||||
---|---|---|---|---|---|
1 |
REAR SUSPENSION SUPPORT ASSEMBLY |
48760B |
|
- |
- |
2 |
REAR SHOCK ABSORBER CAP |
48554A |
- |
- |
- |
*1 |
REAR SHOCK ABSORBER ASSEMBLY |
- |
- |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |
* |
For use with SST |
|
● |
Non-reusable part |
Adhesive 1324 |
|
★ |
Precoated part |
- |
- |

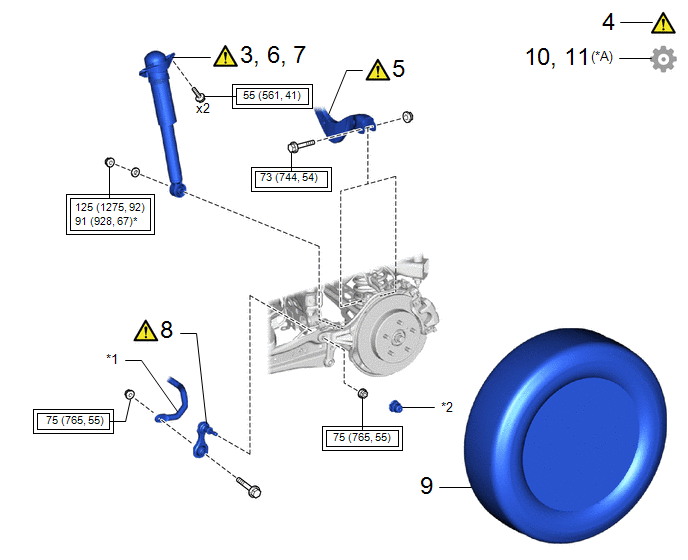

Procedure |
Part Name Code |
||||
---|---|---|---|---|---|
3 |
TEMPORARILY TIGHTEN REAR SHOCK ABSORBER ASSEMBLY |
48540E |
|
- |
- |
4 |
STABILIZE SUSPENSION |
- |
|
- |
- |
5 |
REAR UPPER CONTROL ARM ASSEMBLY |
48790 |
|
- |
- |
6 |
CONNECT REAR SHOCK ABSORBER ASSEMBLY |
48540E |
|
- |
- |
7 |
FULLY TIGHTEN REAR SHOCK ABSORBER ASSEMBLY |
48540E |
|
- |
- |
8 |
REAR STABILIZER LINK ASSEMBLY |
48840A |
|
- |
- |
9 |
REAR WHEEL |
- |
- |
- |
- |
10 |
INSPECT AND ADJUST REAR WHEEL ALIGNMENT |
- |
- |
- |
|
11 |
PERFORM CALIBRATION |
- |
- |
- |
|
*A |
w/ Parking Assist Monitor System |
- |
- |
*1 |
REAR STABILIZER BAR |
*2 |
CAP |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |
* |
For use with a ball joint lock nut wrench |
CAUTION / NOTICE / HINT
HINT:
PROCEDURE

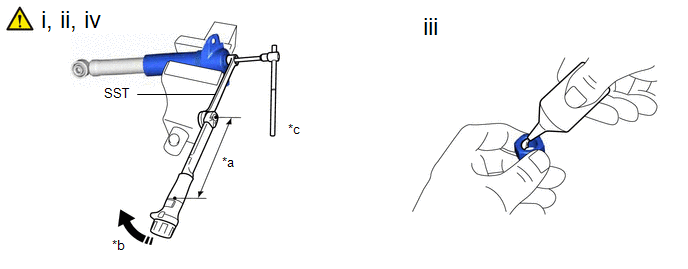

1. INSTALL REAR SUSPENSION SUPPORT ASSEMBLY
*a |
Torque Wrench Fulcrum Length |
*b |
Turn |
*c |
Hold |
- |
- |
(1) Secure the rear suspension support assembly in a vise using aluminum plates.
NOTICE:
Do not overtighten the vise.
(2) Install the rear suspension support assembly to the rear shock absorber assembly.
(3) Apply a few drops of adhesive to the threads of a new rear support to rear shock absorber nut.
Adhesive:
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent
(4) Using SST and a 6 mm hexagon socket wrench, hold the rear shock absorber rod and tighten a newrear support to rear shock absorber nut.
SST: 09729-00170
Torque:
Specified tightening torque :
25 N·m {255 kgf·cm, 18 ft·lbf}
NOTICE:
Securely insert the 6 mm hexagon socket wrench into the rear shock absorber rod to prevent damage to the rear shock absorber assembly when tightening the rear support to rear shock absorber nut.
HINT:
Click here
12 N*m (122 kgf*cm, 9 ft.*lbf)
2. INSTALL REAR SHOCK ABSORBER CAP

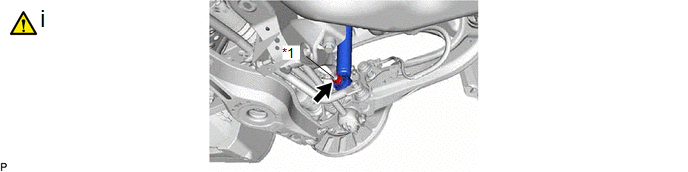

3. TEMPORARILY TIGHTEN REAR SHOCK ABSORBER ASSEMBLY
*1 |
Rear Axle Carrier Pin |
- |
- |
(1) Temporarily install the rear shock absorber assembly to the rear axle carrier sub-assembly with the nut and plate washer.
NOTICE:
Hold the rear axle carrier pin while rotating the nut.

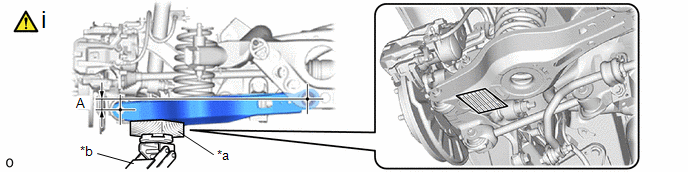

4. STABILIZE SUSPENSION

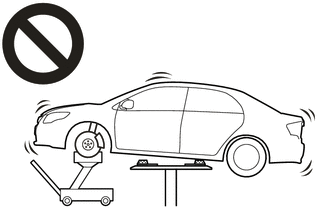

CAUTION:
|
*a |
Wooden Block |
*b |
Jack |
Wooden Block Placement Location |
- |
- |
(1) Using a jack and a wooden block, apply load to the suspension so that the rear No. 2 suspension armassembly is positioned as shown in the illustration.
Standard Length A:
30.5 mm (1.201 in.)
NOTICE:
5. INSTALL REAR UPPER CONTROL ARM ASSEMBLY
NOTICE:
|
Torque:
73 N·m {744 kgf·cm, 54 ft·lbf}

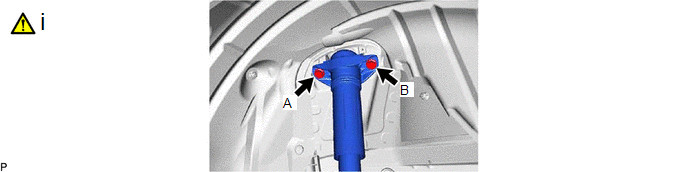

6. CONNECT REAR SHOCK ABSORBER ASSEMBLY
(1) Connect the rear shock absorber assembly to the vehicle with the 2 bolts.
Torque:
55 N·m {561 kgf·cm, 41 ft·lbf}
NOTICE:
Temporarily tighten bolt A and then fully tighten the 2 bolts in the order of B and A.

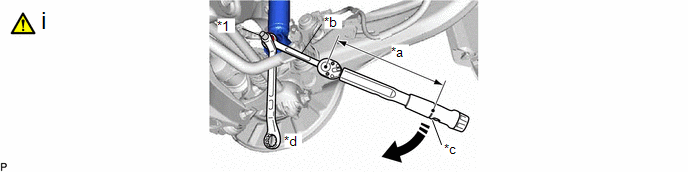

7. FULLY TIGHTEN REAR SHOCK ABSORBER ASSEMBLY
*1 |
Rear Axle Carrier Pin |
- |
- |
*a |
Torque Wrench Fulcrum Length |
*b |
Ball Joint Lock Nut Wrench |
*c |
Turn |
*d |
Hold |
(1) Using a ball joint lock nut wrench fully tighten the rear shock absorber assembly with the nut.
Torque:
Specified tightening torque :
125 N·m {1275 kgf·cm, 92 ft·lbf}
NOTICE:
Hold the rear axle carrier pin while rotating the nut.
HINT:
Click here
91 N*m (928 kgf*cm, 67 ft.*lbf)
8. INSTALL REAR STABILIZER LINK ASSEMBLY
Click here |
9. INSTALL REAR WHEEL
Click here
10. INSPECT AND ADJUST REAR WHEEL ALIGNMENT
Click here
11. PERFORM CALIBRATION (w/ Parking Assist Monitor System)
Parking assist monitor system |
|
Automatic headlight beam level control system |
|
