Toyota Corolla Cross: Disposal

Toyota Corolla Cross (2022-2024) Service Manual / Suspension / Rear Suspension / Rear Shock Absorber (for Awd) / Disposal

DISPOSAL

PROCEDURE

1. DISPOSE OF REAR SHOCK ABSORBER ASSEMBLY

(a) Extend the piston rod and secure the rear shock absorber assembly at an angle in a vise.

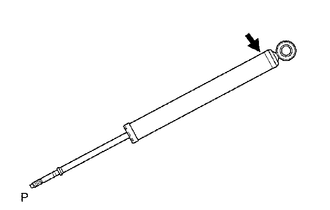

(b) Using a hacksaw, slowly make a hole at the position indicated by the arrow in the illustration to discharge the gas inside.

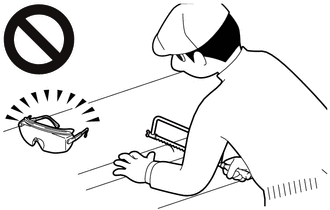

CAUTION:

  • Always use a cloth to prevent shards of metal flying about due to the release of pressurized gas.
  • Always wear safety glasses.

HINT:

The gas is colorless, odorless and non-poisonous.
