Toyota Corolla Cross: Removal
REMOVAL
CAUTION / NOTICE / HINT

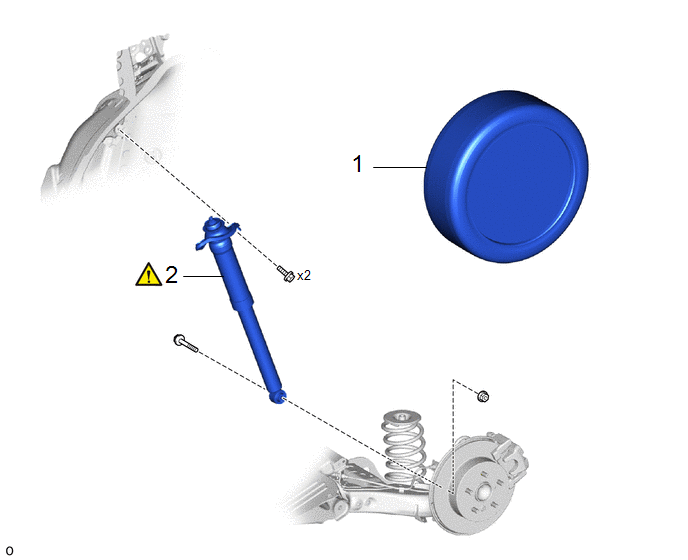

COMPONENTS (REMOVAL)
|
Procedure |
Part Name Code |
.png) |
.png) |
.png) |
|
|---|---|---|---|---|---|
|
1 |
REAR WHEEL |
- |
- |
- |
- |
|
2 |
REAR SHOCK ABSORBER ASSEMBLY |
48540E |
|
- |
- |
|

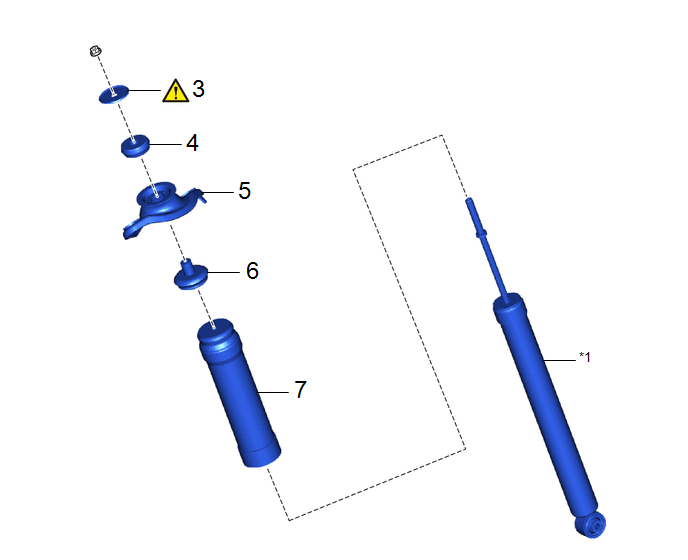

Procedure |
Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
|
3 |
REAR NO. 1 SHOCK ABSORBER CUSHION WASHER |
48530B |
|
- |
- |
|
4 |
REAR SUSPENSION SUPPORT |
48755 |
- |
- |
- |
|
5 |
REAR SUSPENSION SUPPORT ASSEMBLY |
48760B |
- |
- |
- |
|
6 |
REAR SUSPENSION SUPPORT STOPPER |
48752A |
- |
- |
- |
|
7 |
REAR NO. 1 SPRING BUMPER |
48341B |
- |
- |
- |
|
*1 |
REAR SHOCK ABSORBER ASSEMBLY |
- |
- |
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear shock absorber assembly removal/installation are shown below.
Necessary Procedures After Parts Removed/Installed/Replaced|
Replaced Part or Performed Procedure |
Necessary Procedure |
Effect/Inoperative Function when Necessary Procedure not Performed |
Link |
|---|---|---|---|
|
Rear wheel alignment adjustment |
|
|
|
|
Suspension, tires, etc. |
Rear television camera assembly optical axis (Back camera position setting) |
Parking assist monitor system |
|
|
Initialize headlight ECU sub-assembly LH |
Automatic headlight beam level control system |
|
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. REMOVE REAR WHEEL
Click here .gif)
2. REMOVE REAR SHOCK ABSORBER ASSEMBLY
|
*a |
Wooden Block |
*b |
Jack |

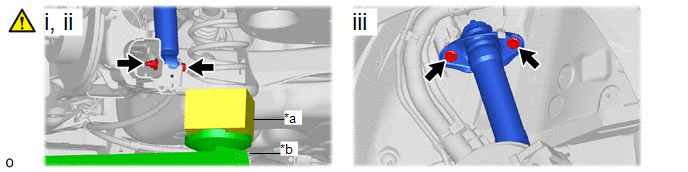

(1) Support the spring seat of the rear axle beam assembly using a jack and wooden block.
CAUTION:
Do not jack up the rear axle beam assembly too high as the vehicle may fall.
NOTICE:
- When jacking up the rear axle beam assembly, be sure to jack it up slowly.
- Make sure to perform this operation with the vehicle kept as low as possible.
- Keep supporting the rear axle beam assembly with a jack until the installation of the rear shock absorber assembly is completed.
(2) Remove the bolt and nut to separate the rear shock absorber assembly while compressing the rear shock absorber assembly.
NOTICE:
Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.
(3) Remove the 2 bolts and rear shock absorber assembly from the vehicle.
3. REMOVE REAR NO. 1 SHOCK ABSORBER CUSHION WASHER
|
*a |
Turn |
*b |
Hold |

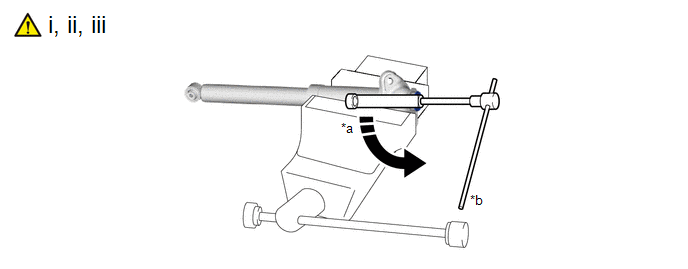

(1) Secure the rear shock absorber assembly in a vise using aluminum plates.
NOTICE:
Do not overtighten the vise.
(2) Using a 6 mm hexagon socket wrench, hold the rear shock absorber rod and remove the rear support to rear shock absorber nut.
(3) Remove the rear No. 1 shock absorber cushion washer from the rear shock absorber assembly.

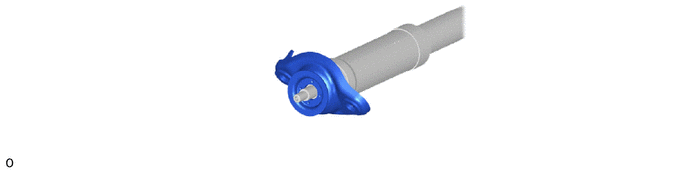

4. REMOVE REAR SUSPENSION SUPPORT

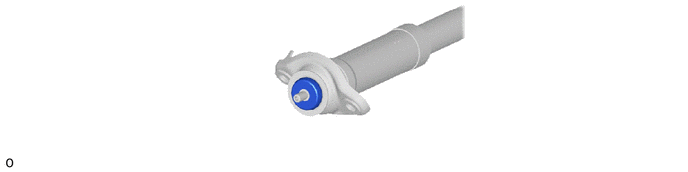

5. REMOVE REAR SUSPENSION SUPPORT ASSEMBLY
6. REMOVE REAR SUSPENSION SUPPORT STOPPER

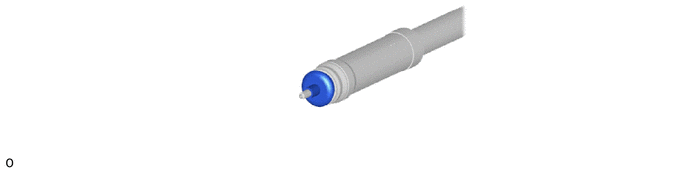

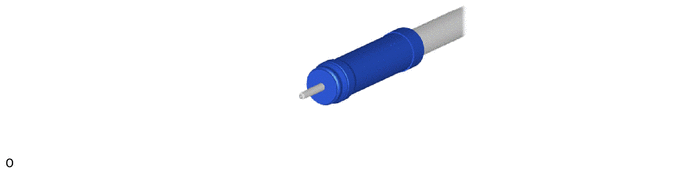

7. REMOVE REAR NO. 1 SPRING BUMPER
