Toyota Corolla Cross: Installation
INSTALLATION
CAUTION / NOTICE / HINT

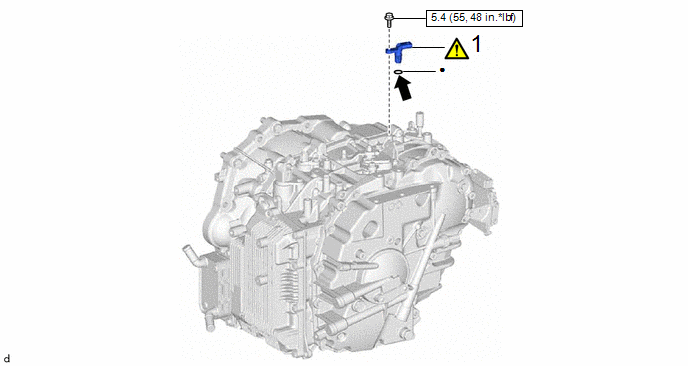

COMPONENTS (INSTALLATION).png)
|
Procedure |
Part Name Code |
.png) |
.png) |
.png) |
|
|---|---|---|---|---|---|
|
1 |
TRANSMISSION REVOLUTION SENSOR (NOUT) |
89413M |
|
- |
- |
.png) |
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
.png) |
Toyota Genuine CVT fluid FE |
- |
- |
.png)
|

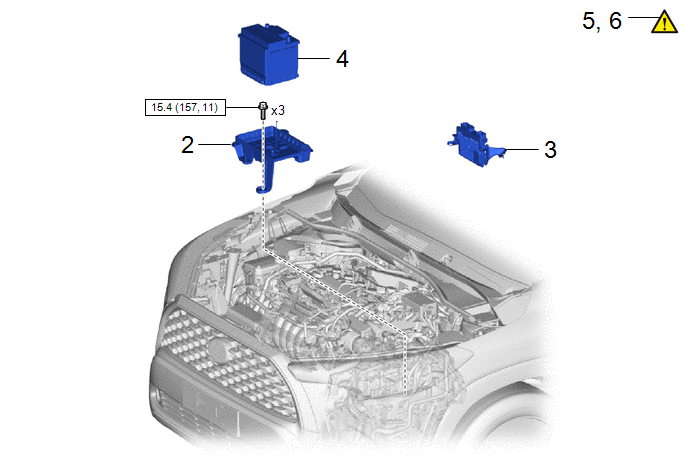

Procedure |
Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
|
2 |
BATTERY CLAMP SUB-ASSEMBLY |
74404A |
- |
- |
- |
|
3 |
ECM |
89661 |
- |
- |
- |
|
4 |
AUXILIARY BATTERY |
- |
- |
- |
- |
|
5 |
INSPECT FOR CONTINUOUSLY VARIABLE TRANSAXLE FLUID LEAK |
- |
|
- |
- |
|
6 |
CHECK DATA LIST |
- |
|
- |
- |
|
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
PROCEDURE

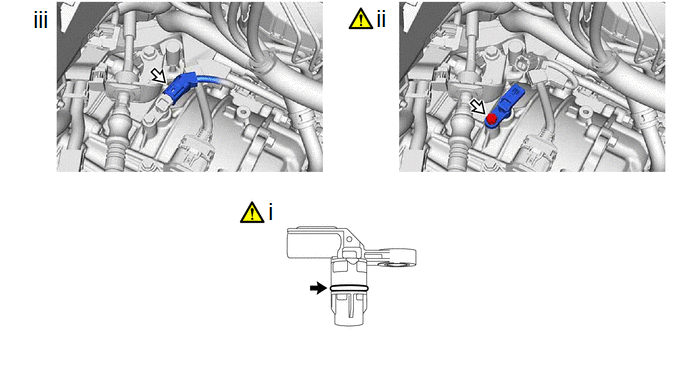

1. INSTALL TRANSMISSION REVOLUTION SENSOR (NOUT)
.png)
|
|
Toyota Genuine CVT fluid FE |
- |
- |
(1) Coat a new O-ring with Toyota Genuine CVT fluid FE and install it to the transmission revolution sensor (NOUT).
NOTICE:
Ensure that the O-ring is not twisted.
(2) Install the transmission revolution sensor (NOUT) to the transaxle case sub-assembly with the bolt.
Torque:
5.4 N·m {55 kgf·cm, 48 in·lbf}
NOTICE:
Be careful not to damage the O-ring.
(3) Connect the transmission revolution sensor (NOUT) connector.
2. INSTALL BATTERY CLAMP SUB-ASSEMBLY
Click here .gif)
3. INSTALL ECM
Click here
4. INSTALL AUXILIARY BATTERY
Click here
5. INSPECT FOR CONTINUOUSLY VARIABLE TRANSAXLE FLUID LEAK
Click here
6. CHECK DATA LIST
Click here
