Toyota Corolla Cross (2022-2024) Service Manual / Suspension / Rear Suspension / Rear Coil Spring (for Awd) / Removal

REMOVAL

CAUTION / NOTICE / HINT

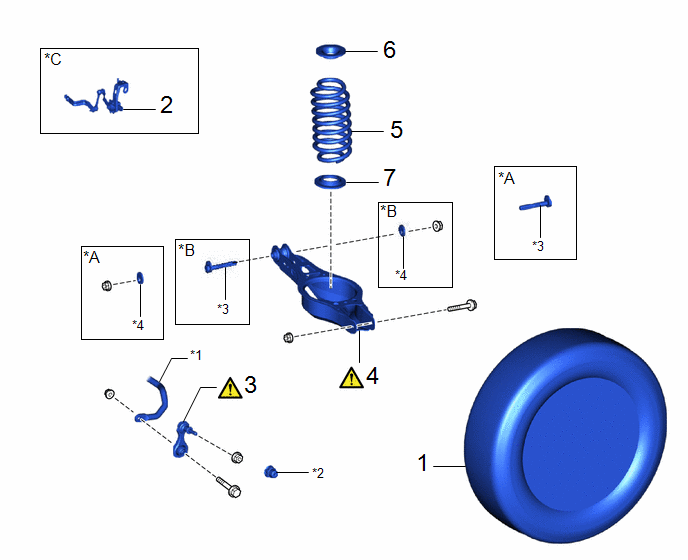

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

REAR WHEEL

-

-

-

-

2

REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH (for LH Side)

89408C

-

-

-

3

REAR STABILIZER LINK ASSEMBLY

48840A

-

-

4

REAR NO. 2 SUSPENSION ARM ASSEMBLY

48740F

-

-

5

REAR COIL SPRING

48231B

-

-

-

6

REAR UPPER COIL SPRING INSULATOR

48471C

-

-

-

7

REAR LOWER COIL SPRING INSULATOR

48259A

-

-

-

*A

for Gasoline Model

*B

for HEV Model

*C

for LH Side

-

-

*1

REAR STABILIZER BAR

*2

CAP

*3

REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY

*4

NO. 2 CAMBER ADJUST CAM

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear coil spring removal/ installation are shown below.

Necessary Procedures After Procedure Performed

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

Rear wheel alignment adjustment

 for HEV Model:
  1. Perform "Reset Memory"
  2. Perform "Calibration"
  • DTCs are stored
  • ABS warning light illuminates
  • Brake system warning light (yellow indicator) illuminates
  • Slip indicator light illuminates
  • Electronically controlled brake system does not operate correctly

for Gasoline Model:
  1. Perform "Reset Memory"
  2. Perform "Calibration"
  • DTCs are stored
  • ABS warning light illuminates
  • Slip indicator light illuminates
  • Electronically controlled brake system does not operate correctly

for Gasoline Model AWD:
  • Perform "Reset Memory"

Dynamic torque control AWD system

Suspension, tires, etc.

Rear television camera assembly optical axis (Back camera position setting)

Parking Assist Monitor System

Initialize headlight ECU subassembly LH

Automatic headlight beam level control system

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE REAR WHEEL

Click here

2. REMOVE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH (for LH Side)

Click here

3. REMOVE REAR STABILIZER LINK ASSEMBLY

Click here

4. SEPARATE REAR NO.2 SUSPENSION ARM ASSEMBLY LH

(a) for Gasoline Model:

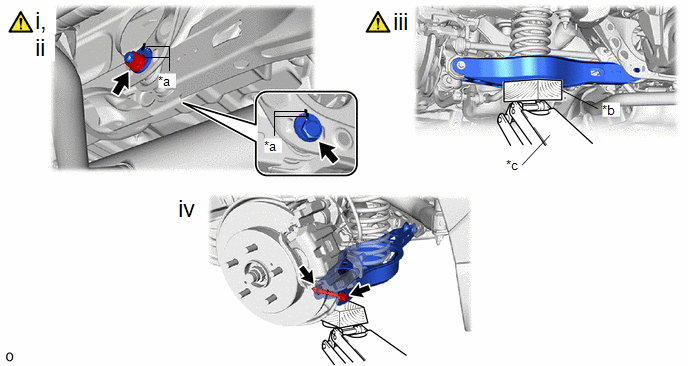

*a

Matchmark

*b

Wooden Block

*c

Jack

-

-

(1) Place matchmarks on the No. 2 camber adjust cam, rear suspension toe adjust cam sub assemblyand rear suspension member sub-assembly.

(2) Loosen the nut (rear suspension member subassembly side) of the rear No. 2 suspension arm assembly.

NOTICE:

Hold the rear suspension toe adjus

(3) Using a jack and a wooden block, support the rear No. 2 suspension arm assembly.

NOTICE:

  • When jacking up the rear No. 2 suspension arm assembly , be sure to jack it up slowly.
  • Make sure to perform this operation with the vehicle kept as low as possible.

(4) Remove the bolt and nut, and separate the rear No. 2 suspension arm assembly (rear axle carrier sub-assembly side) from the rear axle carrier sub assembly.

NOTICE:

Loosen the bolt with the nut secured.

(b) for HEV Model:

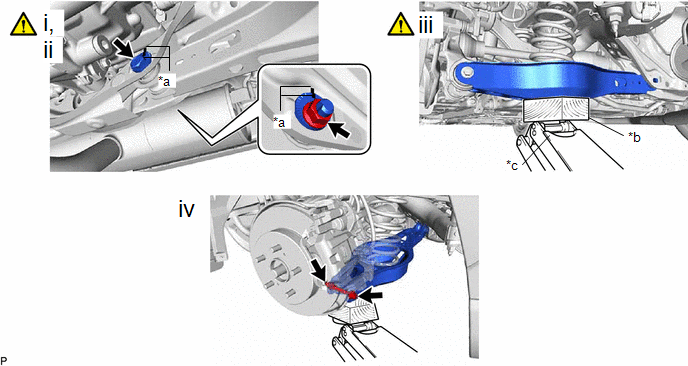

*a

Matchmark

*b

Wooden Block

*c

Jack

-

-

(1) Place matchmarks on the No. 2 camber adjust cam, rear suspension toe adjust cam sub assemblyand rear suspension member sub-assembly.

(2) Loosen the nut (rear suspension member subassembly side) of the rear No. 2 suspension arm assembly.

NOTICE:

Hold the rear suspension toe adjus

(3) Using a jack and a wooden block, support the rear No. 2 suspension arm assembly.

NOTICE:

  • When jacking up the rear No. 2 suspension arm assembly , be sure to jack it up slowly.
  • Make sure to perform this operation with the vehicle kept as low as possible.

(4) Remove the bolt and nut, and separate the rear No. 2 suspension arm assembly (rear axle carrier sub-assembly side) from the rear axle carrier sub assembly.

NOTICE:

Loosen the bolt with the nut secured.

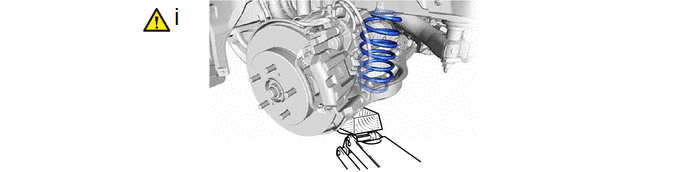

5. REMOVE REAR COIL SPRING

(1) Slowly lower the rear No. 2 suspension arm assembly, and then remove the rear coil spring.

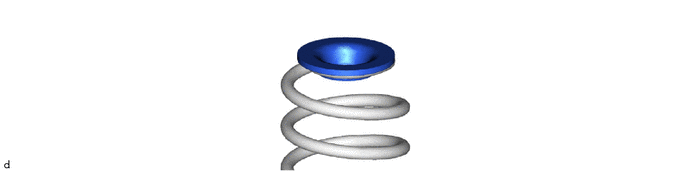

6. REMOVE REAR UPPER COIL SPRING INSULATOR

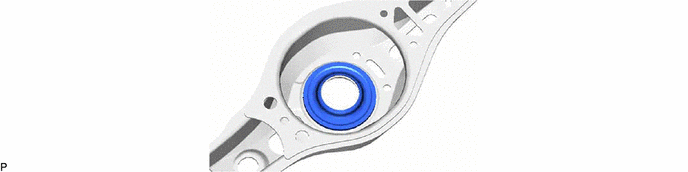

7. REMOVE REAR LOWER COIL SPRING INSULATOR
