REMOVAL
CAUTION / NOTICE / HINT

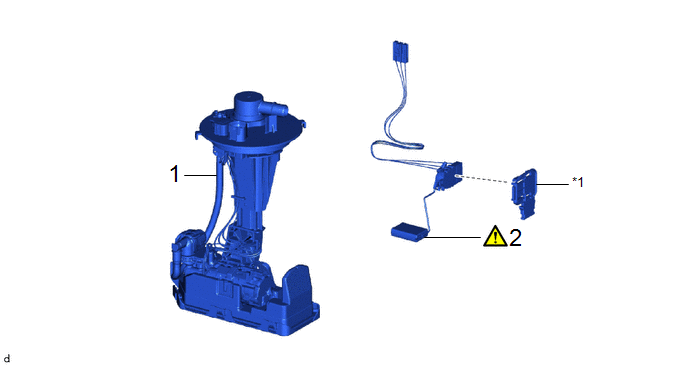

COMPONENTS (REMOVAL)
Procedure | Part Name Code | ||||
---|---|---|---|---|---|
1 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY |
77020A | - |
- | - |
2 | FUEL SENDER GAUGE ASSEMBLY |
83320 |
|
- | - |
*1 | FUEL GAUGE BRACKET |
- | - |
CAUTION / NOTICE / HINT
CAUTION:
NOTICE:
After the ignition switch is turned off, the radio and display receiver assembly records various types of memory and settings. As a result, after turning the ignition switch off, make sure to wait at least 120 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal.
HINT:
When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
Effect/Inoperative Function When Necessary Procedures are not Performed |
Necessary Procedures |
Link |
---|---|---|
Front camera system |
Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. |
|
Stop and start system |
Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes) |
|
Effect/Inoperative Function When Necessary Procedures are not Performed |
Necessary Procedures |
Link |
---|---|---|
Power door lock control system
|
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. |
|
Power back door system |
Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed. |
|
Air conditioning system |
After the ignition switch is turned to ON, the servo motor standard position is recognized. |
- |
PROCEDURE
1. REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY
Click here

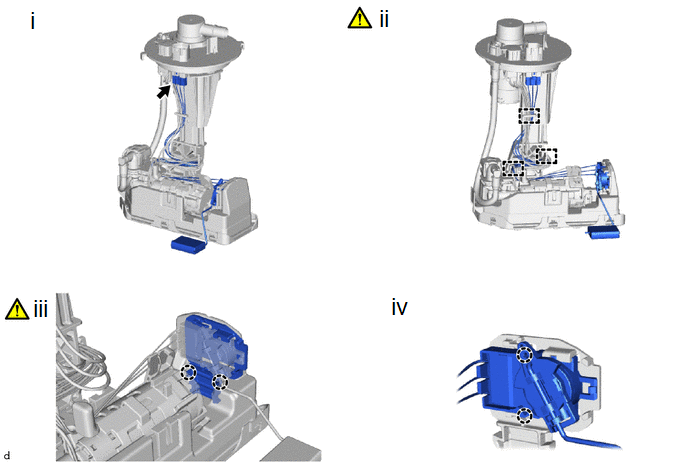

2. REMOVE FUEL SENDER GAUGE ASSEMBLY
(1) Disconnect the fuel sender gauge assembly connector.
(2) Disengage the 3 clamps to disconnect the wire harness from the fuel suction tube with pump and gauge assembly.
NOTICE:
(3) Disengage the 2 claws to remove the fuel gauge bracket with the fuel sender gauge assembly from the fuel suction tube with pump and gauge assembly.
NOTICE:
Be careful not to bend the arm of the fuel sender gauge assembly.
(4) Disengage the 2 claws to remove the fuel sender gauge assembly from the fuel gauge bracket.
