REMOVAL
CAUTION / NOTICE / HINT

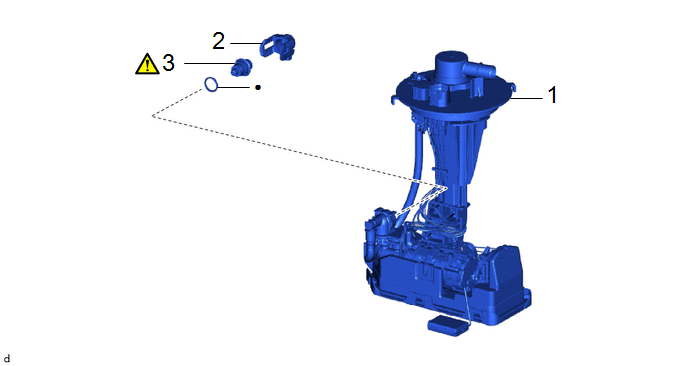

COMPONENTS (REMOVAL)
Procedure | Part Name Code | ||||
---|---|---|---|---|---|
1 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY |
77020A | - |
- | - |
2 | FUEL PRESSURE REGULATOR HOLDER |
23283B | - |
- | - |
3 | FUEL MAIN VALVE ASSEMBLY |
23070 |
|
- | - |
● | Non-reusable part |
- | - |
CAUTION / NOTICE / HINT
CAUTION:
HINT:
When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
Effect/Inoperative Function When Necessary Procedures are not Performed |
Necessary Procedures |
Link |
---|---|---|
Front camera system |
Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. |
|
Stop and start system |
Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes) |
|
Effect/Inoperative Function When Necessary Procedures are not Performed |
Necessary Procedures |
Link |
---|---|---|
Power door lock control system
|
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. |
|
Power back door system |
Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed. |
|
Air conditioning system |
After the ignition switch is turned to ON, the servo motor standard position is recognized. |
- |
PROCEDURE
1. REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY
Click here

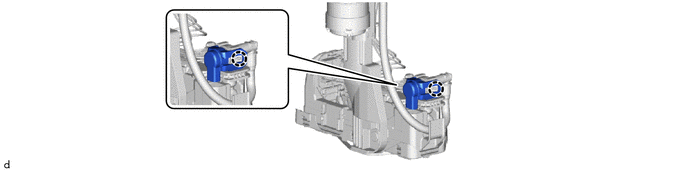

2. REMOVE FUEL PRESSURE REGULATOR HOLDER
3. REMOVE FUEL MAIN VALVE ASSEMBLY
*1 | O-ring |
- | - |
*a | Mesh |
*b | Mini-clip |
(1) Using a screwdriver with its tip wrapped with protective tape, remove the fuel main valve assembly from the fuel suction tube with pump and gauge assembly.
NOTICE:
(2) Remove the O-ring from the fuel main valve assembly.
NOTICE:
Do not remove the mesh and mini-clip from the fuel main valve assembly.
