Toyota Corolla Cross: Removal
REMOVAL
CAUTION / NOTICE / HINT

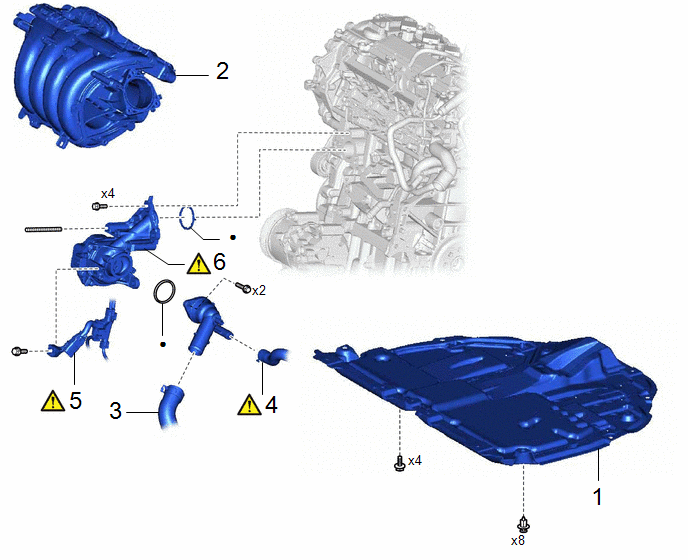

COMPONENTS (REMOVAL)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | NO. 1 ENGINE UNDER COVER ASSEMBLY |
51410 | - |
- | - |
|
2 | INTAKE MANIFOLD |
17111 | - |
- | - |
|
3 | NO. 2 RADIATOR HOSE |
16572D | - |
- | - |
|
4 | NO. 7 WATER BY-PASS HOSE |
- |
|
- | - |
|
5 | SENSOR WIRE |
82219C |
|
- | - |
|
6 | ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING) |
16032 |
|
- | - |
|
● | Non-reusable part |
- | - |
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during engine water pump assembly (water inlet housing) removal/installation are shown below.
Necessary Procedures After Parts Removed/Installed/Replaced|
Replaced Part or Performed Procedure |
Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed |
Link |
|---|---|---|---|
| Inspection after repair |
|
|
NOTICE:
This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
Click here .gif)
PROCEDURE
1. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY
Click here
2. REMOVE INTAKE MANIFOLD
Click here
3. DISCONNECT NO. 2 RADIATOR HOSE
Click here

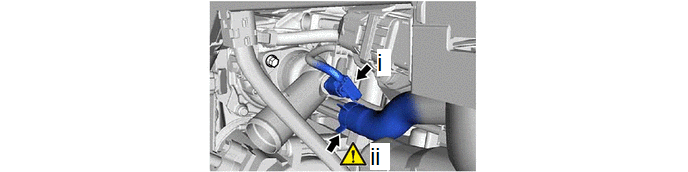

4. DISCONNECT NO. 7 WATER BY-PASS HOSE
(1) Disconnect the water inlet with thermostat sub-assembly connector.
(2) Slide the clip and disconnect the No. 7 water by-pass hose from the water inlet with thermostat sub-assembly.
NOTICE:
- Do not apply force to the water inlet with thermostat sub-assembly when disconnecting the No. 7 water by-pass hose.
- Do not damage the water inlet with thermostat sub-assembly.
HINT:
When disconnecting the No. 7 water by-pass hose, slide the clip, rotate the hose and pull it straight off the pipe.

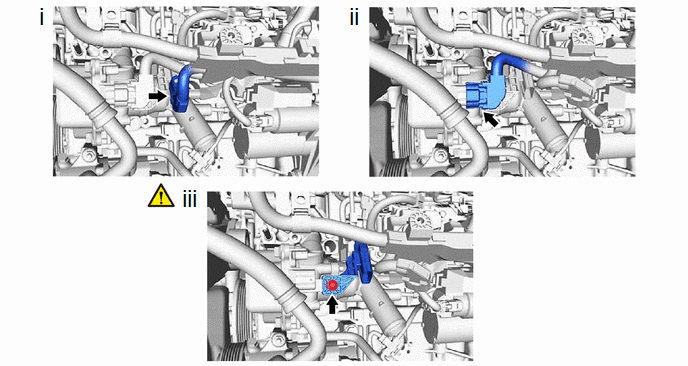

5. DISCONNECT SENSOR WIRE
(1) Disconnect the sensor wire connector.
(2) Disconnect the engine water pump assembly (water inlet housing) connector.
(3) Using an 8 mm socket wrench, remove the bolt and disconnect the sensor wire from the engine water pump assembly (water inlet housing).

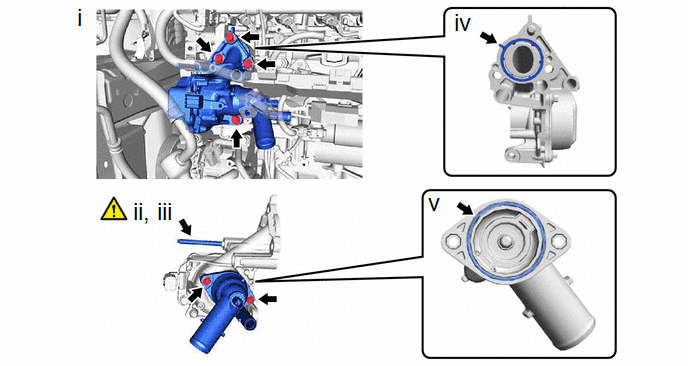

6. REMOVE ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING)
(1) Remove the 4 bolts and engine water pump assembly (water inlet housing) from the cylinder block assembly.
(2) Using an 8 mm socket wrench, remove the 2 bolts and water inlet with thermostat sub-assembly.
(3) Remove the gasket from the water inlet with thermostat sub-assembly.
(4) Remove the gasket from the engine water pump assembly (water inlet housing).
(5) Using an E8 "TORX" socket wrench, remove the stud bolt.
