Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

COMPONENTS (REMOVAL)

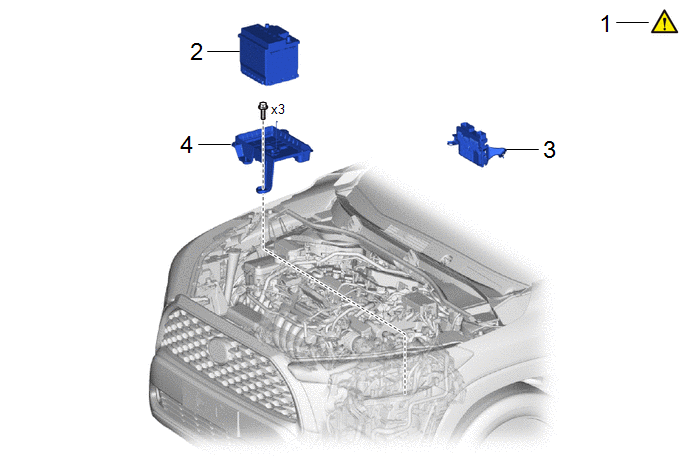

Procedure

Part Name Code

1

SECURE VEHICLE

-

-

-

2

AUXILIARY BATTERY

-

-

-

-

3

ECM

89661

-

-

-

4

BATTERY CLAMP SUB-ASSEMBLY

74404A

-

-

-

Procedure

Part Name Code

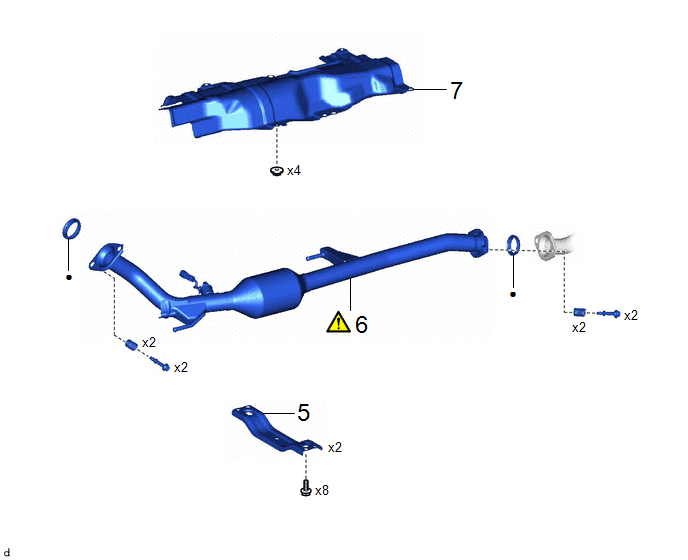

5

FRONT FLOOR CENTER BRACE

57533B

-

-

-

6

FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)

17410

-

-

7

FRONT LOWER NO. 1 FLOOR HEAT INSULATOR

58152A

-

-

-

Non-reusable part

-

-

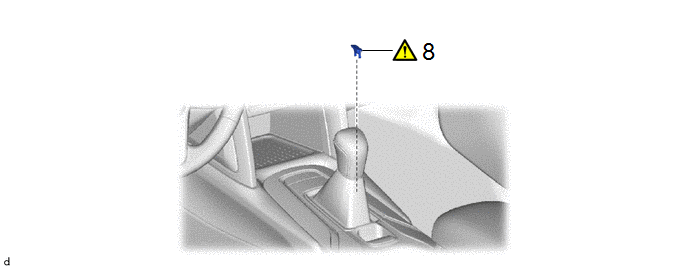

Procedure

Part Name Code

8

SHIFT LOCK RELEASE BUTTON COVER

33554C

-

-

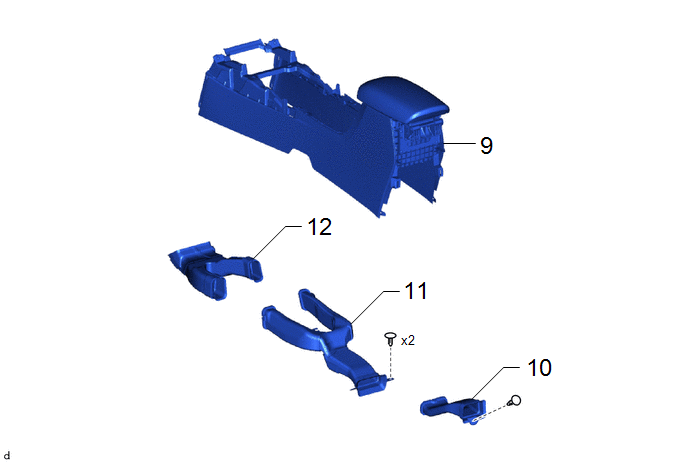

Procedure

Part Name Code

9

CONSOLE BOX ASSEMBLY

58810J

-

-

-

10

NO. 3 CONSOLE BOX DUCT

58863A

-

-

-

11

NO. 2 CONSOLE BOX DUCT

58862B

-

-

-

12

NO. 1 CONSOLE BOX DUCT

58861B

-

-

-

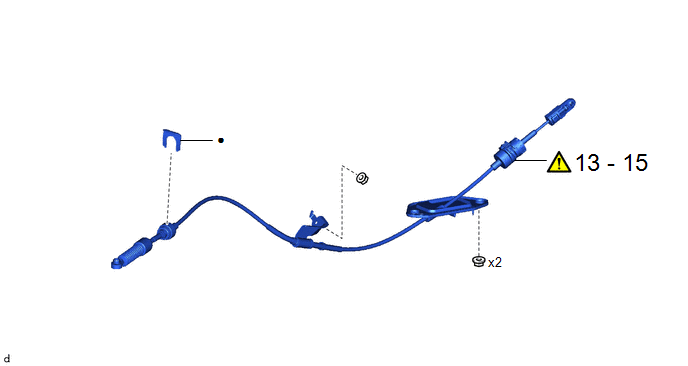

Procedure

Part Name Code

13

DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY (Shift Lever Side)

33820B

-

-

14

DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY (Transaxle Side)

33820B

-

-

15

REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY

33820B

-

-

-

Non-reusable part

-

-

CAUTION / NOTICE / HINT

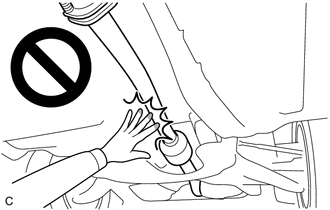

CAUTION:

  • When the engine is hot, do not touch high-temperature areas such as the engine or exhaust pipe.
  • Touching high-temperature areas such as the engine and exhaust pipe could result in burns.

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

  • Learning completes when vehicle is driven

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Front camera system

    Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.

    Stop and start system

    Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)

  • Learning completes when vehicle is operated normally

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Power door lock control system

    • Back door opener

    Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

    Power back door system

    Fully close the back door by hand.

    HINT:

    Initialization is not necessary if the above procedures are performed while the back door is closed.

    Air conditioning system

    After the ignition switch is turned to ON, the servo motor standard position is recognized.

    -

PROCEDURE

1. SECURE VEHICLE

Click here

2. REMOVE AUXILIARY BATTERY

Click here

3. REMOVE ECM

Click here

4. REMOVE BATTERY CLAMP SUB-ASSEMBLY

Click here

5. REMOVE FRONT FLOOR CENTER BRACE

Click here

6. REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)

Click here

7. REMOVE FRONT LOWER NO. 1 FLOOR HEAT INSULATOR

Click here

8. REMOVE SHIFT LOCK RELEASE BUTTON COVER

Click here

9. REMOVE CONSOLE BOX ASSEMBLY

Click here

10. REMOVE NO. 3 CONSOLE BOX DUCT

Click here

11. REMOVE NO. 2 CONSOLE BOX DUCT

Click here

12. REMOVE NO. 1 CONSOLE BOX DUCT

Click here

13. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY (Shift Lever Side)

Click here

14. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY (Transaxle Side)

Click here

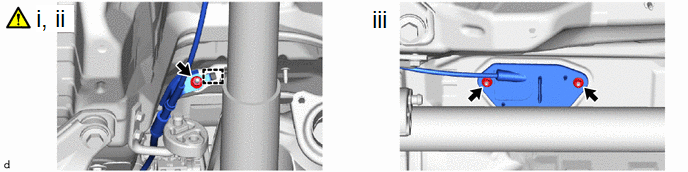

15. REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY

(1) Remove the nut.

(2) Disengage the guide to separate the transmission control cable assembly from the vehicle body.

(3) Remove the 2 nuts and transmission control cable assembly from the vehicle body.
