Toyota Corolla Cross: Installation

Toyota Corolla Cross (2022-2024) Service Manual / Drivetrain / K120f (cvt) / Transmission Control Cable / Installation

INSTALLATION

CAUTION / NOTICE / HINT

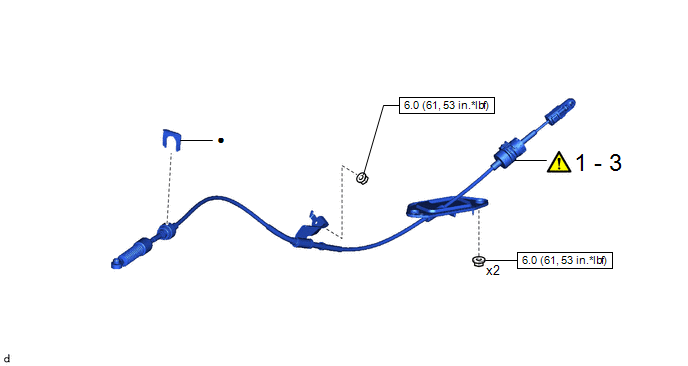

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY

33820B

-

-

-

2

CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY (Transaxle Side)

33820B

-

-

3

CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY (Shift Lever Side)

33820B

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

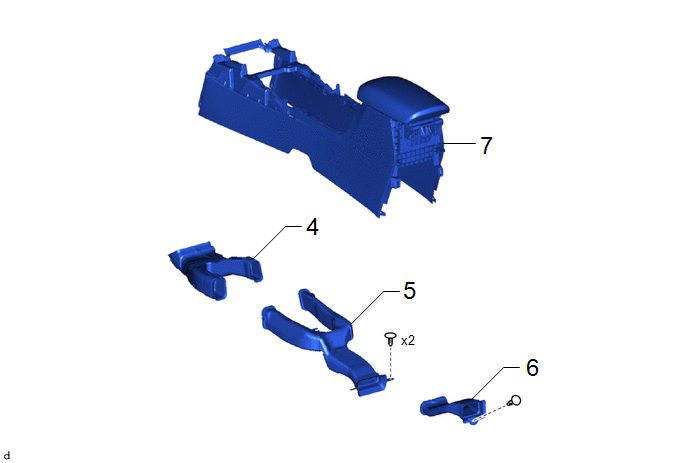

Procedure

Part Name Code

4

NO. 1 CONSOLE BOX DUCT

58861B

-

-

-

5

NO. 2 CONSOLE BOX DUCT

58862B

-

-

-

6

NO. 3 CONSOLE BOX DUCT

58863A

-

-

-

7

CONSOLE BOX ASSEMBLY

58810J

-

-

-

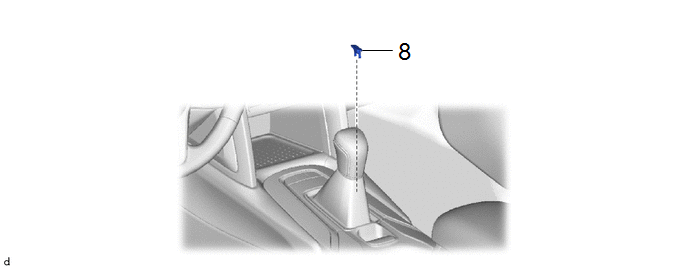

Procedure

Part Name Code

8

SHIFT LOCK RELEASE BUTTON COVER

33554C

-

-

-

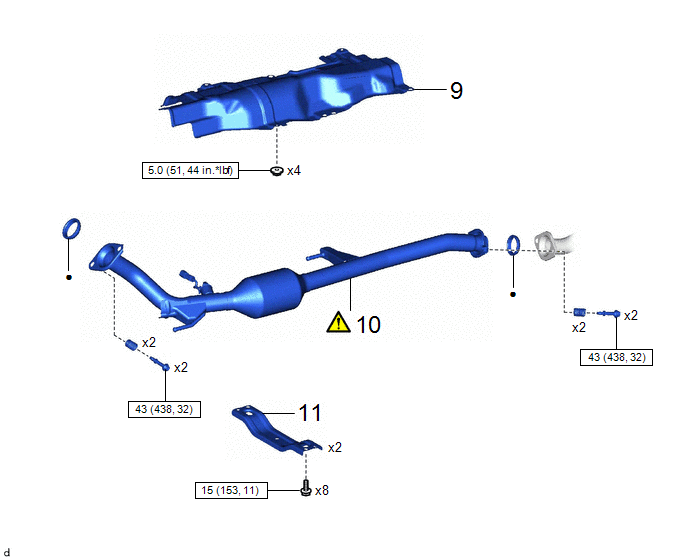

Procedure

Part Name Code

9

FRONT LOWER NO. 1 FLOOR HEAT INSULATOR

58152A

-

-

-

10

FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)

17410

-

-

11

FRONT FLOOR CENTER BRACE

57533B

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

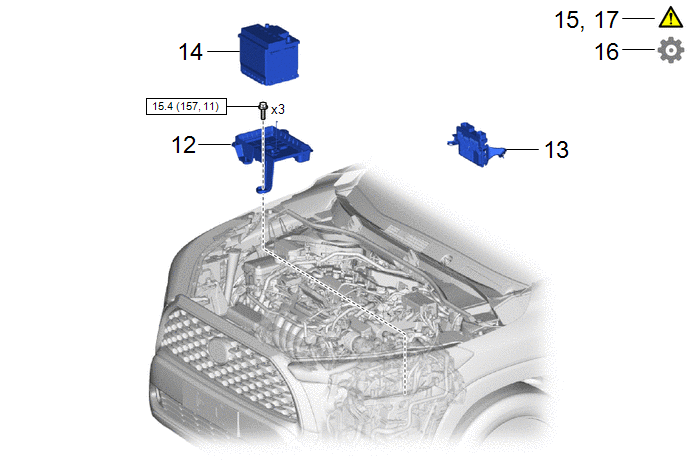

Procedure

Part Name Code

12

BATTERY CLAMP SUB-ASSEMBLY

74404A

-

-

-

13

ECM

89661

-

-

-

14

AUXILIARY BATTERY

-

-

-

-

15

INSPECT SHIFT LEVER POSITION

-

-

-

16

ADJUST SHIFT LEVER POSITION

-

-

-

17

INSPECT FOR EXHAUST GAS LEAK

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

PROCEDURE

1. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY

Torque:

6.0 N·m {61 kgf·cm, 53 in·lbf}

2. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY (Transaxle Side)

Click here

3. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY (Shift Lever Side)

Click here

4. INSTALL NO. 1 CONSOLE BOX DUCT

5. INSTALL NO. 2 CONSOLE BOX DUCT

6. INSTALL NO. 3 CONSOLE BOX DUCT

7. INSTALL CONSOLE BOX ASSEMBLY

Click here

8. INSTALL SHIFT LOCK RELEASE BUTTON COVER

9. INSTALL FRONT LOWER NO. 1 FLOOR HEAT INSULATOR

Click here

10. INSTALL FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)

Click here

11. INSTALL FRONT FLOOR CENTER BRACE

Click here

12. INSTALL BATTERY CLAMP SUB-ASSEMBLY

Click here

13. INSTALL ECM

Click here

14. INSTALL AUXILIARY BATTERY

Click here

15. INSPECT SHIFT LEVER POSITION

Click here

16. ADJUST SHIFT LEVER POSITION

Click here

17. INSPECT FOR EXHAUST GAS LEAK

Click here
