Toyota Corolla Cross: Transmission Wire

Removal

REMOVAL

CAUTION / NOTICE / HINT

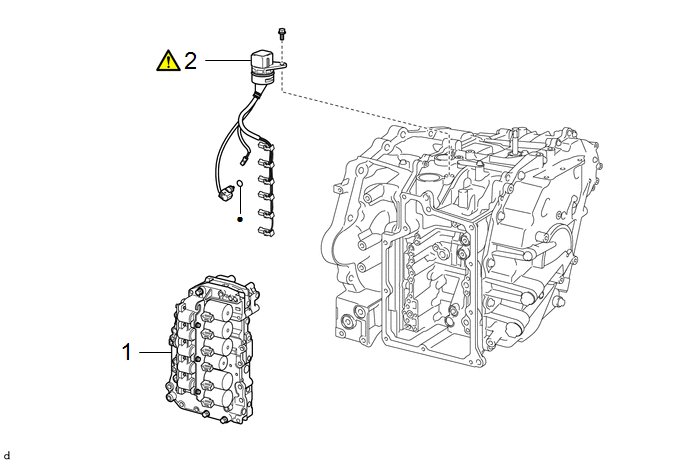

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

TRANSMISSION VALVE BODY ASSEMBLY

35410J

-

-

-

2

TRANSMISSION WIRE

82125M

-

-

Non-reusable part

-

-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the transmission wire removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced

Replacement Part or Procedure

Necessary Procedures

Effect/Inoperative Function When Necessary Procedures are not Performed

Link

CVT fluid

ATF thermal degradation estimate reset

The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly

Bleed air from oil pump (continuously variable transaxle assembly)

Stop and start system

PROCEDURE

1. REMOVE TRANSMISSION VALVE BODY ASSEMBLY

Click here

2. REMOVE TRANSMISSION WIRE

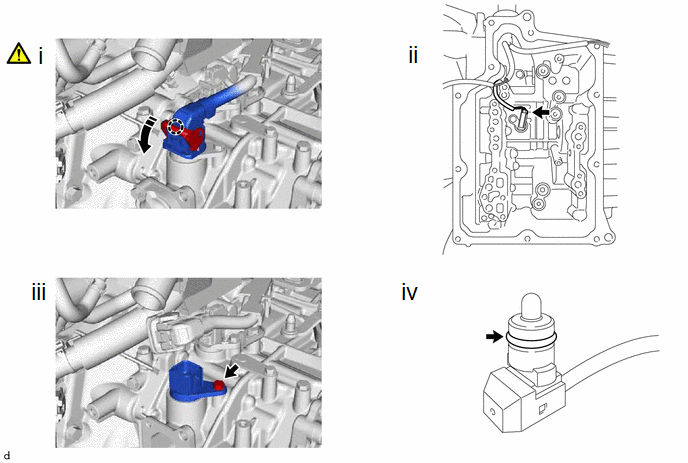

(1) Disengage the claw, rotate the lever and disconnect the connector.

(2) Disconnect the connector.

(3) Remove the bolt and transmission wire from the transaxle case sub-assembly.

(4) Remove the O-ring from the temperature sensor.

Installation

INSTALLATION

CAUTION / NOTICE / HINT

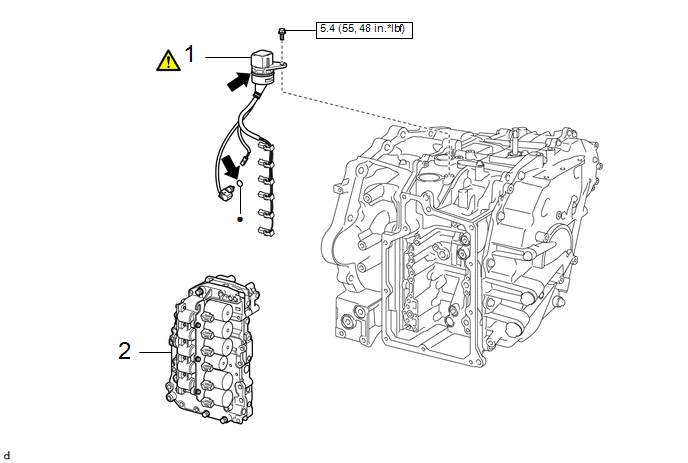

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

TRANSMISSION WIRE

82125M

-

-

2

TRANSMISSION VALVE BODY ASSEMBLY

35410J

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

Toyota Genuine CVT Fluid FE

-

-

PROCEDURE

1. INSTALL TRANSMISSION WIRE

Toyota Genuine CVT Fluid FE

-

-

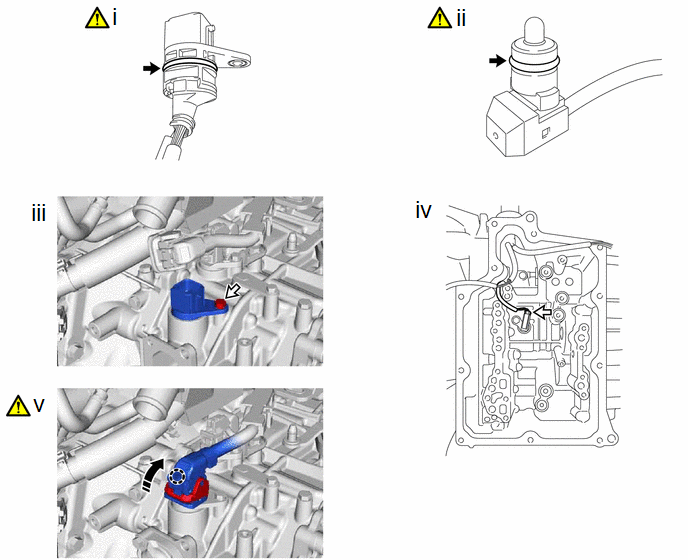

(1) Coat the O-ring of the transmission wire with Toyota Genuine CVT fluid FE.

NOTICE:

If reusing the transmission wire, check that the O-ring is not damaged.

(2) Coat a new O-ring with Toyota Genuine CVT fluid FE and install it to the temperature sensor.

NOTICE:

Ensure that the O-ring is not twisted.

(3) Install the transmission wire to the transaxle case sub-assembly with the bolt.

Torque:

5.4 N·m {55 kgf·cm, 48 in·lbf}

(4) Connect the connector.

(5) Connect the connector and rotate the lever and engage the claw.

NOTICE:

Rotate the lever until the claw of the connector makes a click sound.

2. INSTALL TRANSMISSION VALVE BODY ASSEMBLY

Click here
