Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

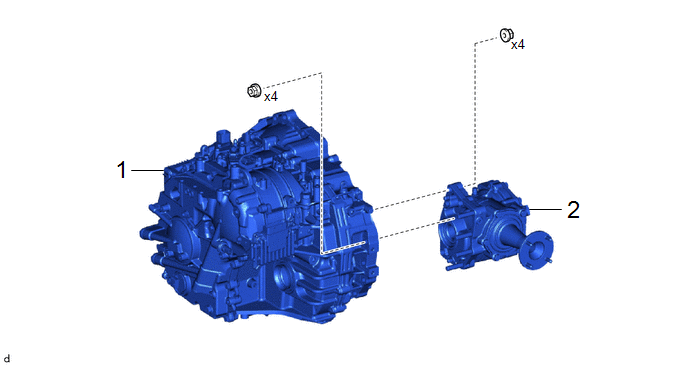

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

CONTINUOUSLY VARIABLE TRANSAXLE ASSEMBLY

30400

-

-

-

2

TRANSFER ASSEMBLY

36100

-

-

-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the transfer assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replacement Part or Procedure

Necessary Procedures

Effect/Inoperative Function When Necessary Procedures are not Performed

Link

CVT fluid

ATF thermal degradation estimate reset

The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly

Bleed air from oil pump (continuously variable transaxle assembly)

Stop and start system

Front wheel alignment adjustment

  • Perform "Reset Memory"
  • Perform "Calibration"
  • DTCs are stored
  • ABS warning light illuminates
  • Slip indicator light illuminates
  • Electronically controlled brake system does not operate correctly

Reset memory

Dynamic torque control AWD system

No. 2 steering intermediate shaft assembly

End position initial setting

Power steering system

Suspension, tires, etc.

Rear television camera assembly optical axis (Back camera position setting)

Parking assist monitor system

Initialize headlight ECU sub-assembly LH

Automatic headlight beam level control system

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

  • Learning completes when vehicle is driven

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Front camera system

    Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.

    Stop and start system

    Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)

  • Learning completes when vehicle is operated normally

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Power door lock control system

    • Back door opener

    Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

    Power back door system

    Fully close the back door by hand.

    HINT:

    Initialization is not necessary if the above procedures are performed while the back door is closed.

    Air conditioning system

    After the ignition switch is turned to ON, the servo motor standard position is recognized.

    -

PROCEDURE

1. REMOVE CONTINUOUSLY VARIABLE TRANSAXLE ASSEMBLY

Click here

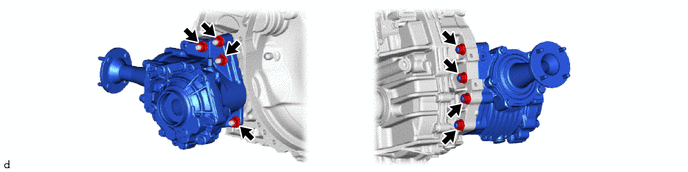

2. REMOVE TRANSFER ASSEMBLY
