Toyota Corolla Cross: Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

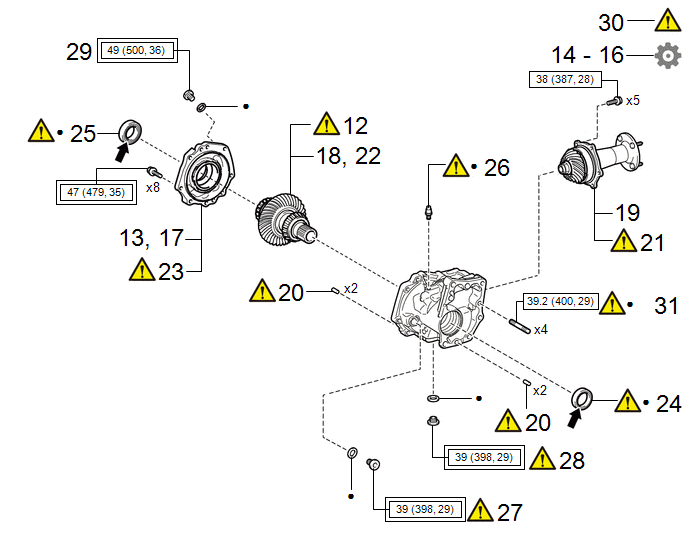

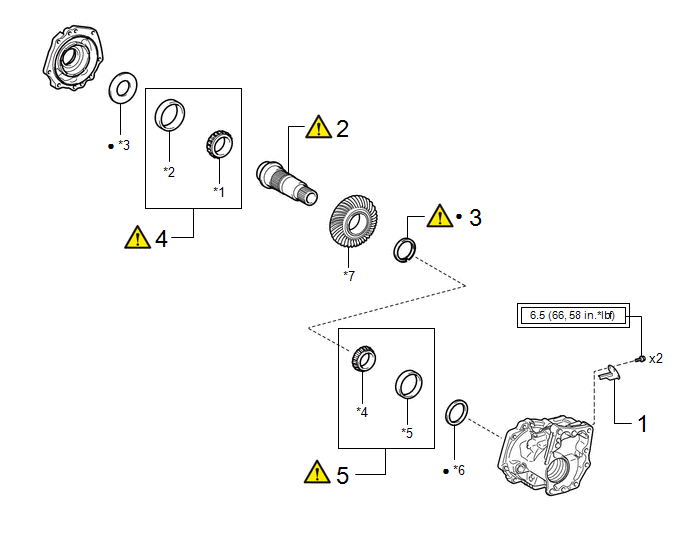

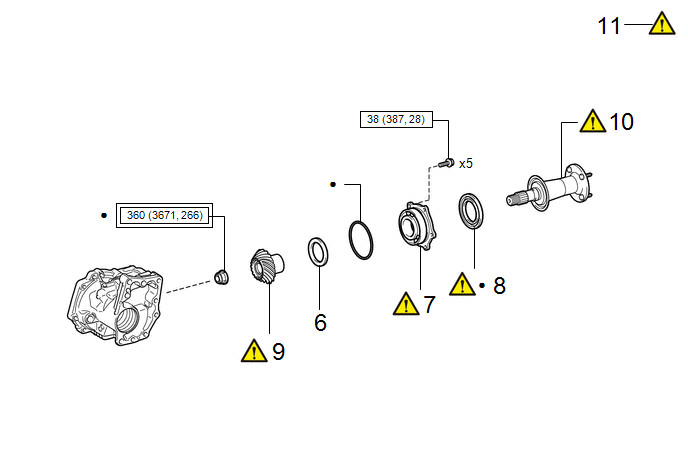

COMPONENTS (REASSEMBLY)

Procedure		Part Name Code
1	BREATHER OIL DEFLECTOR	36128B	-	-	-
2	TRANSFER RING GEAR MOUNTING CASE	41319		-	-
3	SHAFT SNAP RING	36212L		-	-
4	RING GEAR MOUNTING CASE BEARING RH	41301H		-	-
5	RING GEAR MOUNTING CASE BEARING LH	41301H		-	-

*1	RING GEAR MOUNTING CASE BEARING RH (INNER RACE)	*2	RING GEAR MOUNTING CASE BEARING RH (OUTER RACE)
*3	NO. 2 TRANSFER RING GEAR MOUNTING CASE WASHER	*4	RING GEAR MOUNTING CASE BEARING LH (INNER RACE)
*5	RING GEAR MOUNTING CASE BEARING LH (OUTER RACE)	*6	NO. 1 RING GEAR MOUNTING CASE WASHER
*7	TRANSFER RING GEAR	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)	●	Non-reusable part

Procedure		Part Name Code
6	TRANSFER OUTPUT SHAFT WASHER	36275E	-	-	-
7	TRANSFER BEARING ASSEMBLY	36250		-	-
8	REAR TRANSFER OUTPUT SHAFT DUST DEFLECTOR	33325A		-	-
9	TRANSFER DRIVEN PINION	-		-	-
10	INSTALL REAR TRANSFER OUTPUT SHAFT SUB-ASSEMBLY	36202		-	-
11	INSPECT DRIVEN PINION PRELOAD	-		-	-

	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)		N*m (kgf*cm, ft.*lbf): Specified torque
●	Non-reusable part	-	-

Procedure		Part Name Code
12	INSTALL TRANSFER RING GEAR	-		-	-
13	INSTALL NO. 1 TRANSFER CASE COVER	36121	-	-	-
14	ADJUST RING GEAR BACKLASH	-	-	-
15	ADJUST TOTAL PRELOAD	-	-	-
16	ADJUST TOOTH CONTACT BETWEEN RING GEAR AND DRIVE PINION	-	-	-
17	REMOVE NO. 1 TRANSFER CASE COVER	36121	-	-	-
18	REMOVE TRANSFER RING GEAR	-	-	-	-
19	REMOVE REAR TRANSFER OUTPUT SHAFT SUB-ASSEMBLY	36202	-	-	-

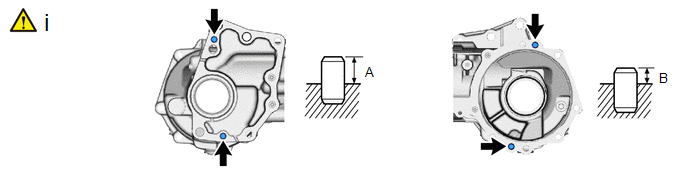

20	TRANSFER CASE STRAIGHT PIN	36111G		-	-
21	INSTALL REAR TRANSFER OUTPUT SHAFT SUB-ASSEMBLY	36202		-	-
22	INSTALL TRANSFER RING GEAR	-	-	-	-
23	INSTALL NO. 1 TRANSFER CASE COVER	36121		-	-
24	TRANSFER CASE OIL SEAL	36111B		-	-
25	TRANSFER CASE OIL SEAL RH	36113D		-	-
26	TRANSFER CASE BREATHER PLUG	36111H		-	-
27	TRANSFER FILLER PLUG	36114L		-	-
28	TRANSFER DRAIN PLUG	36114F		-	-
29	NO. 1 TRANSFER CASE PLUG	36114B	-	-	-
30	TRANSFER ASSEMBLY	36100		-	-
31	TRANSFER AND TRANSAXLE SETTING STUD BOLT	36100A		-	-

	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)		N*m (kgf*cm, ft.*lbf): Specified torque
●	Non-reusable part		MP grease
★	Precoated part	-	-

CAUTION / NOTICE / HINT

NOTICE:

Steps 9 to 16 are temporary reassembly procedures for adjustment purposes.

PROCEDURE

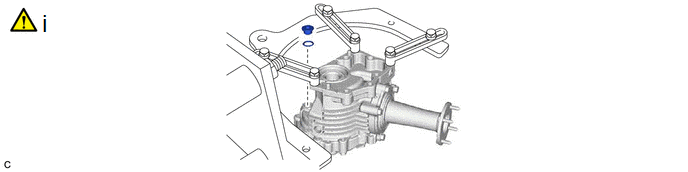

1. INSTALL BREATHER OIL DEFLECTOR

Torque:

6.5 N·m {66 kgf·cm, 58 in·lbf}

2. INSTALL TRANSFER RING GEAR MOUNTING CASE

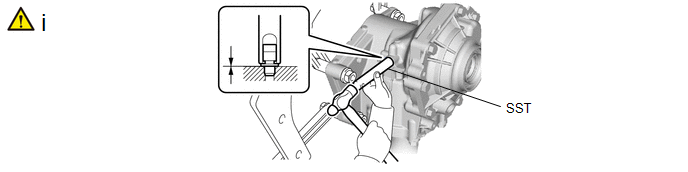

(1) Using SST and a press, press the transfer ring gear mounting case into the transfer ring gear.

SST: 09316-12010

SST: 09950-60011

09951-00560

NOTICE:

Do not put stress on the teeth of the transfer ring gear.

3. INSTALL SHAFT SNAP RING

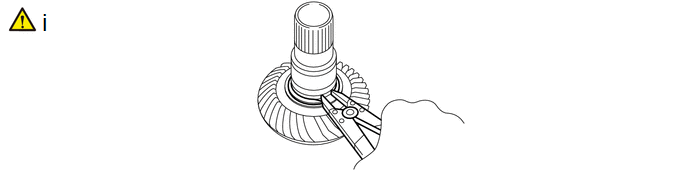

(1) Using a snap ring expander, install a new shaft snap ring.

4. INSTALL RING GEAR MOUNTING CASE BEARING RH

*1

Ring Gear Mounting Case Bearing RH (Outer Race)

*2

No. 2 Transfer Ring Gear Mounting Case Washer

(1) Install a new No. 2 transfer ring gear mounting case washer to the No. 1 transfer case cover.

HINT:

Install a No. 2 transfer ring gear mounting case washer with the same thickness as the one before the disassembly.

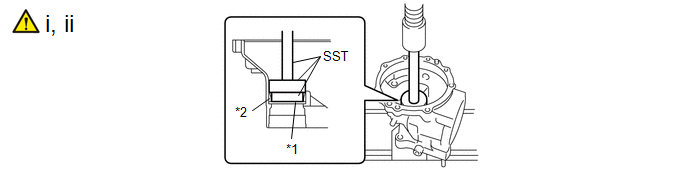

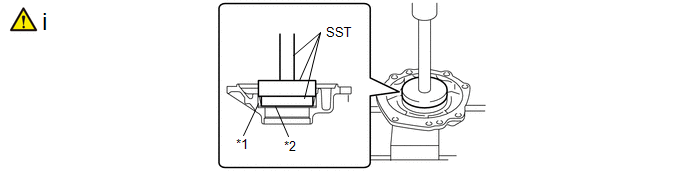

(2) Using SST and a press, press the ring gear mounting case bearing RH (outer race) into the No. 1 transfer case cover.

SST: 09950-60021

09951-00750

09952-06010

SST: 09950-70010

09951-07150

SST: 09951-00850

NOTICE:

• Press in the ring gear mounting case bearing RH (outer race) and No. 2 transfer ring gear mounting case washer until they fit to the edge.
• Do not put stress on the rolling contact surface of the ring gear mounting case bearing RH (outer race).

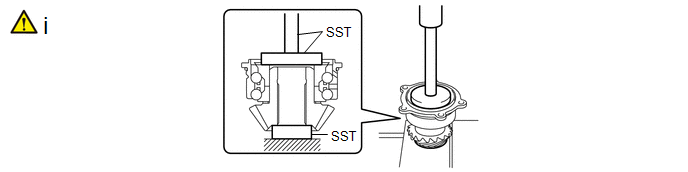

(1) Using SST and a press, press the ring gear mounting case bearing RH (inner race) into the transfer ring gear mounting case.

SST: 09950-60011

09951-00440

09951-00650

NOTICE:

Do not deform the ring gear mounting case bearing RH (inner race) cage.

HINT:

When reusing the ring gear mounting case bearing RH, coat the ring gear mounting case bearing RH with Toyota genuine differential gear oil LT 75W-85 GL-5 or equivalent.

5. INSTALL RING GEAR MOUNTING CASE BEARING LH

*1

No. 1 Ring Gear Mounting Case Washer

*2

Ring Gear Mounting Case Bearing LH (Outer Race)

(1) Install a new No. 1 ring gear mounting case washer to the transfer case.

HINT:

Install a No. 1 ring gear mounting case washer with the same thickness as the one before the disassembly.

(2) Using SST and a press, press the ring gear mounting case bearing LH (outer race) into the transfer case.

SST: 09950-60011

09951-00570

09951-00650

09952-06010

SST: 09950-70010

09951-07150

NOTICE:

• Press in the ring gear mounting case bearing LH (outer race) and No. 1 ring gear mounting case washer until they fit to the edge.
• Do not put stress on the rolling contact surface of the ring gear mounting case bearing LH (outer race).

(1) Using SST and a press, press the ring gear mounting case bearing LH (inner race) into the transfer ring gear mounting case.

SST: 09336-16010

SST: 09950-60011

09951-00560

NOTICE:

Do not deform the ring gear mounting case bearing LH (inner race) cage.

HINT:

When reusing the ring gear mounting case bearing LH, coat the ring gear mounting case bearing LH with Toyota genuine differential gear oil LT 75W-85 GL-5 or equivalent.

6. INSTALL TRANSFER OUTPUT SHAFT WASHER

7. INSTALL TRANSFER BEARING ASSEMBLY

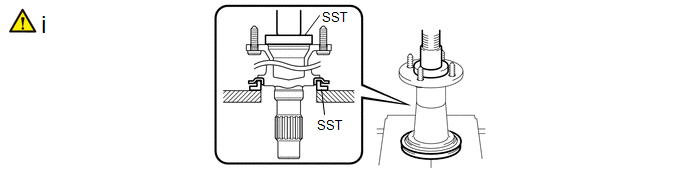

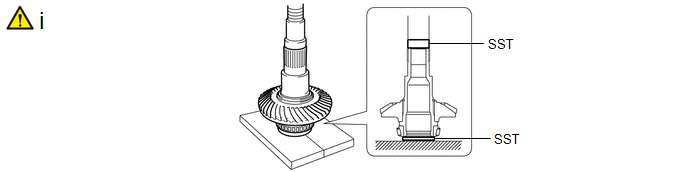

(1) Using SST and a press, press the front transfer driven pinion bearing into the transfer driven pinion.

SST: 09950-60011

09951-00440

SST: 09950-60021

09951-00750

SST: 09950-70010

09951-07150

NOTICE:

Do not apply stress to any parts of the front transfer driven pinion bearing inner race or transfer driven pinion other than the flat surfaces.

8. INSTALL REAR TRANSFER OUTPUT SHAFT DUST DEFLECTOR

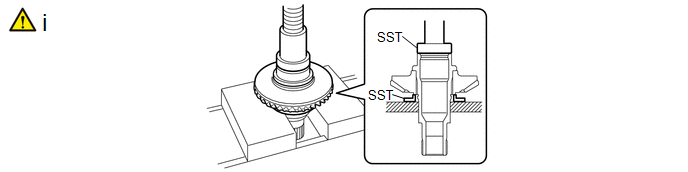

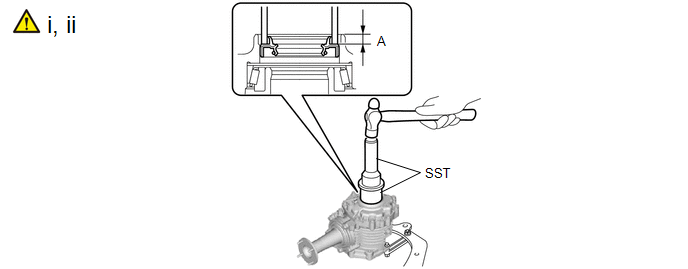

(1) Using SST and a press, press a new rear transfer output shaft dust deflector into the rear transfer output shaft sub-assembly.

SST: 09316-12010

SST: 09950-60021

09951-00680

NOTICE:

The rear transfer output shaft dust deflector should be installed completely.

9. INSTALL TRANSFER DRIVEN PINION

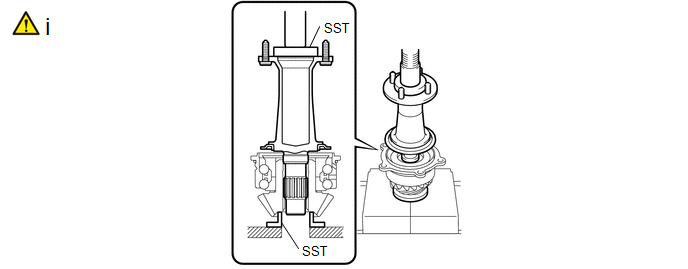

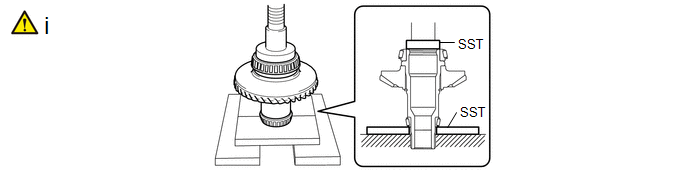

(1) Using SST and a press, press the rear transfer output shaft sub-assembly into the transfer driven pinion.

SST: 09506-30012

SST: 09950-60021

09951-00680

NOTICE:

Do not apply stress to any parts of the transfer output shaft flange or transfer driven pinion other than the flat surfaces.

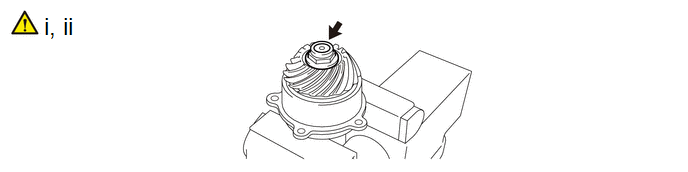

(1) Secure the rear transfer output shaft sub-assembly in a vise between aluminum plates.

NOTICE:

Do not overtighten the vise.

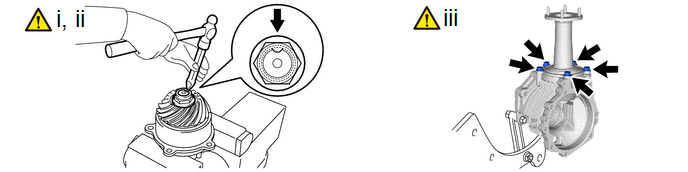

(2) Using a 30 mm socket wrench, install a new transfer gear nut to the rear transfer output shaft sub-assembly.

Torque:

360 N·m {3671 kgf·cm, 266 ft·lbf}

10. INSTALL REAR TRANSFER OUTPUT SHAFT SUB-ASSEMBLY

*1

O-ring

-

-

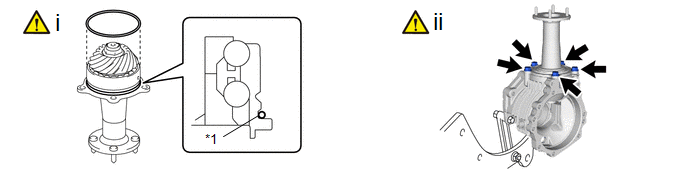

(1) Install a new O-ring to the front transfer driven pinion bearing.

NOTICE:

• Do not damage, deform or crack the O-ring.
• Firmly install the O-ring into the groove of the front transfer driven pinion bearing.

(2) Install the rear transfer output shaft sub-assembly to the transfer case with the 5 bolts.

Torque:

38 N·m {387 kgf·cm, 28 ft·lbf}

NOTICE:

Do not damage, deform or crack the O-ring.

11. INSPECT DRIVEN PINION PRELOAD

*a

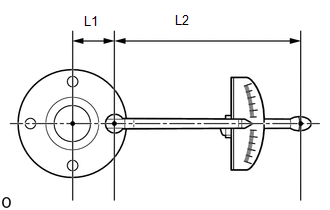

Torque Wrench Fulcrum Length

*b

Double Nut

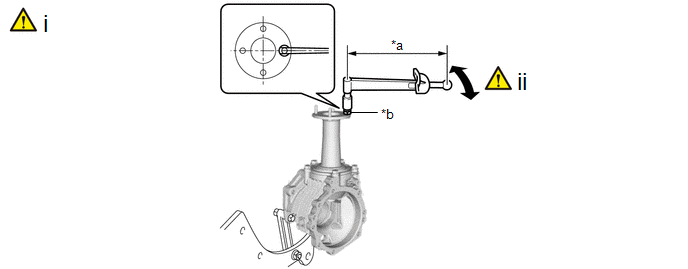

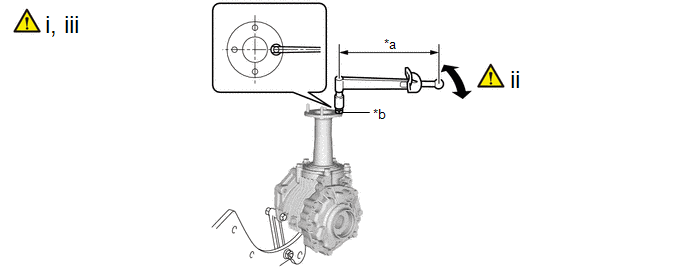

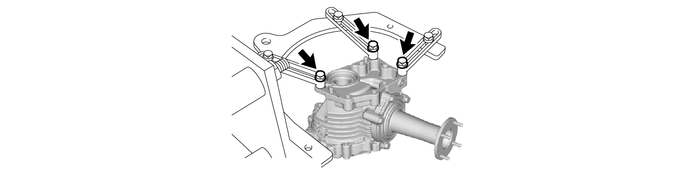

(1) Install the double nut to the transfer output shaft stud bolt and set the torque wrench into place.

HINT:

Adjust the double nut until the torque wrench is straight.

(2) Using a torque wrench, measure the preload (starting torque) of the drive pinion.

Standard Preload (at Starting):

Item	Preload
New bearing (with anti-rust oil)	0.39 to 2.21 N*m (3.98 to 22.53 kgf*cm, 3.46 to 19.55 in.*lbf)
Reused bearing (when coated with gear oil)	0.39 to 2.21 N*m (3.98 to 22.53 kgf*cm, 3.46 to 19.55 in.*lbf)

NOTICE:

Measure the preload after rotating the bearing several times in the forward and backward directions to make sure the bearing is operating correctly.

HINT:

• When using a torque wrench after changing its effective length, determine the reading of the torque wrench. Formula T'=T x L2/(L1+L2)

  T'	Reading of torque wrench (N*m (kgf*cm, ft.*lbf))
  T	Driven pinion preload (N*m (kgf*cm, ft.*lbf))
  L1	Distance from center of transfer output shaft to center of stud bolt (cm (in.))
  L2	Length of torque wrench (cm (in.))

• Distance from center of transfer output shaft to center of stud bolt (effective length of 33.9 mm) when using a torque wrench (effective length of 160 mm): 0.32 to 1.77 N*m (3.27 to 18.04 kgf*cm, 2.84 to 15.66 in.*lbf)

12. INSTALL TRANSFER RING GEAR

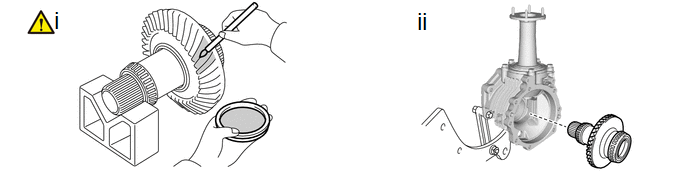

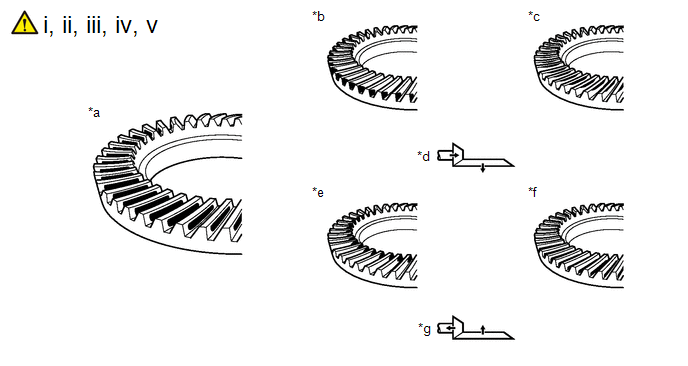

(1) Uniformly apply a light coat of Prussian Blue on both sides of the transfer ring gear teeth.

(2) Install the transfer ring gear to the transfer case.

13. INSTALL NO. 1 TRANSFER CASE COVER

Torque:

47 N·m {479 kgf·cm, 35 ft·lbf}

14. ADJUST RING GEAR BACKLASH

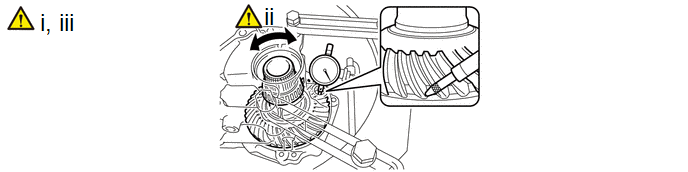

(1) Insert a dial indicator into the No. 2 transfer case plug hole, and place it perpendicular to the edge of a transfer ring gear tooth.

(2) While securing the rear transfer output shaft sub-assembly by hand, rotate the transfer ring gear mounting case forward and backward by hand and measure the backlash of the transfer ring gear and transfer driven pinion.

Standard backlash:

0.10 to 0.20 mm (0.00394 to 0.00787 in.)

NOTICE:

Measure the ring gear at 3 or more locations.

(3) If the result is not within the specified range, select a No. 1 ring gear mounting case washer (for backlash adjustment) and a No. 2 transfer ring gear mounting case washer (for preload adjustment) from the table below and reinstall them to bring the result within the specified range.

HINT:

• If the backlash is small, select a thick washer for the No. 1 ring gear mounting case washer (for backlash adjustment) and a thin washer for the No. 2 transfer ring gear mounting case washer (for preload adjustment).
• If the backlash is large, select a thin washer for the No. 1 ring gear mounting case washer (for backlash adjustment) and a thick washer for the No. 2 transfer ring gear mounting case washer (for preload adjustment).

No. 1 Ring Gear Mounting Case Washer (for backlash adjustment):

Part No.	Thickness	Identifying Mark	Part No.	Thickness	Identifying Mark
36265-42010	1.97 mm (0.0776 in.)	A0	36265-42210	2.37 mm (0.0933 in.)	C0
36265-42020	1.99 mm (0.0783 in.)	A1	36265-42220	2.39 mm (0.0941 in.)	C1
36265-42030	2.01 mm (0.0791 in.)	A2	36265-42230	2.41 mm (0.0949 in.)	C2
36265-42040	2.03 mm (0.0799 in.)	A3	36265-42240	2.43 mm (0.0957 in.)	C3
36265-42050	2.05 mm (0.0807 in.)	A4	36265-42250	2.45 mm (0.0965 in.)	C4
36265-42060	2.07 mm (0.0815 in.)	A5	36265-42260	2.47 mm (0.0972 in.)	C5
36265-42070	2.09 mm (0.0823 in.)	A6	36265-42270	2.49 mm (0.0980 in.)	C6
36265-42080	2.11 mm (0.0831 in.)	A7	36265-42280	2.51 mm (0.0988 in.)	C7
36265-42090	2.13 mm (0.0839 in.)	A8	36265-42290	2.53 mm (0.0996 in.)	C8
36265-42100	2.15 mm (0.0846 in.)	A9	36265-42300	2.55 mm (0.1004 in.)	C9
36265-42110	2.17 mm (0.0854 in.)	B0	36265-42310	2.57 mm (0.1012 in.)	D0
36265-42120	2.19 mm (0.0862 in.)	B1	36265-42320	2.59 mm (0.1020 in.)	D1
36265-42130	2.21 mm (0.0870 in.)	B2	36265-42330	2.61 mm (0.1028 in.)	D2
36265-42140	2.23 mm (0.0878 in.)	B3	36265-42340	2.63 mm (0.1035 in.)	D3
36265-42150	2.25 mm (0.0886 in.)	B4	36265-42350	2.65 mm (0.1043 in.)	D4
36265-42160	2.27 mm (0.0894 in.)	B5	36265-42360	2.67 mm (0.1051 in.)	D5
36265-42170	2.29 mm (0.0902 in.)	B6	36265-42370	2.69 mm (0.1059 in.)	D6
36265-42180	2.31 mm (0.0909 in.)	B7	36265-42380	2.71 mm (0.1067 in.)	D7
36265-42190	2.33 mm (0.0917 in.)	B8	36265-42390	2.73 mm (0.1075 in.)	D8
36265-42200	2.35 mm (0.0925 in.)	B9	36265-42400	2.75 mm (0.1083 in.)	D9

No. 2 Transfer Ring Gear Mounting Case Washer (for preload adjustment):

Part No.	Thickness	Identifying Mark	Part No.	Thickness	Identifying Mark
36266-52010	1.18 mm (0.0465 in.)	A0	36266-52230	1.62 mm (0.0638 in.)	C2
36266-52020	1.20 mm (0.0472 in.)	A1	36266-52240	1.64 mm (0.0646 in.)	C3
36266-52030	1.22 mm (0.0480 in.)	A2	36266-52250	1.66 mm (0.0654 in.)	C4
36266-52040	1.24 mm (0.0488 in.)	A3	36266-52260	1.68 mm (0.0661 in.)	C5
36266-52050	1.26 mm (0.0496 in.)	A4	36266-52270	1.70 mm (0.0669 in.)	C6
36266-52060	1.28 mm (0.0504 in.)	A5	36266-52280	1.72 mm (0.0677 in.)	C7
36266-52070	1.30 mm (0.0512 in.)	A6	36266-52290	1.74 mm (0.0685 in.)	C8
36266-52080	1.32 mm (0.0520 in.)	A7	36266-52300	1.76 mm (0.0693 in.)	C9
36266-52090	1.34 mm (0.0528 in.)	A8	36266-52310	1.78 mm (0.0701 in.)	D0
36266-52100	1.36 mm (0.0535 in.)	A9	36266-52320	1.80 mm (0.0709 in.)	D1
36266-52110	1.38 mm (0.0543 in.)	B0	36266-52330	1.82 mm (0.0717 in.)	D2
36266-52120	1.40 mm (0.0551 in.)	B1	36266-52340	1.84 mm (0.0724 in.)	D3
36266-52130	1.42 mm (0.0559 in.)	B2	36266-52350	1.86 mm (0.0732 in.)	D4
36266-52140	1.44 mm (0.0567 in.)	B3	36266-52360	1.88 mm (0.0740 in.)	D5
36266-52150	1.46 mm (0.0575 in.)	B4	36266-52370	1.90 mm (0.0748 in.)	D6
36266-52160	1.48 mm (0.0583 in.)	B5	36266-52380	1.92 mm (0.0756 in.)	D7
36266-52170	1.50 mm (0.0591 in.)	B6	36266-52390	1.94 mm (0.0764 in.)	D8
36266-52180	1.52 mm (0.0598 in.)	B7	36266-52400	1.96 mm (0.0772 in.)	D9
36266-52190	1.54 mm (0.0606 in.)	B8	36266-52410	1.98 mm (0.0780 in.)	E0
36266-52200	1.56 mm (0.0614 in.)	B9	36266-52420	2.00 mm (0.0787 in.)	E1
36266-52210	1.58 mm (0.0622 in.)	C0	36266-52430	2.02 mm (0.0795 in.)	E2
36266-52220	1.60 mm (0.0630 in.)	C1	-	-	-

15. ADJUST TOTAL PRELOAD

*a

Torque Wrench Fulcrum Length

*b

Double Nut

(1) Install the double nut to the transfer output shaft stud bolt and set the torque wrench into place.

HINT:

Adjust the double nut until the torque wrench is straight.

(2) Using a torque wrench, measure the total preload (starting torque) with the teeth of the drive pinion and ring gear in contact.

Standard Preload (at Starting):

Item	Preload
New bearing (with anti-rust oil)	Driven pinion preload + 0.31 to 0.81 N*m (3.17 to 8.25 kgf*cm, 2.75 to 7.16 in.*lbf)
Reused bearing (when coated with gear oil)	Driven pinion preload + 0.48 to 0.64 N*m (4.90 to 6.52 kgf*cm, 4.25 to 5.66 in.*lbf)

NOTICE:

Measure the preload after rotating the bearing several times in the forward and backward directions to make sure the bearing is operating correctly.

HINT:

• When using a torque wrench after changing its effective length, determine the reading of the torque wrench. Formula T'=T x L2/(L1+L2)

  T'	Reading of torque wrench (N*m (kgf*cm, ft.*lbf))
  T	Driven pinion preload (N*m (kgf*cm, ft.*lbf))
  L1	Distance from center of transfer output shaft to center of stud bolt (cm (in.))
  L2	Length of torque wrench (cm (in.))

• Distance from center of transfer output shaft to center of stud bolt (effective length of 33.9 mm) when using a torque wrench (effective length of 160 mm): + 0.25 to 0.65 N*m (2.55 to 6.62 kgf*cm, 2.22 to 5.75 in.*lbf)
• Distance from center of transfer output shaft to center of stud bolt (effective length of 33.9 mm) when using a torque wrench (effective length of 160 mm): + 0.39 to 0.51 N*m (3.98 to 5.20 kgf*cm, 3.46 to 4.51 in.*lbf)

(3) If the result is not within the specified range, select a No. 2 transfer ring gear mounting case washer (for preload adjustment) from the table below and reinstall it to bring the result within the specified range.

HINT:

• If the preload is small, select a thick washer for the No. 2 transfer ring gear mounting case washer (for preload adjustment).
• If the preload is large, select a thin washer for the No. 2 transfer ring gear mounting case washer (for preload adjustment).

No. 2 Transfer Ring Gear Mounting Case Washer (for preload adjustment):

Part No.	Thickness	Identifying Mark	Part No.	Thickness	Identifying Mark
36266-52010	1.18 mm (0.0465 in.)	A0	36266-52230	1.62 mm (0.0638 in.)	C2
36266-52020	1.20 mm (0.0472 in.)	A1	36266-52240	1.64 mm (0.0646 in.)	C3
36266-52030	1.22 mm (0.0480 in.)	A2	36266-52250	1.66 mm (0.0654 in.)	C4
36266-52040	1.24 mm (0.0488 in.)	A3	36266-52260	1.68 mm (0.0661 in.)	C5
36266-52050	1.26 mm (0.0496 in.)	A4	36266-52270	1.70 mm (0.0669 in.)	C6
36266-52060	1.28 mm (0.0504 in.)	A5	36266-52280	1.72 mm (0.0677 in.)	C7
36266-52070	1.30 mm (0.0512 in.)	A6	36266-52290	1.74 mm (0.0685 in.)	C8
36266-52080	1.32 mm (0.0520 in.)	A7	36266-52300	1.76 mm (0.0693 in.)	C9
36266-52090	1.34 mm (0.0528 in.)	A8	36266-52310	1.78 mm (0.0701 in.)	D0
36266-52100	1.36 mm (0.0535 in.)	A9	36266-52320	1.80 mm (0.0709 in.)	D1
36266-52110	1.38 mm (0.0543 in.)	B0	36266-52330	1.82 mm (0.0717 in.)	D2
36266-52120	1.40 mm (0.0551 in.)	B1	36266-52340	1.84 mm (0.0724 in.)	D3
36266-52130	1.42 mm (0.0559 in.)	B2	36266-52350	1.86 mm (0.0732 in.)	D4
36266-52140	1.44 mm (0.0567 in.)	B3	36266-52360	1.88 mm (0.0740 in.)	D5
36266-52150	1.46 mm (0.0575 in.)	B4	36266-52370	1.90 mm (0.0748 in.)	D6
36266-52160	1.48 mm (0.0583 in.)	B5	36266-52380	1.92 mm (0.0756 in.)	D7
36266-52170	1.50 mm (0.0591 in.)	B6	36266-52390	1.94 mm (0.0764 in.)	D8
36266-52180	1.52 mm (0.0598 in.)	B7	36266-52400	1.96 mm (0.0772 in.)	D9
36266-52190	1.54 mm (0.0606 in.)	B8	36266-52410	1.98 mm (0.0780 in.)	E0
36266-52200	1.56 mm (0.0614 in.)	B9	36266-52420	2.00 mm (0.0787 in.)	E1
36266-52210	1.58 mm (0.0622 in.)	C0	36266-52430	2.02 mm (0.0795 in.)	E2
36266-52220	1.60 mm (0.0630 in.)	C1	-	-	-

16. ADJUST TOOTH CONTACT BETWEEN RING GEAR AND DRIVE PINION

*a	Proper Contact	*b	Heel Contact
*c	Face Contact	*d	Select an adjusting washer that will shift the drive pinion closer to the ring gear (*b, *c)
*e	Toe Contact	*f	Flank Contact
*g	Select an adjusting washer that will shift the drive pinion away from the ring gear (*e, *f)	-	-

(1) Rotate the transfer output shaft sub-assembly several times in the forward and backward directions.

(2) Remove the transfer ring gear and check the tooth contact.

NOTICE:

• Check the tooth contact at 4 or more locations on the transfer ring gear.
• When replacing washers (adjusting the backlash, preload or tooth contact pattern), reapply a coat of Prussian Blue.

HINT:

The Prussian Blue pattern indicates the tooth contact points.

(3) In instances of face contact or flank contact, perform the following procedure.

1. Move and adjust the transfer ring gear using the No. 2 transfer ring gear mounting case washer (for preload adjustment) and the No. 1 ring gear mounting case washer (for backlash adjustment).

(4) In instances of heel contact or toe contact, perform the following procedure.

1. Select a transfer output shaft washer (for tooth contact adjustment) from the table below, and move and adjust the transfer driven pinion.

Transfer Output Shaft Washer (for tooth contact adjustment):

Part No.	Thickness	Identifying Mark	Part No.	Thickness	Identifying Mark
36275-52010	1.02 mm (0.0402 in.)	01	36275-52150	1.30 mm (0.0512 in.)	15
36275-52020	1.04 mm (0.0409 in.)	02	36275-52160	1.32 mm (0.0520 in.)	16
36275-52030	1.06 mm (0.0417 in.)	03	36275-52170	1.34 mm (0.0528 in.)	17
36275-52040	1.08 mm (0.0425 in.)	04	36275-52180	1.36 mm (0.0535 in.)	18
36275-52050	1.10 mm (0.0433 in.)	05	36275-52190	1.38 mm (0.0543 in.)	19
36275-52060	1.12 mm (0.0441 in.)	06	36275-52200	1.40 mm (0.0551 in.)	20
36275-52070	1.14 mm (0.0449 in.)	07	36275-52210	1.42 mm (0.0559 in.)	21
36275-52080	1.16 mm (0.0457 in.)	08	36275-52220	1.44 mm (0.0567 in.)	22
36275-52090	1.18 mm (0.0465 in.)	09	36275-52230	1.46 mm (0.0575 in.)	23
36275-52100	1.20 mm (0.0472 in.)	10	36275-52240	1.48 mm (0.0583 in.)	24
36275-52110	1.22 mm (0.0480 in.)	11	36275-52250	1.50 mm (0.0591 in.)	25
36275-52120	1.24 mm (0.0488 in.)	12	36275-52260	1.52 mm (0.0598 in.)	26
36275-52130	1.26 mm (0.0496 in.)	13	36275-52270	1.54 mm (0.0606 in.)	27
36275-52140	1.28 mm (0.0504 in.)	14	36275-52280	1.56 mm (0.0614 in.)	28

(5) If the tooth contact has been adjusted, recheck the backlash, preload and tooth contact pattern.

17. REMOVE NO. 1 TRANSFER CASE COVER

18. REMOVE TRANSFER RING GEAR

19. REMOVE REAR TRANSFER OUTPUT SHAFT SUB-ASSEMBLY

20. INSTALL TRANSFER CASE STRAIGHT PIN

(1) Using a plastic-faced hammer, install straight pins to the locations shown in the illustration.

Standard depth (A):

10.8 to 11.8 mm (0.426 to 0.464 in.)

Standard depth (B):

6.5 to 7.5 mm (0.256 to 0.295 in.)

21. INSTALL REAR TRANSFER OUTPUT SHAFT SUB-ASSEMBLY

(1) Secure the rear transfer output shaft sub-assembly in a vise between aluminum plates.

NOTICE:

Do not overtighten the vise.

(2) Using a chisel and hammer, stake the transfer gear nut.

NOTICE:

Fully stake the transfer gear nut along the entire groove.

(3) Install the rear transfer output shaft sub-assembly to the transfer case with the 5 bolts.

Torque:

38 N·m {387 kgf·cm, 28 ft·lbf}

NOTICE:

Do not scratch, twist or break the O-ring.

22. INSTALL TRANSFER RING GEAR

23. INSTALL NO. 1 TRANSFER CASE COVER

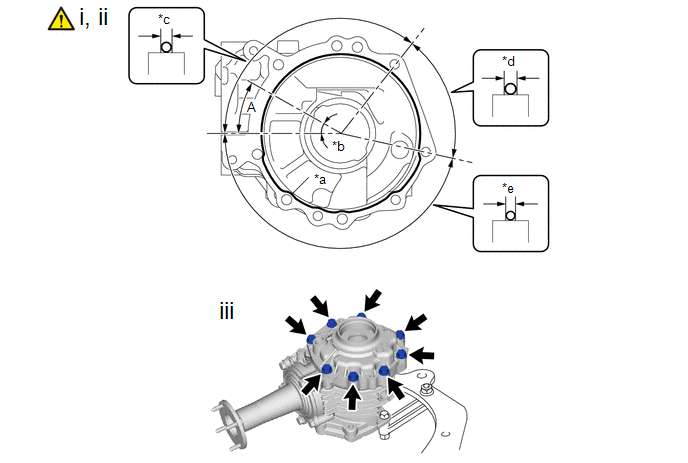

*a	Seal Packing	*b	30°
*c	Seal Width 2.5 to 3.5 mm (0.099 to 0.137 in.)	*d	Seal Width 3.0 to 4.0 mm (0.119 to 0.157 in.)
*e	Seal Width 2.0 to 3.0 mm (0.079 to 0.118 in.)	-	-

(1) Clean and degrease the installation surfaces of the transfer case and No. 1 transfer case cover.

NOTICE:

Do not damage the installation surface.

(2) Apply seal packing 1281 to the transfer case in a continuous bead at the position shown in the illustration.

Seal packing:

Toyota Genuine Seal Packing 1281, Three Bond 1281 or equivalent

NOTICE:

• After applying seal packing, install the part within 3 minutes and tighten it within 10 minutes.
• Overlap the seal packing application start and end positions by 10 mm or more.
• Place the seal packing application start position within the range (A).
• Apply seal packing in a continuous line.

(3) Install the No. 1 transfer case cover with the 8 bolts.

Torque:

47 N·m {479 kgf·cm, 35 ft·lbf}

24. INSTALL TRANSFER CASE OIL SEAL

Click here

25. INSTALL TRANSFER CASE OIL SEAL RH

(1) Coat the lip of a new drive shaft oil seal RH with MP grease.

(2) Using SST and a hammer, tap in the transfer case oil seal RH as shown in the illustration.

SST: 09223-46011

SST: 09631-32020

Standard depth (A):

7.5 to 8.5 mm (0.296 to 0.334 in.)

NOTICE:

• Tap the transfer case oil seal RH uniformly so that the transfer case oil seal RH is straight.
• Do not tap the transfer case oil seal RH in too far.

26. INSTALL TRANSFER CASE BREATHER PLUG

(1) Using SST, tap in a new transfer case breather plug until it meets the transfer case.

SST: 09612-10093

09612-10061

27. INSTALL TRANSFER FILLER PLUG

(1) Using a 10 mm socket hexagon wrench, install a new gasket and the transfer filler plug.

Torque:

39 N·m {398 kgf·cm, 29 ft·lbf}

28. INSTALL TRANSFER DRAIN PLUG

(1) Using a 10 mm socket hexagon wrench, install a new gasket and the transfer drain plug.

Torque:

39 N·m {398 kgf·cm, 29 ft·lbf}

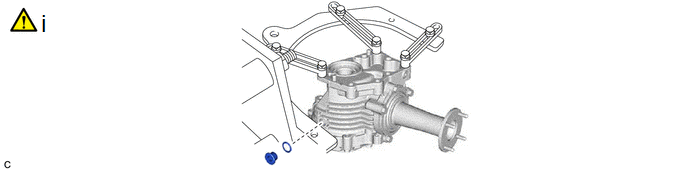

29. INSTALL NO. 1 TRANSFER CASE PLUG

Torque:

49 N·m {500 kgf·cm, 36 ft·lbf}

30. REMOVE TRANSFER ASSEMBLY

31. INSTALL TRANSFER AND TRANSAXLE SETTING STUD BOLT

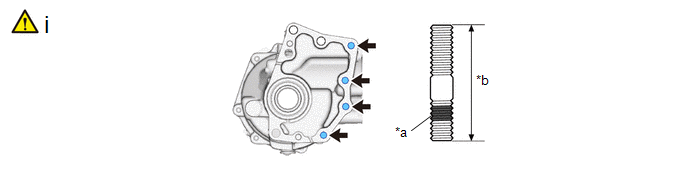

*a

Adhesive

*b

64 mm (2.52 in.)

(1) Clean the bolt holes.

(2) Using 2 nuts, install 4 new stud bolts in the locations shown in the illustration.

Torque:

39.2 N·m {400 kgf·cm, 29 ft·lbf}

NOTICE:

Install the shorter threaded part of each stud bolt to the transfer side.

READ NEXT:
