Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

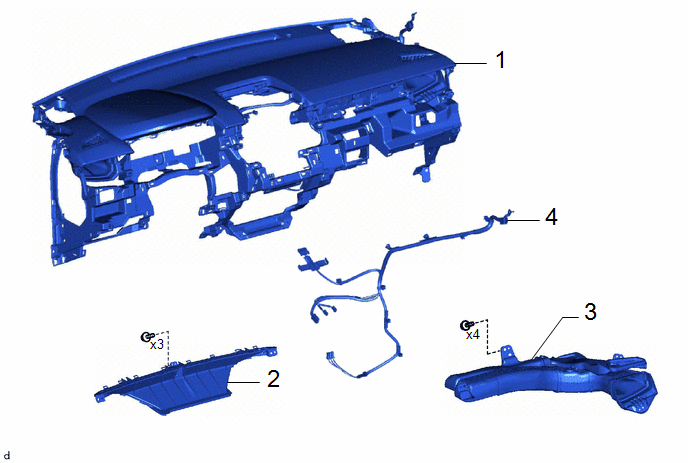

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

INSTRUMENT PANEL SAFETY PAD ASSEMBLY

-

-

-

-

2

DEFROSTER NOZZLE ASSEMBLY

55950G

-

-

-

3

NO. 2 HEATER TO REGISTER DUCT SUB-ASSEMBLY

55085

-

-

-

4

ANTENNA CORD SUB-ASSEMBLY

86101

-

-

-

Procedure

Part Name Code

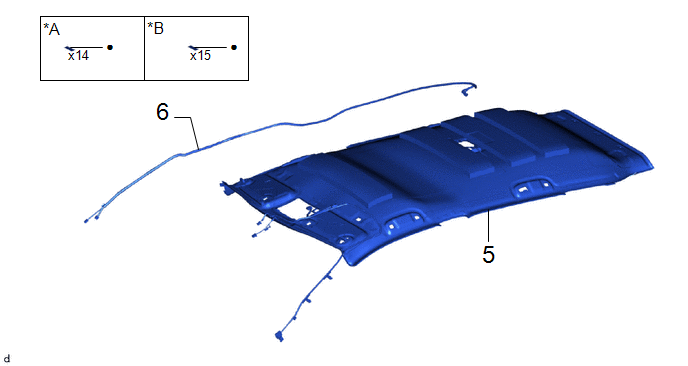

5

ROOF HEADLINING ASSEMBLY

-

-

-

-

6

NO. 2 ANTENNA CORD SUB-ASSEMBLY

86101J

-

-

-

*A

w/o Sliding Roof

*B

w/ Sliding Roof

Non-reusable part

-

-

Procedure

Part Name Code

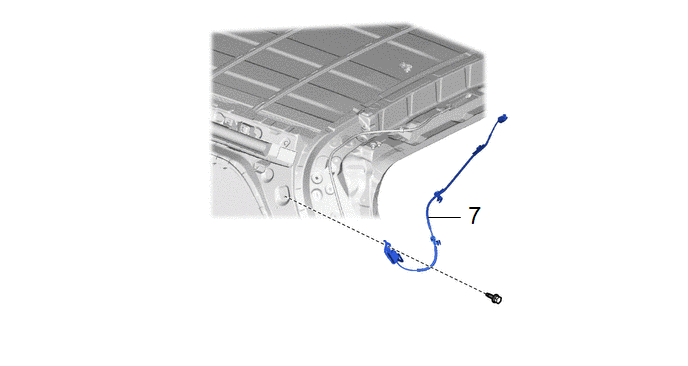

7

NO. 3 ANTENNA CORD SUB-ASSEMBLY

86101D

-

-

-

CAUTION / NOTICE / HINT

CAUTION:

Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

Click here

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

  • Learning completes when vehicle is driven

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    *1: for Gasoline Model

    Front Camera System

    Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.

    Stop and start system*1

    Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)

  • Learning completes when vehicle is operated normally

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Power door lock control system

    • Back door opener

    Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

    Power back door system

    Fully close the back door by hand.

    HINT:

    Initialization is not necessary if the above procedures are performed while the back door is closed.

    Air conditioning system

    After the ignition switch is turned to ON, the servo motor standard position is recognized.

    -

PROCEDURE

1. REMOVE INSTRUMENT PANEL SAFETY PAD

Click here

2. REMOVE DEFROSTER NOZZLE ASSEMBLY

Click here

3. REMOVE NO. 2 HEATER TO REGISTER DUCT SUB-ASSEMBLY

Click here

4. REMOVE ANTENNA CORD SUB-ASSEMBLY

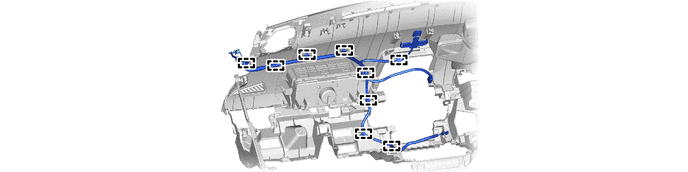

5. REMOVE ROOF HEADLINING ASSEMBLY

Click here

6. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY

(a) w/o Sliding Roof:

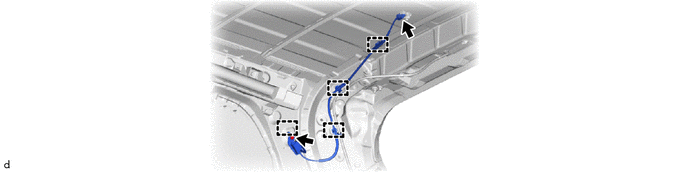

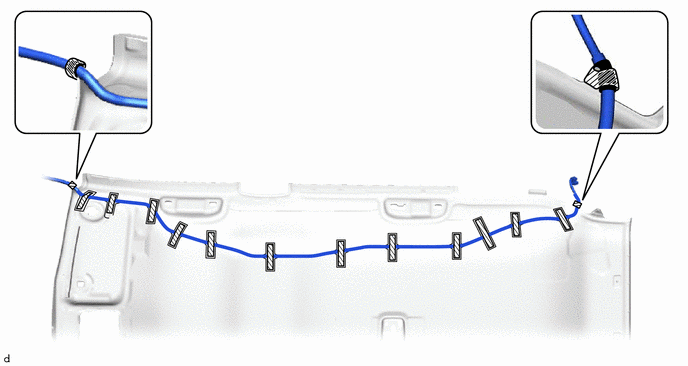

Adhesive Tape

-

-

(b) w/ Sliding Roof:

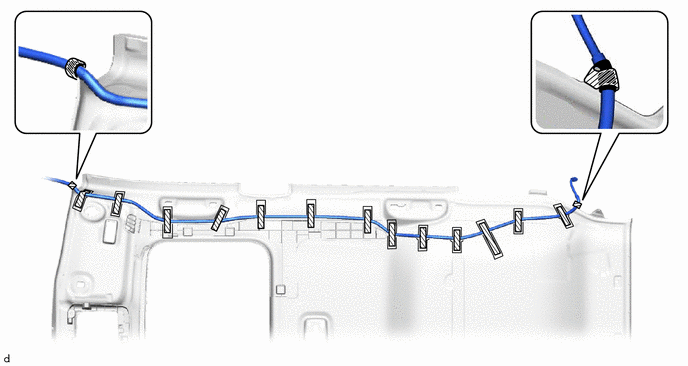

Adhesive Tape

-

-

7. REMOVE NO. 3 ANTENNA CORD SUB-ASSEMBLY
