INSTALLATION

CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

NO. 3 ANTENNA CORD SUB-ASSEMBLY

86101D

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

Procedure

Part Name Code

2

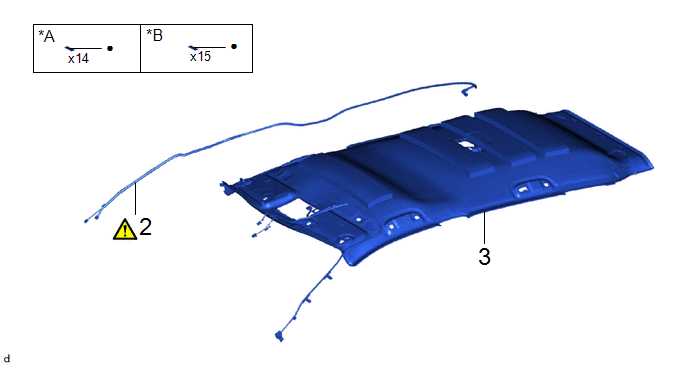

NO. 2 ANTENNA CORD SUB-ASSEMBLY

86101J

-

-

3

ROOF HEADLINING ASSEMBLY

-

-

-

-

*A

w/o Sliding Roof

*B

w/ Sliding Roof

Non-reusable part

-

-

Procedure

Part Name Code

4

ANTENNA CORD SUB-ASSEMBLY

86101

-

-

-

5

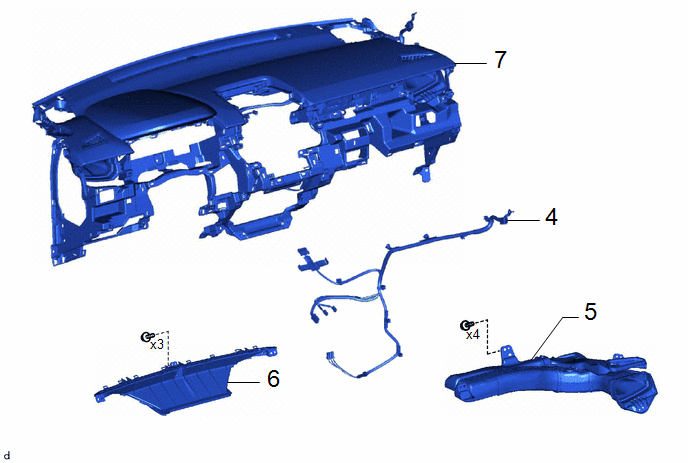

NO. 2 HEATER TO REGISTER DUCT SUB-ASSEMBLY

55085

-

-

-

6

DEFROSTER NOZZLE ASSEMBLY

55950G

-

-

-

7

INSTRUMENT PANEL SAFETY PAD ASSEMBLY

-

-

-

-

PROCEDURE

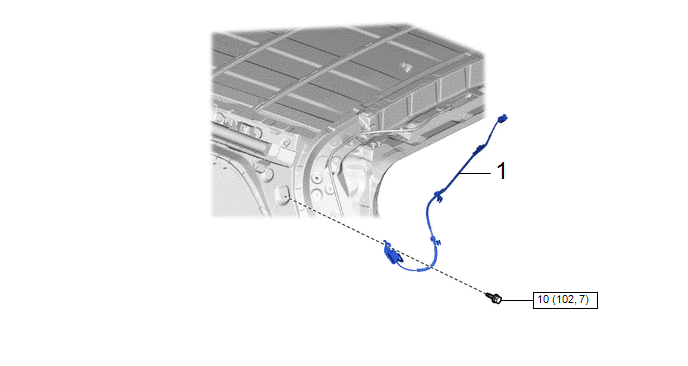

1. INSTALL NO. 3 ANTENNA CORD SUB-ASSEMBLY

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}

2. INSTALL NO. 2 ANTENNA CORD SUB-ASSEMBLY

(a) w/o Sliding Roof:

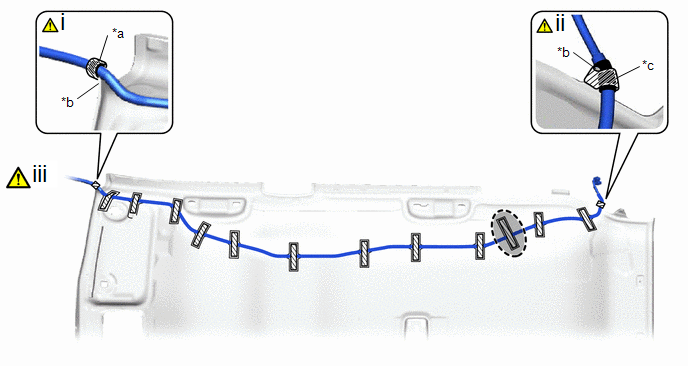

*a

Marking Tape (A)

*b

Protrusion

*c

Marking Tape (B)

-

-

Adhesive Tape

Adjustment Area

(1) Align the marking tape (A) on the No. 2 antenna cord sub-assembly with the protrusion on the front of the roof headlining assembly and wrap adhesive tape around the No. 2 antenna cord sub-assembly and protrusion of the roof headlining assembly.

(2) Align the marking tape (B) on the No. 2 antenna cord sub-assembly with the protrusion on the rear of the roof headlining assembly and wrap adhesive tape around the No. 2 antenna cord sub-assembly and protrusion of the roof headlining assembly.

(3) Install the No. 2 antenna cord sub-assembly with 12 new adhesive tapes.

NOTICE:

  • Apply the adhesive tape securely in place.
  • Do not touch the adhesive surface when applying the adhesive tape to prevent adhesion failure.
  • Secure the extra length of the No. 2 antenna cord sub-assembly in the adjustment area.

(b) w/ Sliding Roof:

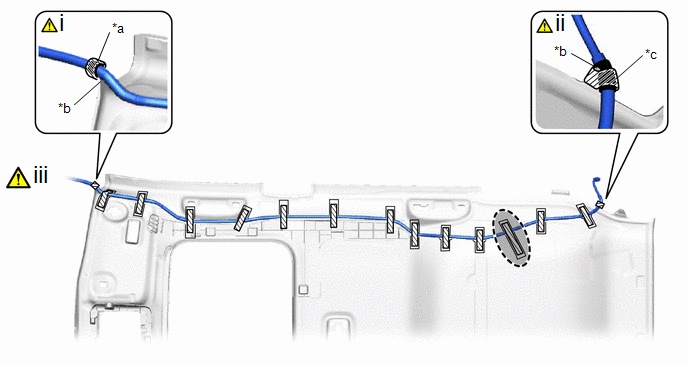

*a

Marking Tape (A)

*b

Protrusion

*c

Marking Tape (B)

-

-

Adhesive Tape

Adjustment Area

(1) Align the marking tape (A) on the No. 2 antenna cord sub-assembly with the protrusion on the front of the roof headlining assembly and wrap adhesive tape around the No. 2 antenna cord sub-assembly and protrusion of the roof headlining assembly.

(2) Align the marking tape (B) on the No. 2 antenna cord sub-assembly with the protrusion on the rear of the roof headlining assembly and wrap adhesive tape around the No. 2 antenna cord sub-assembly and protrusion of the roof headlining assembly.

(3) Install the No. 2 antenna cord sub-assembly with 13 new adhesive tapes.

NOTICE:

  • Apply the adhesive tape securely in place.
  • Do not touch the adhesive surface when applying the adhesive tape to prevent adhesion failure.
  • Secure the extra length of the No. 2 antenna cord sub-assembly in the adjustment area.

3. INSTALL ROOF HEADLINING ASSEMBLY

Click here

4. INSTALL ANTENNA CORD SUB-ASSEMBLY

5. INSTALL NO. 2 HEATER TO REGISTER DUCT SUB-ASSEMBLY

6. INSTALL DEFROSTER NOZZLE ASSEMBLY

7. INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY

Click here
