Toyota Corolla Cross: Reassembly
REASSEMBLY
CAUTION / NOTICE / HINT

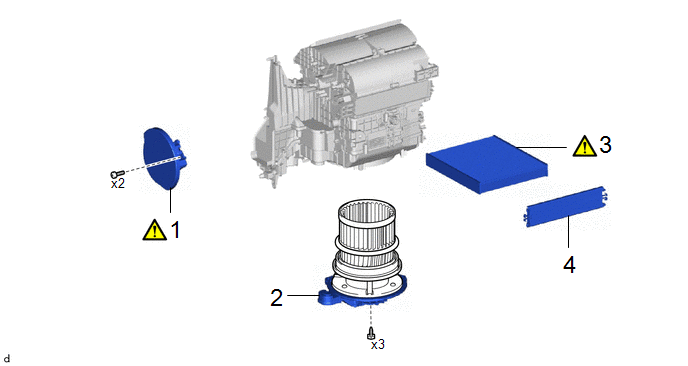

COMPONENTS (REASSEMBLY)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | NO. 3 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY |
87050E |
|
- | - |
|
2 | BLOWER MOTOR WITH FAN SUB-ASSEMBLY |
87103K | - |
- | - |
|
3 | CLEAN AIR FILTER |
87139C |
|
- | - |
|
4 | AIR FILTER COVER PLATE |
88899M | - |
- | - |
.gif)
PROCEDURE

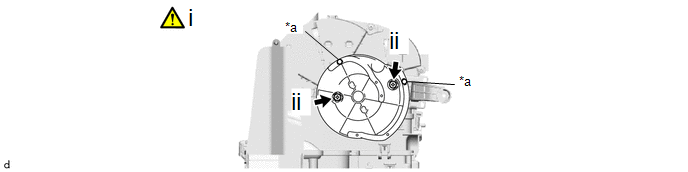

1. INSTALL NO. 3 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY
|
*a | Link |
- | - |
(1) Connect the link of the No. 3 air conditioning radiator damper servo sub-assembly to the groove on the lever of the blower assembly as shown in the illustration.
(2) Install the No. 3 air conditioning radiator damper servo sub-assembly with the 2 screws.
2. INSTALL BLOWER MOTOR WITH FAN SUB-ASSEMBLY

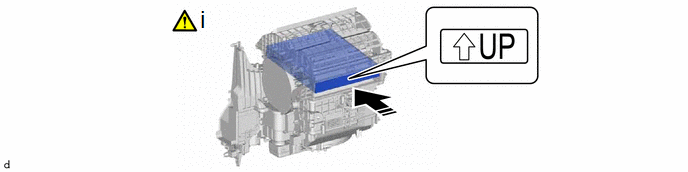

3. INSTALL CLEAN AIR FILTER
.png) |
Install in this Direction |
- | - |
(1) Install the clean air filter as shown in the illustration.
NOTICE:
Make sure that the "UP" mark is facing the correct direction before installing the air filter sub-assembly.
4. INSTALL AIR FILTER COVER PLATE
