Toyota Corolla Cross: Installation

Toyota Corolla Cross (2022-2025) Service Manual / Vehicle Interior / Heating / Air Conditioning / Blower Unit / Installation

INSTALLATION

CAUTION / NOTICE / HINT

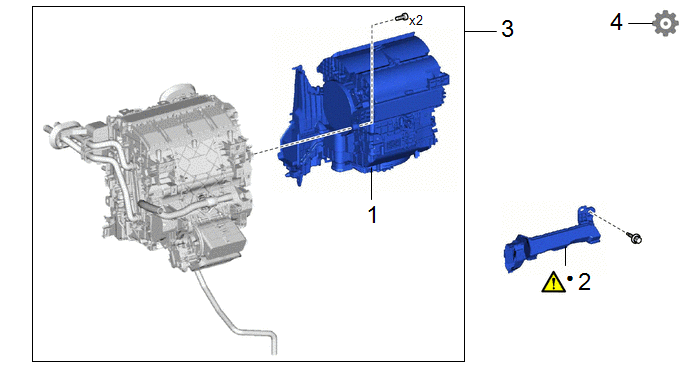

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

BLOWER ASSEMBLY

87130D

-

-

-

2

NO. 2 AIR DUCT

87211A

-

-

3

AIR CONDITIONER UNIT ASSEMBLY

-

-

-

-

4

INITIALIZATION SERVO MOTOR

-

-

-

●

Non-reusable part

-

-

PROCEDURE

1. INSTALL BLOWER ASSEMBLY

2. INSTALL NO. 2 AIR DUCT

Click here

3. INSTALL AIR CONDITIONER UNIT ASSEMBLY

Click here

4. INITIALIZATION SERVO MOTOR

  • for Gasoline Model with Manual Air Conditioning System:

    Click here

  • for Gasoline Model with Automatic Air Conditioning System:

    Click here

  • for HEV Model:

    Click here
