Toyota Corolla Cross: Reassembly

Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Exterior / Exterior Panels / Trim / Roof Rack / Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

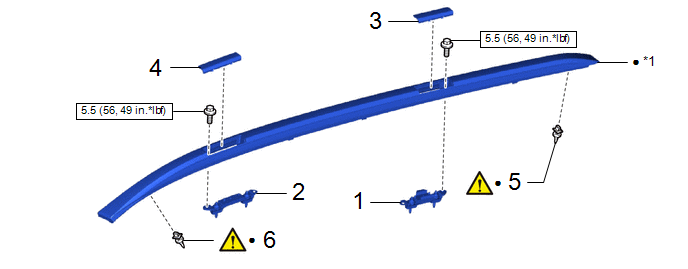

COMPONENTS (REASSEMBLY)

Procedure

Part Name Code

1

REAR ROOF RACK LEG SUB-ASSEMBLY

-

-

-

-

2

FRONT ROOF RACK LEG SUB-ASSEMBLY

-

-

-

-

3

NO. 2 ROOF SIDE GARNISH LID

75634

-

-

-

4

NO. 1 ROOF SIDE GARNISH LID

75632A

-

-

-

5

REAR ROOF RACK RETAINER

63454F

-

-

6

FRONT ROOF RACK RETAINER

63453F

-

-

*1

ROOF RACK

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL REAR ROOF RACK LEG SUB-ASSEMBLY

Torque:

5.5 N·m {56 kgf·cm, 49 in·lbf}

2. INSTALL FRONT ROOF RACK LEG SUB-ASSEMBLY

Torque:

5.5 N·m {56 kgf·cm, 49 in·lbf}

3. INSTALL NO. 2 ROOF SIDE GARNISH LID

4. INSTALL NO. 1 ROOF SIDE GARNISH LID

5. INSTALL REAR ROOF RACK RETAINER

6. INSTALL FRONT ROOF RACK RETAINER
