Toyota Corolla Cross: Removal
REMOVAL
CAUTION / NOTICE / HINT

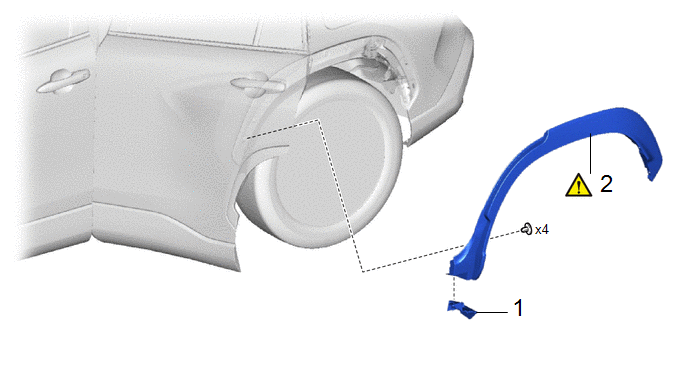

COMPONENTS (REMOVAL)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | REAR WHEEL HOUSE FRONT PLATE |
65632D | - |
- | - |
|
2 | QUARTER OUTSIDE MOULDING SUB-ASSEMBLY |
75606B |
|
- | - |
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. REMOVE REAR WHEEL HOUSE FRONT PLATE
Click here .gif)
2. REMOVE QUARTER OUTSIDE MOULDING SUB-ASSEMBLY
.png) |
Push |
.png) |
Place Hand Here |
.png) |
Remove in this Direction (1) |
.png) |
Remove in this Direction (2) |

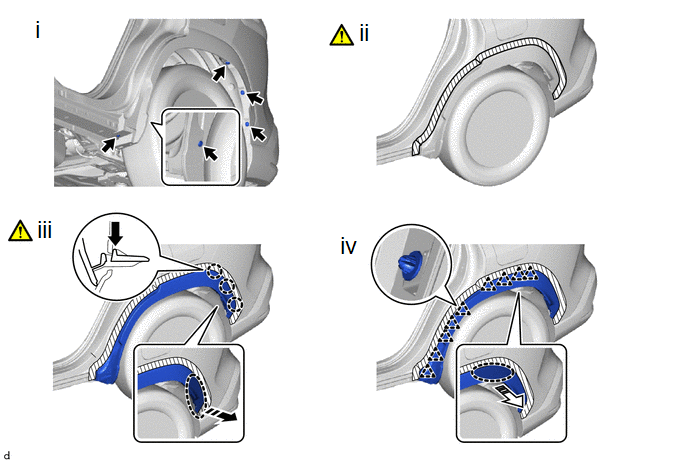

(1) Remove the 4 clips and screw.
(2) Apply protective tape around the quarter outside moulding sub-assembly as shown in the illustration.
(3) Disengage the claws by pushing the area indicated by the arrow in the illustration with a finger.
NOTICE:
To avoid damaging the claws, do not forcibly pull the quarter outside moulding sub-assembly.
(4) Disengage the clips to remove the quarter outside moulding sub-assembly as shown in the illustration.
