PRECAUTION

WHEN USING GTS

CAUTION:

  • Strictly obey all traffic rules and regulations.

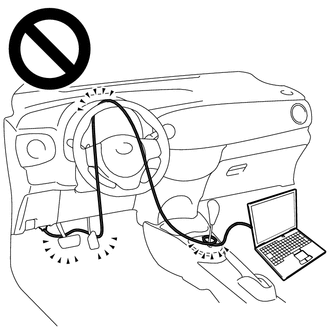

  • Do not drive the vehicle with the GTS cable contacting the pedals, shift lever or steering wheel.
  • Driving the vehicle with the GTS cable contacting these areas could impede vehicle control, resulting in a serious accident.

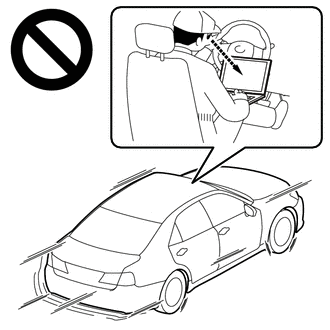

  • Do not operate the GTS while driving the vehicle.
  • Operating the GTS while driving the vehicle will prevent you from paying sufficient attention to vehicle surroundings, and could result in a serious accident.

INITIALIZATION

NOTICE:

  • Before replacing the ECM, refer to Registration.

    Click here

  • Make sure to perform Reset Memory (CVT initialization), deceleration sensor zero point calibration and CVT oil pressure calibration when replacing the ECM or the oil pressure sensor.

    for 2WD: Click here

    for AWD: Click here

DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

NOTICE:

  • After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Click here

  • When disconnecting and reconnecting the auxiliary battery.

    HINT:

    When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

    Click here
