Toyota Corolla Cross: Parts Location
PARTS LOCATION
ILLUSTRATION
|
*A | w/ Power Back Door System |
- | - |
|
*1 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH |
*2 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH |
|
*3 | REAR DOOR LOCK WITH MOTOR ASSEMBLY LH |
*4 | REAR DOOR LOCK WITH MOTOR ASSEMBLY RH |
|
*5 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (LH) |
*6 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (RH) |
|
*7 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (LH) |
*8 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (RH) |
|
*9 | BACK DOOR OPENER SWITCH ASSEMBLY |
*10 | BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY |
|
*11 | MULTIPLEX NETWORK DOOR ECU |
- | - |

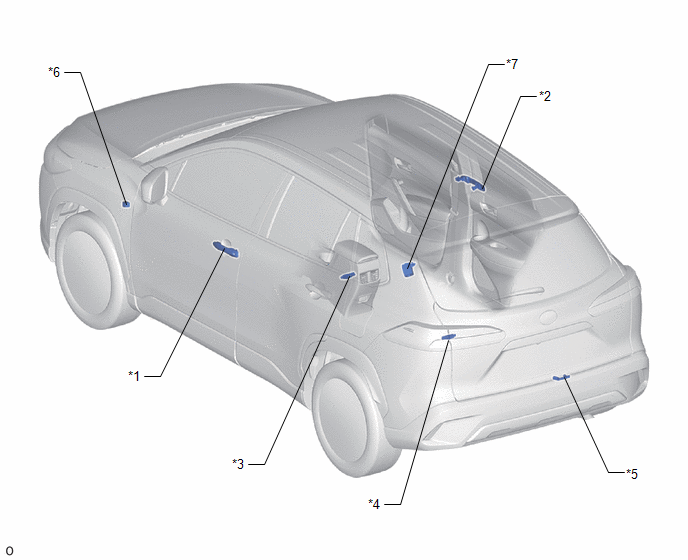

ILLUSTRATION
|
*1 | FRONT DOOR OUTSIDE HANDLEASSEMBLY LH - ELECTRICAL KEY ANTENNA - LOCK SENSOR - UNLOCK SENSOR |
*2 | FRONT DOOR OUTSIDE HANDLE ASSEMBLY RH - ELECTRICAL KEY ANTENNA - LOCK SENSOR - UNLOCK SENSOR |
|
*3 | NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (FRONT FLOOR) |
*4 | NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (INSIDE LUGGAGE COMPARTMENT) |
|
*5 | ELECTRICAL KEY ANTENNA (OUTSIDE LUGGAGE COMPARTMENT) |
*6 | WIRELESS DOOR LOCK BUZZER |
|
*7 | ELECTRICAL KEY AND TIRE PRESSURE WARNING ECU AND RECEIVER |
- | - |

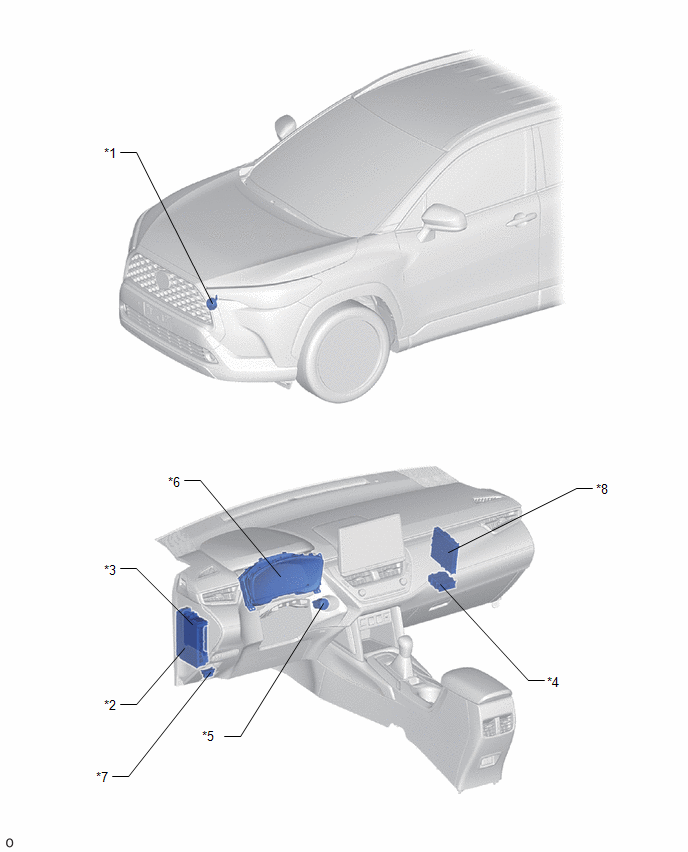

ILLUSTRATION
|
*1 | VEHICLE APPROACHING SPEAKER ASSEMBLY - WIRELESS BUZZER | *2 |
POWER DISTRIBUTION BOX ASSEMBLY - AM2 FUSE |
|
*3 | MAIN BODY ECU (MULTIPLEX NETWOR BODY ECU) |
*4 | VEHICLE APPROACHING SPEAKER CONTROLLER |
|
*5 | POWER SWITCH |
*6 | COMBINATION METER ASSEMBLY |
|
*7 | DLC3 |
*8 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
