Toyota Corolla Cross: System Diagram

Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Interior / Theft Deterrent / Keyless Entry / Smart Key System (for Entry Function, Hev Model) / System Diagram

SYSTEM DIAGRAM

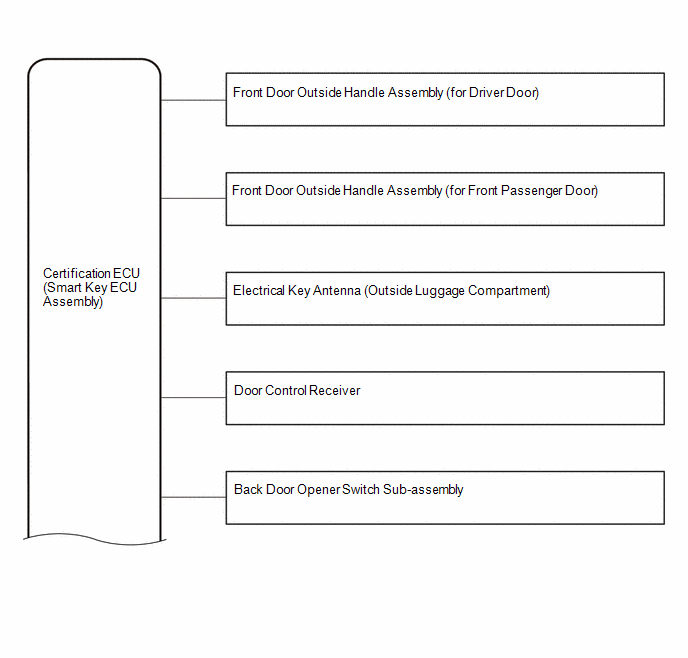

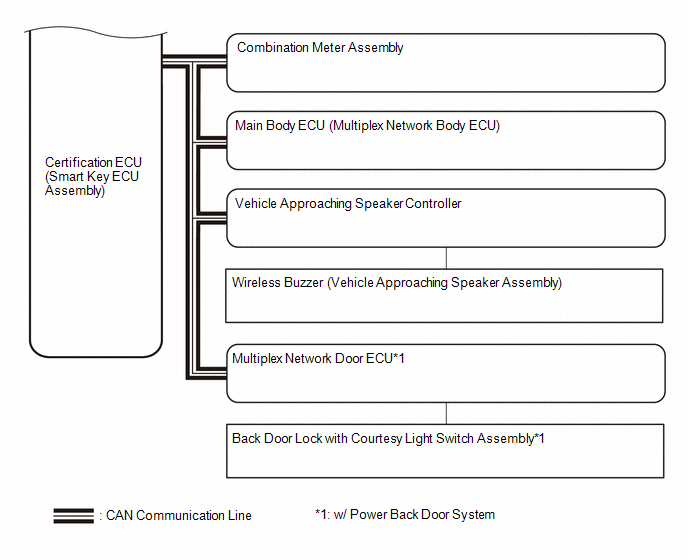

SMART KEY SYSTEM (for Entry Function)

SMART KEY SYSTEM (for Start Function)

Click here

POWER DOOR LOCK CONTROL SYSTEM

Click here

WIRELESS DOOR LOCK CONTROL SYSTEM

Click here
