Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Interior / Seat / Seat Heater System / Parts Location

PARTS LOCATION

ILLUSTRATION

*1

SEAT HEATER SWITCH (for LH)

*2

SEAT HEATER SWITCH (for RH)

*3

POWER DISTRIBUTION BOX ASSEMBLY

- PANEL FUSE

- S/HTR F/L FUSE

- S/HTR F/R FUSE

-

-

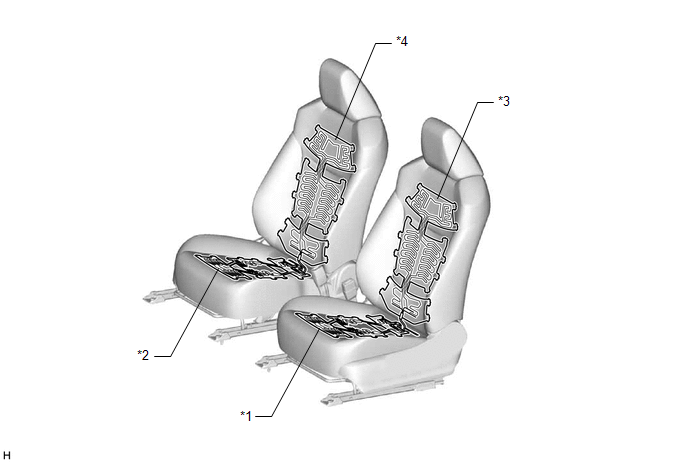

ILLUSTRATION

*1

FRONT SEAT CUSHION HEATER ASSEMBLY LH

*2

FRONT SEAT CUSHION HEATER ASSEMBLY RH

*3

FRONT SEATBACK HEATER ASSEMBLY LH

*4

FRONT SEATBACK HEATER ASSEMBLY RH
