Toyota Corolla Cross: Parts Location
PARTS LOCATION

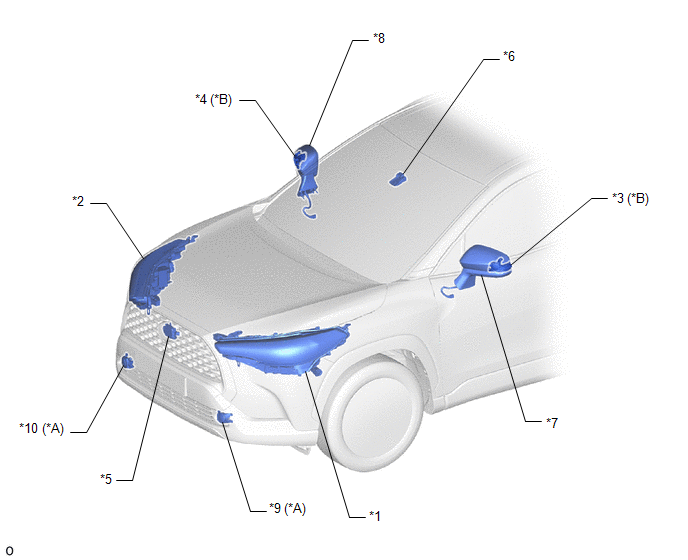

ILLUSTRATION
|
*A | w/ Fog Light |
*B | for Outer Rear View Mirror Type Side Turn Signal Light |
|
*1 | HEADLIGHT ASSEMBLY LH - PARKING LIGHT BULB (for Bulb Type Clearance Light) - FRONT TURN SIGNAL LIGHT BULB (for Bulb Type Clearance Light) - FRONT SIDE MARKER LIGHT BULB (for Bulb Type Clearance Light) |
*2 | HEADLIGHT ASSEMBLY RH - PARKING LIGHT BULB (for Bulb Type Clearance Light) - FRONT TURN SIGNAL LIGHT BULB (for Bulb Type Clearance Light) - FRONT SIDE MARKER LIGHT BULB (for Bulb Type Clearance Light) |
|
*3 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH |
*4 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
|
*5 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY |
*6 | FORWARD RECOGNITION CAMERA |
|
*7 | OUTER REAR VIEW MIRROR ASSEMBLY LH |
*8 | OUTER REAR VIEW MIRROR ASSEMBLY RH |
|
*9 | FOG LIGHT ASSEMBLY LH - FOG LIGHT LED | *10 |
FOG LIGHT ASSEMBLY RH - FOG LIGHT LED |

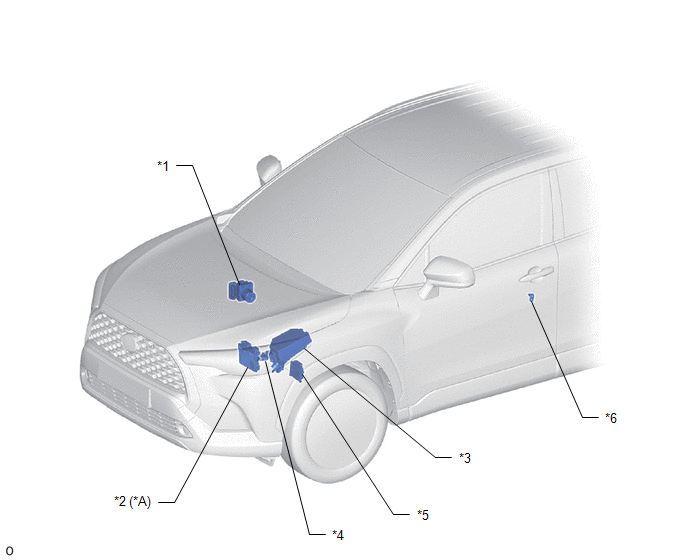

ILLUSTRATION
|
*A | for Gasoline Model |
- | - |
|
*1 | SKID CONTROL ECU (BRAKE ACTUATORASSEMBLY) |
*2 | ECM |
|
*3 | NO. 1 ENGINE ROOM RELAY BLOCK - FOG FR FUSE (w/ Fog Light) - H-LP RH FUSE - H-LP LH FUSE - H-LP HI FUSE - H-LP RH RELAY - H-LP LH RELAY - H-LP HI RELAY |
*4 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY |
|
*5 | TRANSMISSION CONTROL ECU ASSEMBLY |
*6 | FRONT DOOR COURTESY LIGHTSWITCH ASSEMBLY (LH) |

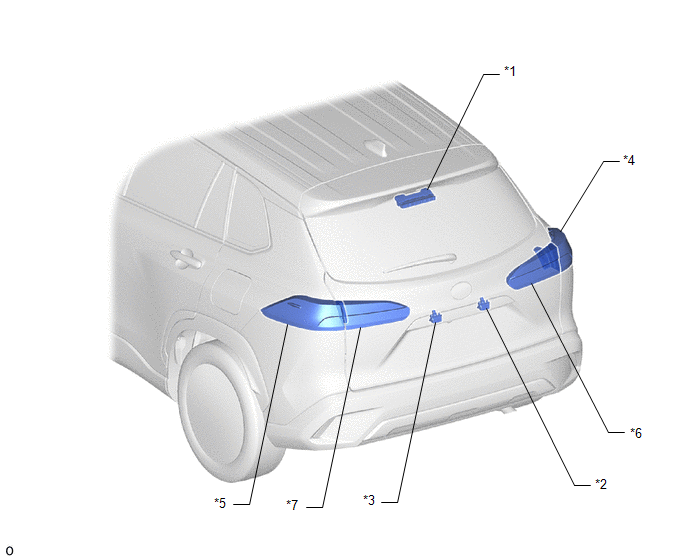

ILLUSTRATION
|
*1 | CENTER STOP LIGHT ASSEMBLY |
*2 | LICENSE PLATE LIGHT ASSEMBLY (RH) |
|
*3 | LICENSE PLATE LIGHT ASSEMBLY (LH) |
*4 | REAR COMBINATION LIGHT ASSEMBLY RH - REAR SIDE MARKER LIGHT BULB (for Bulb Type Clearance Light) |
|
*5 | REAR COMBINATION LIGHT ASSEMBLY LH - REAR SIDE MARKER LIGHT BULB (for Bulb Type Clearance Light) |
*6 | REAR LIGHT ASSEMBLY RH - BACK UP LIGHT BULB |
|
*7 | REAR LIGHT ASSEMBLY LH - BACK UP LIGHT BULB |
- | - |

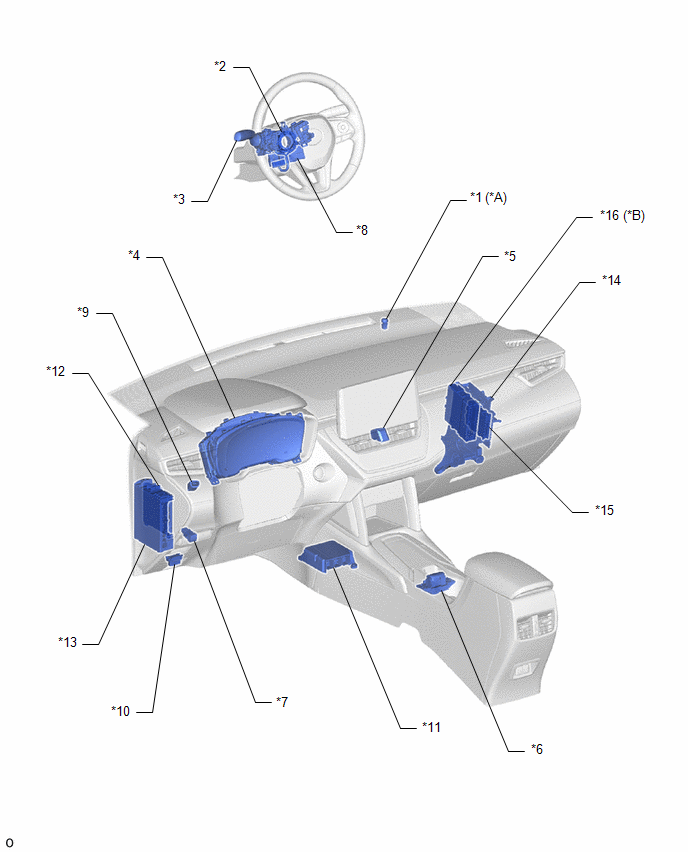

ILLUSTRATION
|
*A | w/ Automatic Light Control System |
*B | for HEV Model |
|
*1 | AUTOMATIC LIGHT CONTROL SENSOR |
*2 | STEERING WHEEL SWITCH HOUSING |
|
*3 | TURN SIGNAL SWITCH - DIMMER SWITCH - FOG LIGHT SWITCH - LIGHT CONTROL SWITCH |
*4 | COMBINATION METER ASSEMBLY |
|
*5 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY |
*6 | ELECTRIC PARKING BRAKE SWITCH ASSEMBLY |
|
*7 | STOP LIGHT SWITCH ASSEMBLY |
*8 | STEERING SENSOR |
|
*9 | AUTO HIGH BEAM SWITCH |
*10 | DLC3 |
|
*11 | AIRBAG SENSOR ASSEMBLY |
*12 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
|
*13 | POWER DISTRIBUTION BOX ASSEMBLY - ECU-DCC NO. 2 FUSE - ECU-IGR NO. 2 FUSE - TAIL FUSE - STOP FUSE - HAZ FUSE - BKUP LP FUSE - ECU-B NO. 2 FUSE - BKUP LP RELAY (w/o Smart Key System) |
*14 | NO. 2 RELAY BLOCK ASSEMBLY - FR FOG RELAY (w/ Fog Light) |
|
*15 | CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) |
*16 | HYBRID VEHICLE CONTROL ECU |
