Toyota Corolla Cross: Customize Parameters

CUSTOMIZE PARAMETERS

CUSTOMIZE LIGHTING SYSTEM (EXT)

NOTICE:

  • When the customer requests a change in a function, first make sure that the function can be customized.
  • Be sure to make a note of the current settings before customizing.
  • When troubleshooting a function, first make sure that the function is set to the default setting.

HINT:

The following items can be customized.

(a) Customizing with the GTS

(1) Enter the following menus: Customize Setting / Light Control.

(2) Select the setting by referring to the table below.

Light Control

Tester Display

Description

Default

Setting

ECU

Tail Remind Buzzer Function

Sounds a buzzer when the driver door is opened with the light control switch in the tail or head position.

Enable

$00:Disable,$01:Enable

Main Body ECU

(Multiplex Network Body ECU)

Light up Clearance Lights at Door Unlock Function

Turns on the parking lights for 15 seconds when the doors are unlocked by the smart key or the wireless key.*1

Enable

$00:Disable,$01:Enable

Main Body ECU

(Multiplex Network Body ECU)

Brightness Level Adjust (Lowering)

Changes the ambient brightness level required to dim the lights such as the indicator lights of the combination meter, A/C indicator light and clock.*A

Normal

$00:Normal,$01:Dark2,$02:Dark1,$03:Light1,$04:Light2

Main Body ECU

(Multiplex Network Body ECU)

Brightness Level Adjust (Canceling)

Changes the ambient brightness level required to cancel the dimming of the lights such as the indicator lights of the combination meter, A/C indicator light and clock.*B

Normal

$00:Normal,$01:Dark2,$02:Dark1,$03:Light1,$04:Light2

Main Body ECU

(Multiplex Network Body ECU)

Sensitivity Adjust

Adjusts the sensitivity of the automatic light control system.*C

Normal

$00:Normal,$01:Dark2,$02:Dark1,$03:Light1,$04:Light2

Main Body ECU

(Multiplex Network Body ECU)

Light Auto OFF Delay Setting

Keeps the headlights on for a certain period of time after turning the ignition switch off and closing all of doors with the low beam headlights on.

30sec

$00:OFF,$01:30sec,$02:60sec,$03:90sec

Main Body ECU

(Multiplex Network Body ECU)

DRL Function

Turns the DRL function on/off.*2

Enable

$00:Disable,$01:Enable

(Multiplex Network Body ECU)

  • *1: for vehicles with customize setting "Light up Clearance Lights at Door Unlock Function"
  • *2: Vehicles displaying the Item "Light Auto OFF Delay Setting" on the GTS

HINT:

The sensitivity adjustment may be difficult to confirm. Check by driving the vehicle.

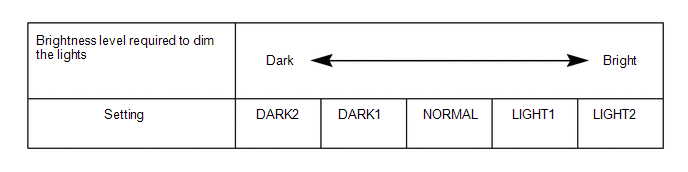

  • *A

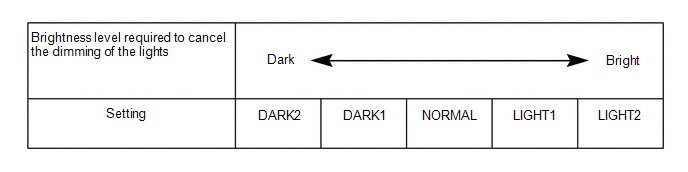

  • *B

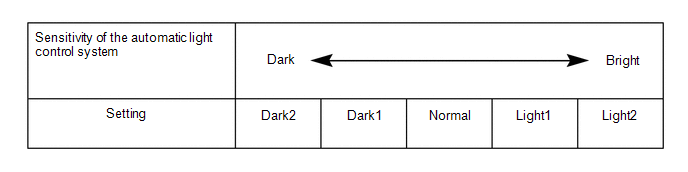

  • *C
Warning

Tester Display

Description

Default

Setting

ECU

Lane Change Flashing Times Adjust

Function to change the lane change flashing times.

3

$00:OFF,$01:3,$02:4,$03:5,$04:6,$05:7

Combination Meter Assembly

(b) Customizing with the multi-display

(1) Enter the following menus: MENU / Setup / Vehicle / Vehicle customisation / Lights settings.

(2) Select the setting by referring to the table below.

Display

Default

Content

Setting

Relevant ECU

Headlights Auto-on Sensitivity

0

Adjusts the sensitivity of the automatic light control system.*A

-2, -1, 0, +1 or +2

Main Body ECU (Multiplex Network Body ECU)

Headlight Auto-off Timer

30 sec.

Keeps the headlights on for a certain period of time after turning the ignition switch off and closing all of doors with the low beam headlights on.

Off, 30 sec., 60 sec. or 90 sec.

Main Body ECU (Multiplex Network Body ECU)

Daytime Running Lights*1

On

Turns the DRL function on/off.

On or Off

Main Body ECU (Multiplex Network Body ECU)

Exterior Light Auto-off Timer

15 sec.

Changes the lighting time of the welcome light illuminations.

Off, 7.5 sec., 15 sec. or 30 sec.

Main Body ECU (Multiplex Network Body ECU)

HINT:

The sensitivity adjustment may be difficult to confirm. Check by driving the vehicle.

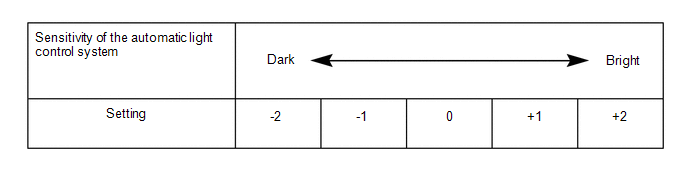

  • *A
