Toyota Corolla Cross: Parts Location
PARTS LOCATION

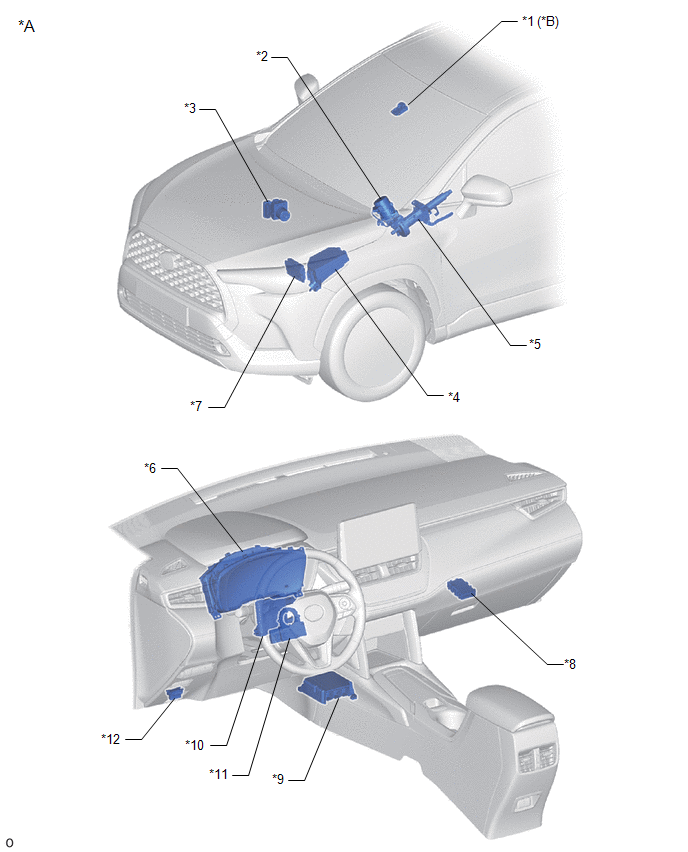

ILLUSTRATION
|
*A |
for Gasoline Model |
w/ Toyota Safety Sense |
|
|
*1 |
FORWARD RECOGNITION CAMERA |
*2 |
POWER STEERING ECU ASSEMBLY - POWER STEERING MOTOR |
|
*3 |
BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
*4 |
NO. 1 ENGINE ROOM RELAY BLOCK - EPS FUSE |
|
*5 |
ELECTRIC POWER STEERING COLUMN SUB-ASSEMBLY - TORQUE SENSOR |
*6 |
COMBINATION METER ASSEMBLY |
|
*7 |
ECM |
*8 |
CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) |
|
*9 |
AIR BAG ECU ASSEMBLY |
*10 |
AIR CONDITIONING AMPLIFIER ASSEMBLY |
|
*11 |
STEERING SENSOR |
*12 |
DLC3 |

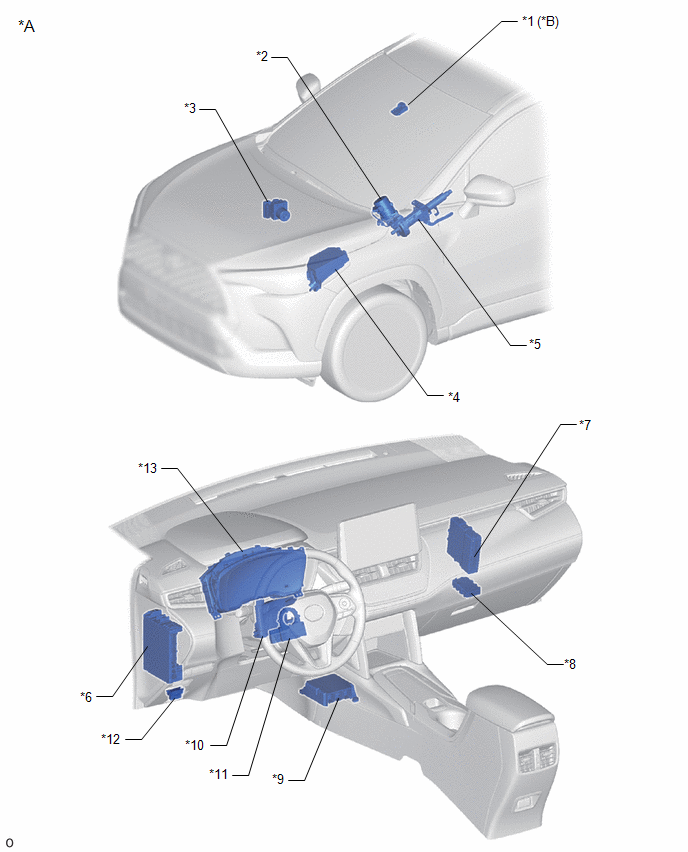

ILLUSTRATION
|
*A |
for HEV Model |
*B |
w/ Toyota Safety Sense |
|
*1 |
FORWARD RECOGNITION CAMERA |
*2 |
POWER STEERING ECU ASSEMBLY - POWER STEERING MOTOR |
|
*3 |
BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
*4 |
NO. 1 ENGINE ROOM RELAY BLOCK - EPS FUSE |
|
*5 |
ELECTRIC POWER STEERING COLUMN SUB-ASSEMBLY - TORQUE SENSOR |
*6 |
POWER DISTRIBUTION BOX ASSEMBLY - EPS-IGR FUSE |
|
*7 |
HYBRID VEHICLE CONTROL ECU |
*8 |
CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) |
|
*9 |
AIR BAG ECU ASSEMBLY |
*10 |
AIR CONDITIONING AMPLIFIER ASSEMBLY |
|
*11 |
STEERING SENSOR |
*12 |
DLC3 |
|
*13 |
COMBINATION METER ASSEMBLY |
- |
- |
