Toyota Corolla Cross (2022-2025) Service Manual / Audio & Visual & Telematics / Park Assist / Monitoring / Rear View Monitor System / Parts Location

PARTS LOCATION

ILLUSTRATION

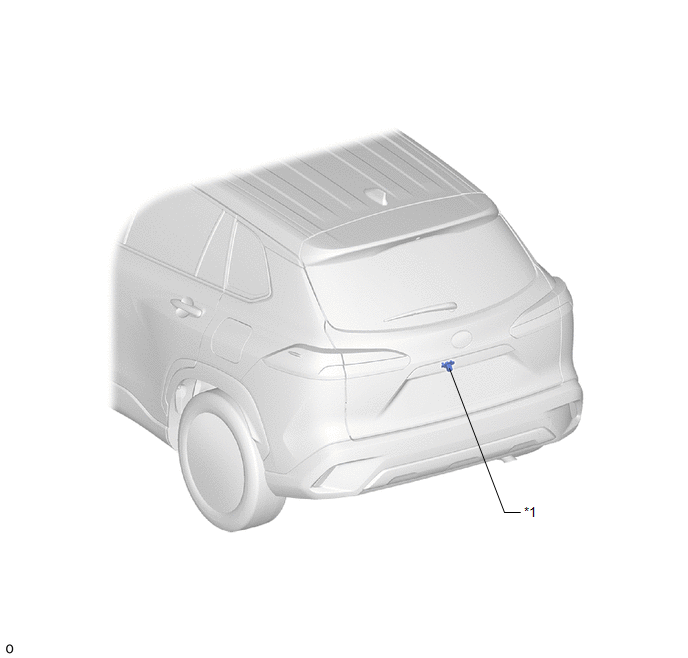

*1

REAR TELEVISION CAMERA ASSEMBLY

-

-

ILLUSTRATION

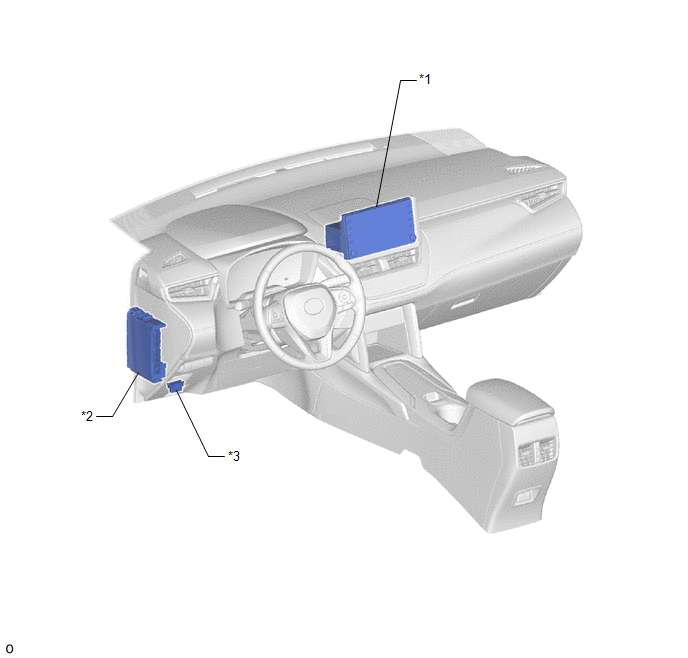

*1

RADIO AND DISPLAY RECEIVER ASSEMBLY

*2

POWER DISTRIBUTION BOX ASSEMBLY

- ECU-IGR NO. 2 FUSE

*3

DLC3

-

-
